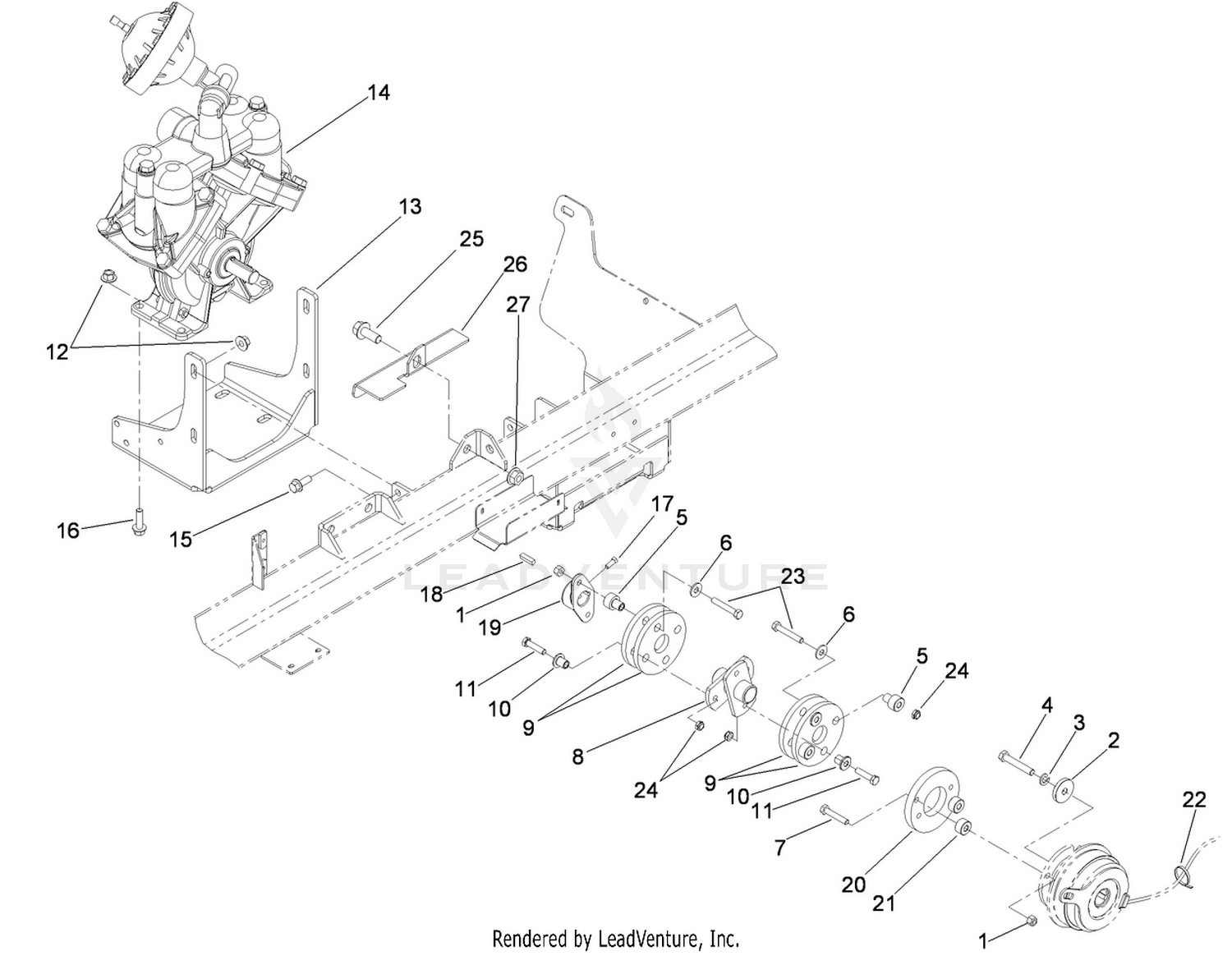

Pump Assembly
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 2 | 100-8391 | RETAINER-CLUTCH, ELECTRIC Price: $15.47 |
| 3 | 3253-5 | WASHER-LOCK Price: $0.29 |
| 4 | 3211-10 | SCREW-HH Price: $2.04 |
| 5 | 71-4410 | SPACER Price: $5.97 |
| 6 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 7 | 322-9 | SCREW-HH Price: $3.09 |
| 8 | 107-8750-03 | DRIVE-COUPLER Price: $56.03 |
| 9 | 115-4523 | COUPLING-RUBBER Price: $52.81 |
| 10 | 71-4411 | SPACER Price: $2.42 |
| 11 | 322-17 | SCREW-HH Price: $2.62 |
| 12 | 32128-43 | NUT-FLANGE Price: $0.94 |
| 13 | 119-0505-03 | BRACKET -MOUNT, PUMP Price: $84.11 |
| 14 | 106-5121 | PUMP ASM Price: $2,031.65 |
| 15 | 3234-11 | SCREW-HHF Price: $1.23 |
| 16 | 3234-24 | SCREW-HHF Price: $3.19 |
| 17 | 3241-5 | SCREW-SET Price: $0.61 |
| 18 | 5-7280 | KEY Price: $4.64 |
| 19 | 110-5227 | HUB-PUMP Price: $38.93 |
| 20 | 100-8435 | ADAPTER-CLUTCH Price: $136.60 |
| 21 | 104-8763 | SPACER Price: $1.24 |
| 22 | 3290-379 | TIE-CABLE Price: $0.31 |
| 23 | 322-10 | SCREW-HH Price: $0.70 |
| 24 | 99-6007 | NUT-LOCK, NI Price: $2.29 |
| 25 | 3234-32 | SCREW-HHF Price: $8.48 |
| 26 | 119-4950-03 | GUARD-PUMP Price: $19.59 |
