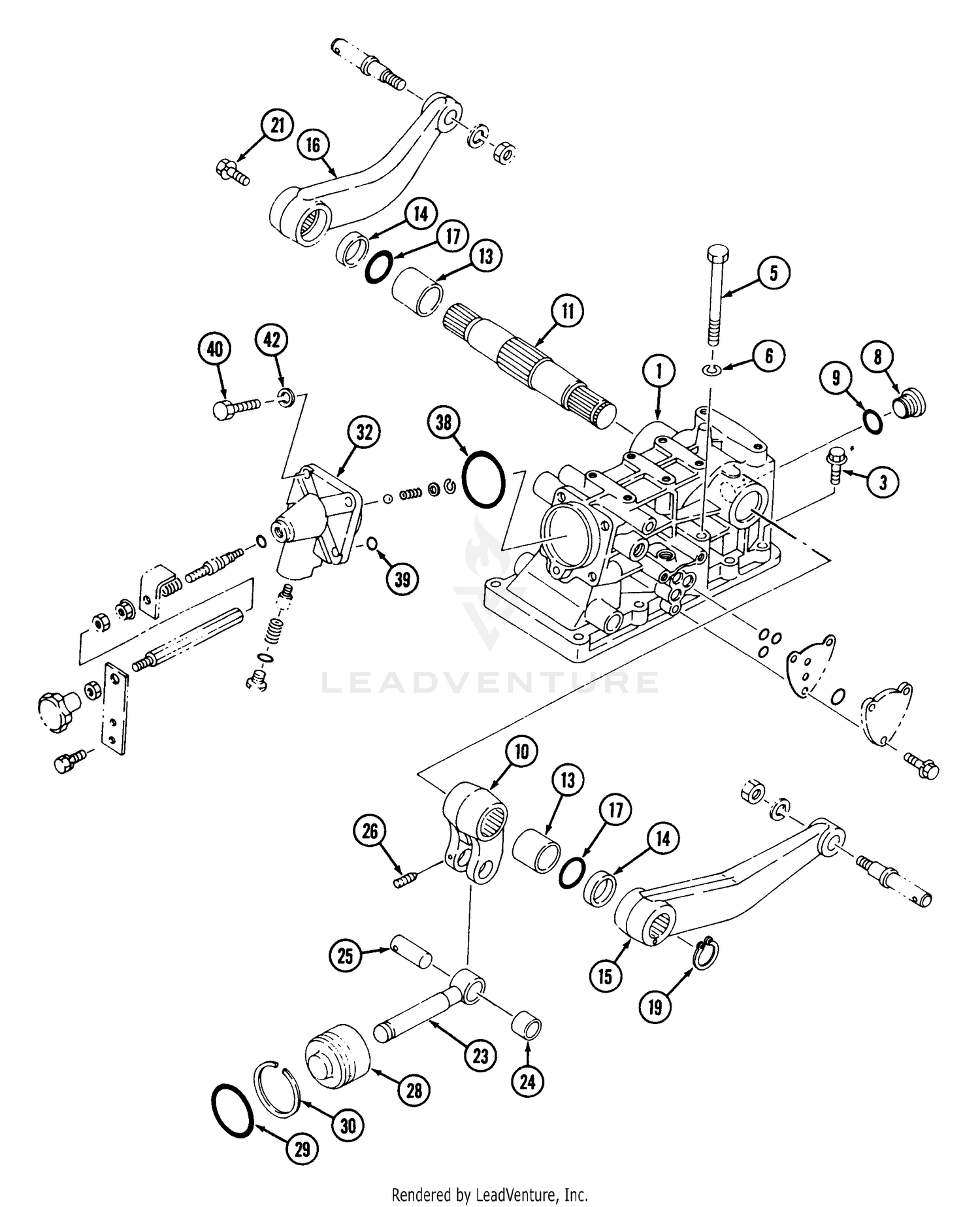

Hydraulic Lift (Part 1)
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 536329403 | CLUTCH COVER ASSY STANDARD GR This part replaces 544097901. Price: $39.99 |
| 1 | MA-19632401AG0 | CASE HYDRAULIC Not Available Price: |
| 3 | MA-F1550110045 | BOLT,W/SPRING WASH Not Available Price: |
| 5 | MA-A0550110100 | BOLT Not Available Price: |
| 6 | MA-A3600101002 | WASHER,SPRING Not Available Price: |
| 8 | MA-10072441000 | PLUG Not Available Price: |
| 9 | MA-08300100210 | O-RING Not Available Price: |
| 10 | MA-19632407000 | ARM POWER Not Available Price: |
| 11 | MA-19632409000 | SHAFT,HYDR Not Available Price: |
| 13 | MA-19632411000 | BUSHING Not Available Price: |
| 14 | MA-19632412000 | COLLAR Not Available Price: |
| 17 | MA-08300120350 | O-RING Not Available Price: |
| 19 | MA-07400003400 | SNAP RING Not Available Price: |
| 21 | MA-F1550110025 | BOLT,W/SPRING WASH Not Available Price: |
| 23 | MA-11742416002 | ROD,PISTON Not Available Price: |
| 24 | MA-07972022200 | BUSHING Not Available Price: |
| 25 | MA-19632418000 | PIN Not Available Price: |
| 26 | MA-HA130401000 | SCREW Not Available Price: |
| 28 | MA-19632419000 | PISTON Not Available Price: |
| 29 | MA-08300100550 | O-RING Not Available Price: |
| 30 | MA-08320100550 | RING, BACK UP Not Available Price: |
| 32 | MA-19632421AG0 | HEAD CYLIN Not Available Price: |
| 38 | MA-08301200600 | O-RING Not Available Price: |
| 39 | MA-08301100100 | O-RING Not Available Price: |
| 40 | MA-A9450112045 | BOLT Not Available Price: |
