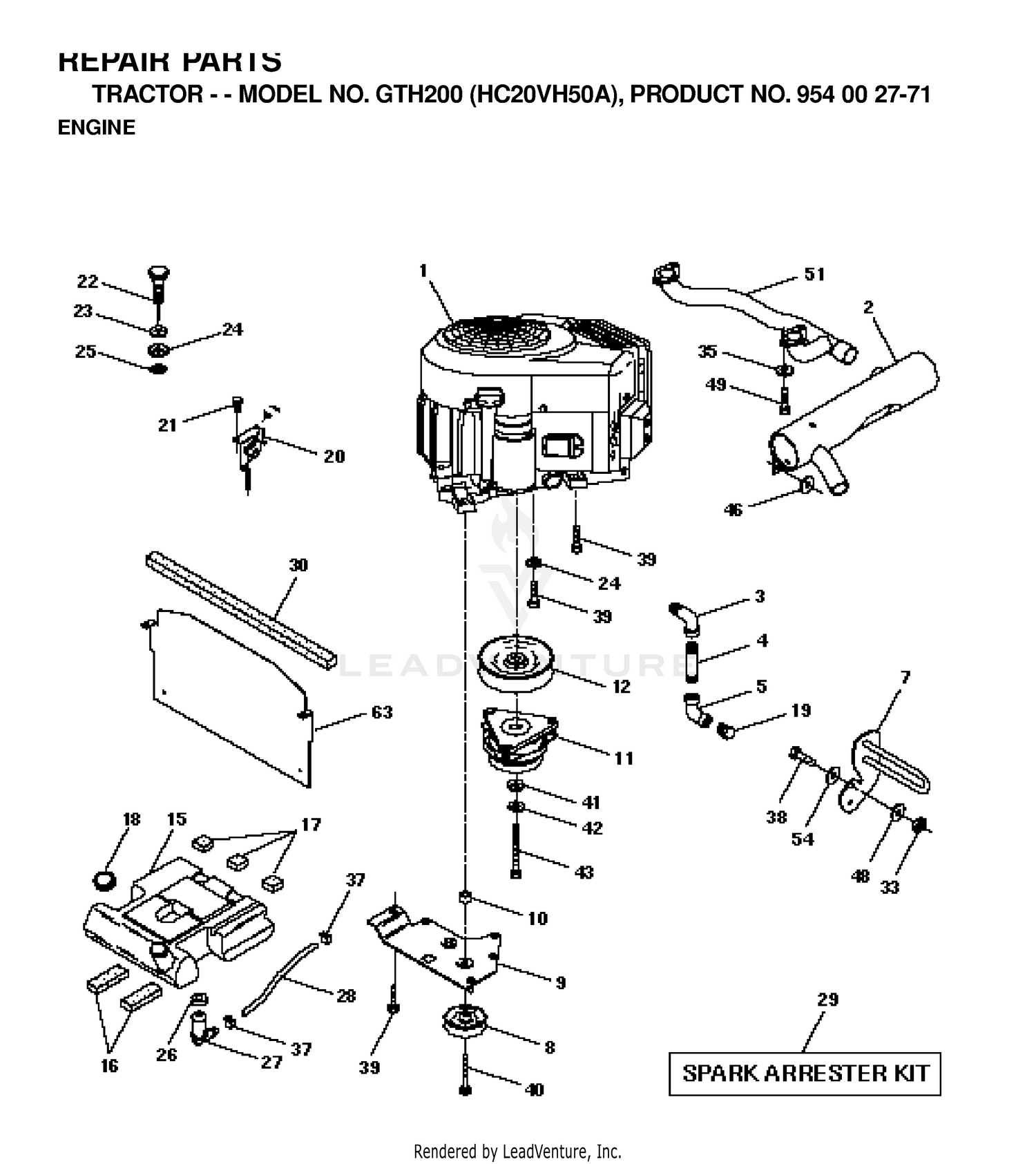

| Ref | Part Number | Description |
|---|
| 2 |
532161062 |
MUFFLER This part replaces 532144636. Price: $94.56 |
| 4 |
813280328 |
Std. Pipe Nipple 3/8 - 18 NPT x 3 1/2 Price: $4.99 |
| 5 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 7 |
532143599 |
MUFFLER GUARD Price: $20.55 |
| 8 |
532139123 |
PULLEY.IDLER.V. This part replaces 532121361. Price: $32.99 |
| 9 |
532177748 |
KEEPER ASM BELT ENGINE This part replaces 532145109. Price: $12.99 |
| 10 |
532105432 |
BUSHING Price: $4.99 |
| 11 |
532137140 |
CLUTCH.ELECT.CVX.105 FT/LB. Price: $299.99 |
| 12 |
532136907 |
PULLEY, ENGINE Price: $24.83 |
| 15 |
532151346 |
FUEL TANK 3.5G This part replaces 532141070. Price: $84.99 |
| 16 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 17 |
532106082 |
PAD-SPACER LT Price: $3.99 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 19 |
813290300 |
PLUG T Price: $3.99 |
| 20 |
532132748 |
CONTROL.THROT.RH.BLK.FLG.44.75 This part replaces 532132747. Price: $20.99 |
| 21 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 22 |
532132781 |
CHOKE CONTROL This part replaces 532132782. Price: $22.99 |
| 24 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 25 |
873610600 |
NUT Price: $2.99 |
| 26 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 27 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 28 |
532008542 |
FUEL LINE 42" This part replaces 532124703. Price: $5.99 |
| 29 |
532132920 |
SPARK ARRESTOR Price: $43.09 |
| 30 |
532105037 |
FOAM-STRIP LT Price: $2.38 |
| 33 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 35 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 38 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874780624. Price: $6.99 |
| 39 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 817490624. Price: $6.99 |
| 40 |
817490652 |
Screw Thdrol 3/8 - 16 X 3 - 1/4 Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 43 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 871170768. Price: $2.99 |
| 46 |
596140201 |
Washers This part replaces 819131616. Price: $2.99 |
| 48 |
819132007 |
Washer 13/32 x 1-1/4 x 7 Ga. Price: $3.99 |
| 49 |
532144476 |
BOLT Price: $2.99 |
| 51 |
532140805 |
EXHAUST PIPE Price: $105.86 |
| 54 |
819131414 |
WASHER Price: $3.99 |
| 63 |
532141947 |
SHIELD.HEAT.VGT. Price: $13.99 |
