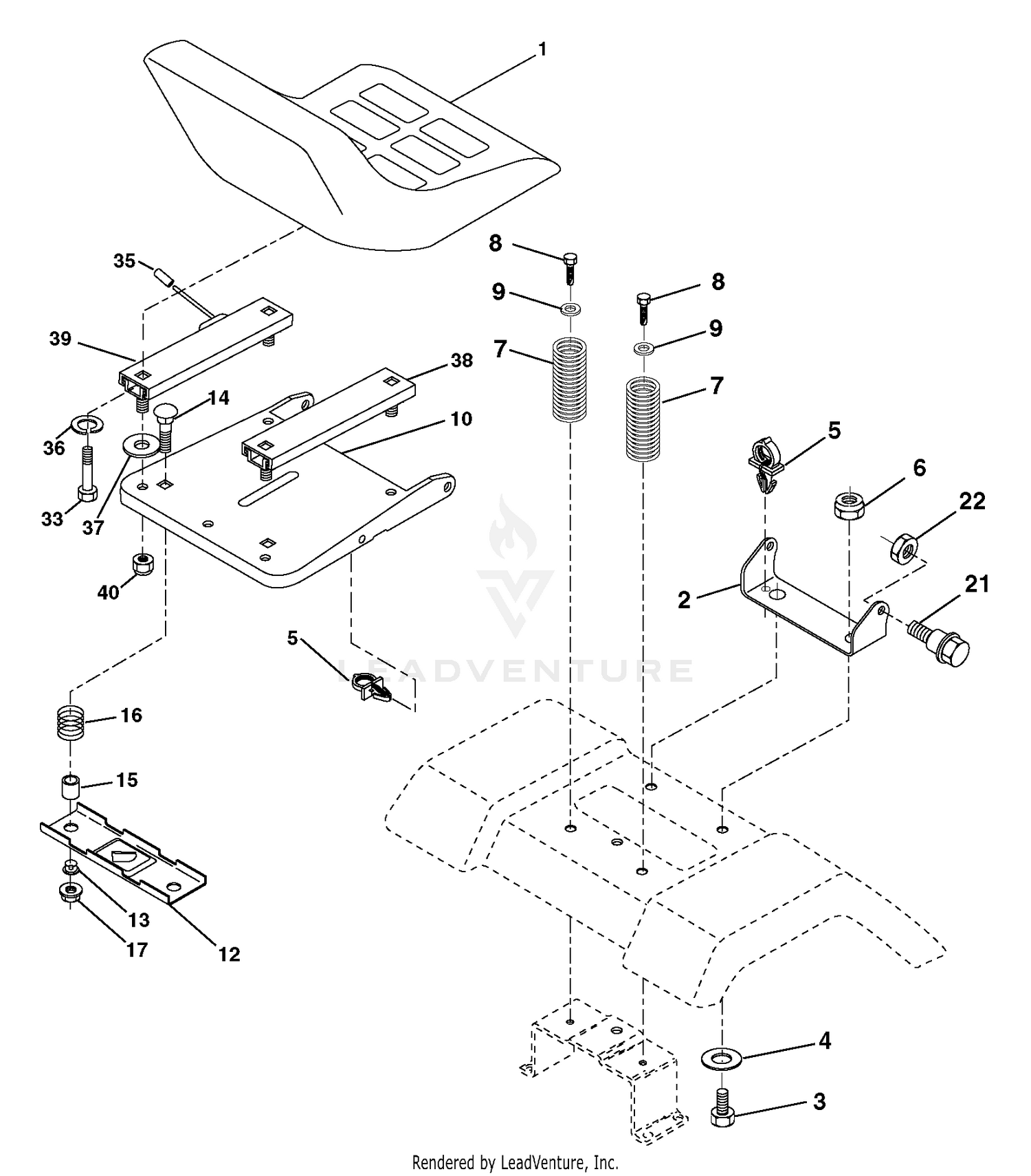

| Ref | Part Number | Description |
|---|
| 1 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532184995. Price: $219.99 |
| 2 |
33114-040 |
SCREW-HH Price: $1.22 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 3 |
93-5383-03 |
LEVER ASM Price: $132.62 |
| 4 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
283-62 |
PIN-CLEVIS Price: $0.61 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
33104-025 |
SCREW-HHF Price: $6.47 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
33006-00 |
NUT-HF Price: $1.22 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
323-44 |
SCREW-HH Price: $3.69 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532182493. Price: $17.99 |
| 10 |
95-5697 |
BRACKET - MNT Price: $541.48 |
| 11 |
95-2618 |
HOUSING Price: $145.57 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 12 |
94-4107 |
DISCONTINUED Price: Call Us |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 13 |
94-4106 |
WASHER Price: $11.50 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 14 |
95-2616 |
DISCONTINUED Price: Call Us |
| 15 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 15 |
95-5698 |
PAD ASM Price: $80.49 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 16 |
93-5431 |
TIRE (25X10.5-15) 6-PLY Price: $179.98 |
| 16 |
95-2638 |
TIRE (24X13-12) 4-PLY Price: $196.71 |
| 17 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
93-5268 |
NUT-LUG Price: $2.20 |
| 19 |
106-1016 |
RIM-WHEEL This part replaces 98-2374. Price: $296.39 |
| 19 |
93-5548 |
WHEEL Price: $333.18 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 21 |
93-5958 |
BRAKE-ROTOR Price: $210.45 |
| 22 |
33116-110 |
SCREW-HH Price: $1.97 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 23 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 24 |
93-5036-03 |
PLATE-AXLE Price: $16.24 |
| 26 |
95-2630 |
AXLE Price: $17,427.83 |
| 27 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 28 |
93-5306 |
BRACKET-TRANSAXLE Price: $10.58 |
| 29 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 30 |
93-5977-03 |
DISCONTINUED Price: Call Us |
| 31 |
93-4869-03 |
BRACKET-SWITCH Price: $17.95 |
| 32 |
94-3429 |
SWITCH-BALL Price: $133.07 |
| 33 |
3254-5 |
WASHER-LOCK Price: $0.49 |
| 33 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 35 |
532181505 |
CAP.VINYL.YELLOW.BUBBLE ASM Price: $2.99 |
| 36 |
810010500 |
WASHER Price: $3.99 |
| 37 |
596039901 |
Washers This part replaces 819111012. Price: $2.99 |
| 38 |
532177947 |
TRACK SLIDE, SEAT(R) Price: $119.99 |
| 39 |
532177946 |
TRACK SLIDE, SEAT(L) Price: $59.99 |
