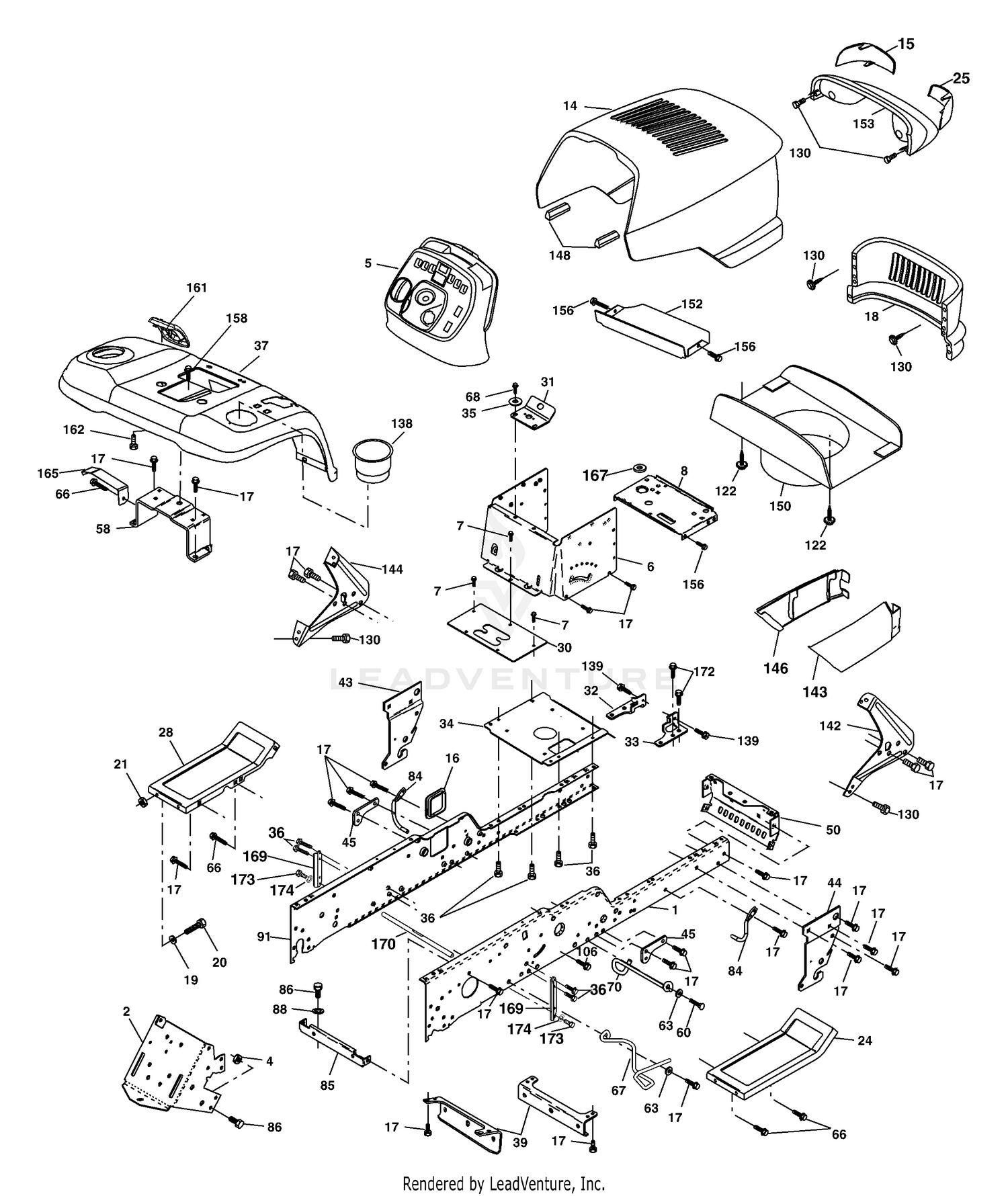

| Ref | Part Number | Description |
|---|
| 1 |
22-8330 |
PLUG Price: $64.59 |
| 1 |
532180375 |
Rail, Frame RH Price: $59.99 |
| 2 |
237-42 |
O-RING Price: $2.78 |
| 2 |
532175282 |
Drawbar, Gt Price: $55.99 |
| 3 |
22-8340 |
SPRING Price: $19.09 |
| 4 |
22-8350 |
BALL Price: $12.28 |
| 4 |
873680700 |
Nut, Crownlock Hex 7/16-14 unc Price: $2.99 |
| 5 |
22-8370 |
SEAT-VALVE Price: $88.05 |
| 5 |
532196094 |
DASH STEALTH This part replaces 532196137. Price: $80.99 |
| 6 |
22-8360 |
PIN Price: $43.02 |
| 6 |
5321578-82 |
Dsh, Lower Vgt One Piece Price: $29.99 |
| 7 |
539990071 |
HCS.1/4-20.X1/2 This part replaces 817720408. Price: $1.99 |
| 8 |
22-8420 |
SPOOL Price: $437.22 |
| 8 |
532185518 |
KIT, SUPPORT, BATTERY This part replaces 532184668. Price: $28.65 |
| 9 |
22-8500 |
O-RING Price: $18.87 |
| 10 |
22-8380 |
RETAINER Price: $17.86 |
| 11 |
22-8410 |
SPRING Price: $17.61 |
| 12 |
23-3030 |
SPACER Price: $33.93 |
| 13 |
22-8480 |
RING-SNAP Price: $49.87 |
| 14 |
532188208 |
HOOD.ASM.STEALTH.STV.2004 This part replaces 532190055. Price: $134.99 |
| 15 |
532161841 |
Lens LH Price: $20.99 |
| 16 |
532121794 |
Cover, Access Price: $3.99 |
| 17 |
817000612 |
Screw 3/8-16 x 3/4 Zc Price: $2.99 |
| 18 |
532182873 |
Grille Price: $140.99 |
| 19 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 20 |
874780616 |
Bolt Fin Hex 3/8-16 x 1 Gr. 5 Price: $3.99 |
| 21 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 24 |
532182508 |
FOOTREST.RH This part replaces 532181058. Price: $17.99 |
| 25 |
532161842 |
Lens RH Price: $44.99 |
| 28 |
532182507 |
FOOTREST.LH This part replaces 532181057. Price: $17.99 |
| 30 |
532148411 |
Saddle, Slkscr Vgt Price: $4.99 |
| 31 |
532161419 |
Bracket Support 1-pc Price: $4.99 |
| 32 |
532161327 |
Bracket, Pivot Chassis Lh Price: $4.99 |
| 33 |
532161326 |
Bracket, Pivot Chassis Rh Price: $3.99 |
| 34 |
532177018 |
Plate Asm Engine Chassis Price: $26.99 |
| 35 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.02 |
| 36 |
532171877 |
Bolt 5/16-18 unc x 3/4 This part replaces 817060512. Price: $3.99 |
| 37 |
532194868 |
Fender Price: $106.99 |
| 39 |
532175278 |
Bracket, Axle Front Price: $8.99 |
| 43 |
532136939 |
Bracket, Spnsn Front Lh Price: $11.99 |
| 44 |
532136940 |
Bracket, Spnsn Front Rh Price: $11.99 |
| 45 |
532187270 |
Bracket Chassis Price: $5.99 |
| 50 |
532175476 |
Bracket, Chassis Front Price: $12.99 |
| 58 |
532183569 |
Bracket Fender Price: $9.99 |
| 60 |
817060620 |
Screw 3/8-16 x 1-1/4 Price: $3.99 |
| 63 |
819131612 |
Washer 13/32 x 1 x 12 Ga. This part replaces 819131614. Price: $3.99 |
| 66 |
817490608 |
Screw 3/8-16 x 1/2 Price: $3.99 |
| 67 |
532156973 |
Guide, Belt Gear Drive Price: $3.99 |
| 68 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 70 |
532188578 |
Guide, Belt Price: $4.99 |
| 84 |
532188164 |
Up Stop Price: $9.99 |
| 85 |
532193923 |
Bracket, Support Transaxle Price: $5.99 |
| 86 |
874780716 |
Bolt Fin Hex 7/16-14 unc x 1 Price: $2.99 |
| 88 |
539990247 |
LOCKWASHER.7/16 This part replaces 810040700. Price: $1.99 |
| 91 |
532180374 |
Rail, Frame Lh Price: $57.99 |
| 106 |
817580520 |
Screw Thdrol 5/16-18 x 1.25 Price: $2.99 |
| 122 |
532192512 |
Screw Wshd Hex 10-32 x 5/8 Price: $2.99 |
| 130 |
532416358 |
SCREW, NO. 10 This part replaces 532191611. Price: $2.99 |
| 137 |
874780716 |
Bolt Fin Hex 7/16-14 x1 Gr. 5 Price: $2.99 |
| 138 |
532191121 |
CUPHOLDER.TWIST.LOCK.GREY This part replaces 532194869. Price: $5.99 |
| 139 |
532179032 |
BOLT SHOULDER This part replaces 532171873. Price: $3.99 |
| 142 |
532161897 |
Bracket Dash Rh Price: $4.99 |
| 143 |
532177586 |
Skirt Grille RH Price: $24.99 |
| 144 |
532161900 |
Bracket Dash Lh Price: $4.99 |
| 146 |
532177587 |
Skirt Grille LH Price: $23.99 |
| 148 |
532164655 |
Extrusion Bumper Price: $4.99 |
| 150 |
532190309 |
Duct Heat Hood Price: $27.99 |
| 152 |
532177956 |
Shield Browning Price: $26.99 |
| 153 |
532188212 |
Light Box Asm w/Lens Price: $83.99 |
| 156 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.49 |
| 158 |
817670608 |
Screw Thdrol. 3/8-16 x 1/2 Price: $2.99 |
| 161 |
532181787 |
Console Fuel Window Price: $17.99 |
| 162 |
532142432 |
Screw Hex Wsh Hi-Lo 1/4-1/2 Price: $3.99 |
| 165 |
532183554 |
Bracket Support Tank Price: $64.99 |
| 169 |
532188598 |
Bracket Chassis Sway Price: $6.99 |
| 170 |
532194667 |
Rod Bracket Sway Brace Price: $12.99 |
| 171 |
532184672 |
Bushing Snap Price: $2.99 |
| 172 |
817490614 |
Screw Hex Thdrol. 3/8-16 x 7/8 This part replaces 817120614. Price: Call Us |
| 173 |
539976934 |
HCS.5/16-18X3/4 This part replaces 874780512. Price: $1.99 |
