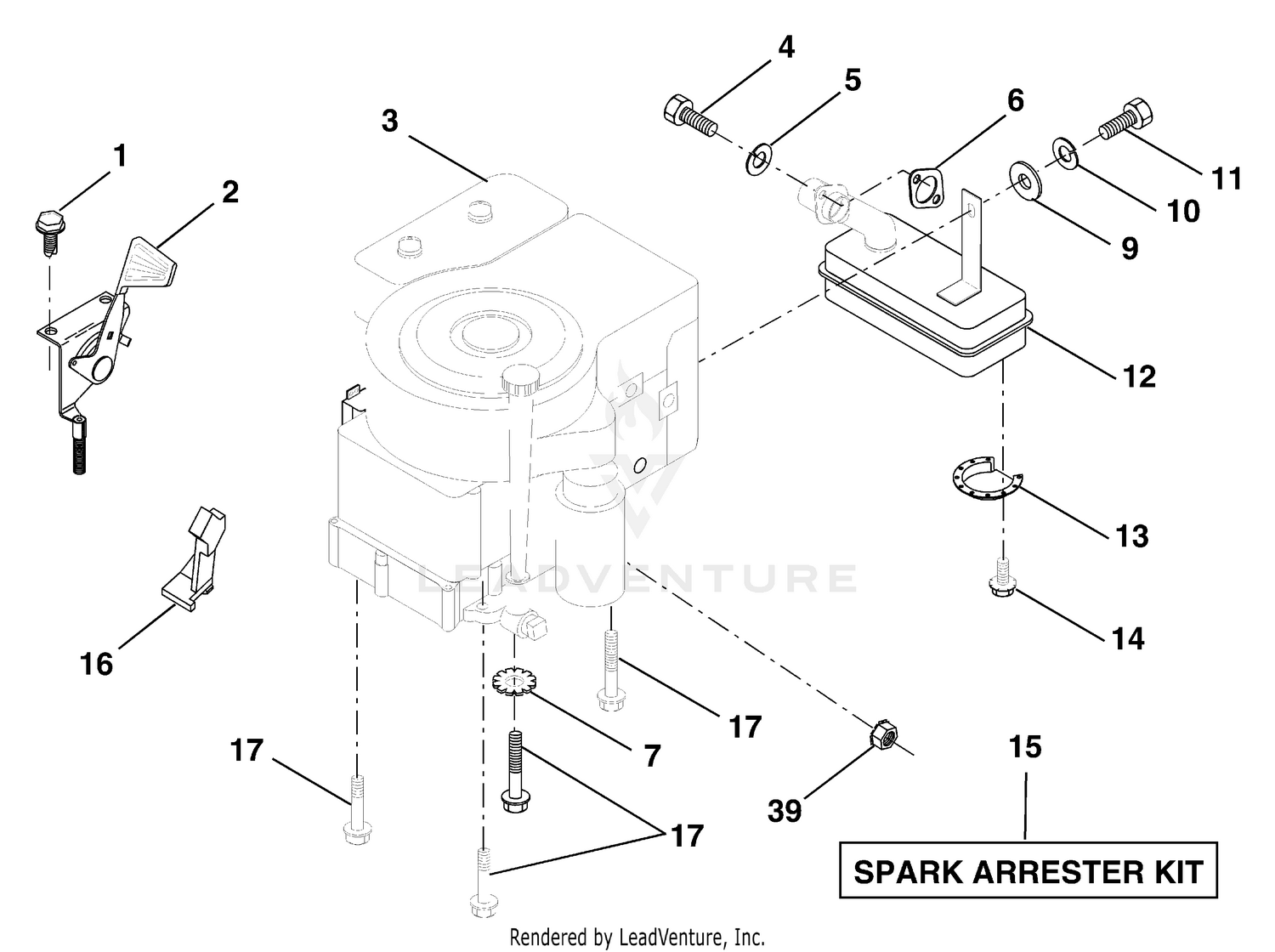

| Ref | Part Number | Description |
|---|
| 1 |
104-1255 |
Harness-Sub Price: Call Us |
| 1 |
817060408 |
SCREW Price: $4.99 |
| 2 |
37-2690 |
CAPACITOR Price: $155.98 |
| 2 |
532133025 |
CONTROL.TH/CH.RH.BLK.FLG.EEC Price: $24.99 |
| 3 |
38-2860 |
RESISTOR- 5 OHM Price: $71.95 |
| 4 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 4 |
70-1480 |
RELAY Price: $105.19 |
| 5 |
100-6560 |
BRACKET-CAPACITOR This part replaces 100-6560-03. Price: $11.89 |
| 5 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 6 |
2412-74 |
R-CLAMP Price: $2.37 |
| 6 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED Price: $8.99 |
| 7 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 7 |
92-7801 |
SHIELD-COVER, BATTERY Price: $12.83 |
| 8 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 9 |
32128-33 |
NUT-HF Price: $0.25 |
| 9 |
734115441 |
WASHER - 26X6.5X1.6 This part replaces 819101216. Price: $0.99 |
| 10 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 10 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 11 |
3217-6 |
NUT-HEX Price: $1.19 |
| 12 |
532137437 |
MUFFLER.SINGLE.B&S.12HP Price: $199.99 |
| 13 |
532101326 |
DEFL MUFFLER LTV Price: $4.01 |
| 14 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 This part replaces 817030808. Price: $3.99 |
| 16 |
532127951 |
STOP THROTTLE Price: $2.52 |
| 17 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 817490624. Price: $6.99 |
