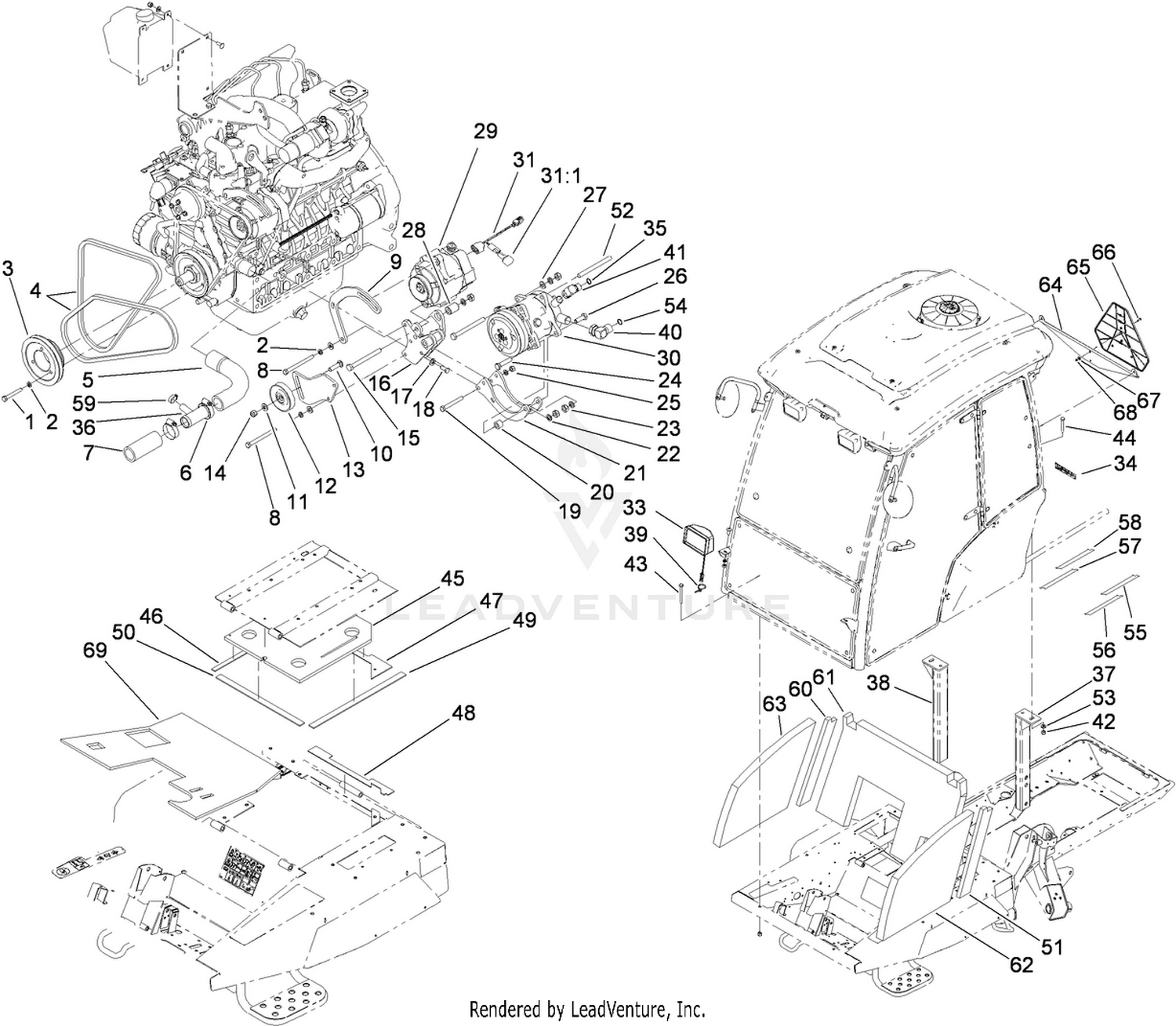

| Ref | Part Number | Description |
|---|
| 1 |
33114-060 |
SCREW-HH Price: $0.88 |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 3 |
115-8493 |
PULLEY-SINGLE Price: $322.84 |
| 4 |
117-5674 |
V-BELT Price: $44.90 |
| 5 |
119-0102 |
HOSE-RADIATOR, LOWER Price: $30.61 |
| 6 |
2412-111 |
CLAMP Price: $4.39 |
| 7 |
119-0101 |
HOSE-RADIATOR, LOWER Price: $18.57 |
| 8 |
33114-100 |
SCREW-HH Price: $1.70 |
| 9 |
117-5655-03 |
PLATE-ARM, ALTERNATOR Price: $27.40 |
| 10 |
3231-4 |
SCREW-CARR Price: $3.59 |
| 11 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 12 |
62-4530 |
PULLEY Price: $26.96 |
| 13 |
117-5656-03 |
PLATE-IDLER, BRACKET Price: $54.95 |
| 14 |
112-0236 |
NUT-LOCK Price: $0.47 |
| 15 |
33115-110 |
SCREW-HH Price: $2.92 |
| 16 |
117-5650-03 |
MOUNT-A/C Price: $388.15 |
| 17 |
33094-00 |
WASHER-PLAIN Price: $0.25 |
| 18 |
33114-020 |
SCREW-HH Price: $0.28 |
| 19 |
33114-070 |
SCREW-HH Price: $1.56 |
| 20 |
117-5673 |
SPACER Price: $46.69 |
| 21 |
117-5669-03 |
ARM-COMPRESSOR Price: $91.51 |
| 22 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 23 |
48-7960 |
NUT This part replaces 33015-00. Price: $1.40 |
| 24 |
33115-045 |
SCREW-HH Price: $0.61 |
| 25 |
33014-00 |
NUT-HEX Price: $0.25 |
| 26 |
33115-030 |
SCREW-HH Price: $0.68 |
| 27 |
33095-00 |
WASHER-FLAT Price: $0.25 |
| 28 |
117-5652 |
SPACER Price: $57.86 |
| 30 |
119-0103 |
COMPRESSOR Price: $1,361.16 |
| 31 |
114-3334 |
HARNESS-WIRE Price: $85.38 |
| 33 |
114-5928 |
HEADLIGHT ASM Price: $245.17 |
| 34 |
119-0124 |
DECAL-WARNING Price: $11.00 |
| 35 |
117-2779 |
O-RING Price: $3.85 |
| 36 |
119-0142 |
FITTING-RADIATOR Price: $57.79 |
| 37 |
119-0148-03 |
MOUNT-LH Price: $245.05 |
| 38 |
119-0149-03 |
MOUNT-RH Price: $245.05 |
| 39 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 40 |
119-0128 |
FITTING-ELBOW, 90 DEG Price: $41.31 |
| 41 |
119-0129 |
FITTING-ELBOW, 90 DEG Price: $33.41 |
| 42 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 43 |
702093 |
SCREW-HH Price: Call Us |
| 44 |
112-7264 |
SCREW-HH Price: $3.11 |
| 45 |
119-0137 |
FOAM-SEAT Price: $27.70 |
| 46 |
119-5345 |
SEAL-FOAM Price: $3.27 |
| 47 |
119-5346 |
SEAL-FOAM Price: $10.64 |
| 48 |
119-5347 |
SEAL-FOAM Price: $4.28 |
| 49 |
119-5348 |
SEAL-FOAM Price: $3.27 |
| 50 |
119-5349 |
SEAL-FOAM Price: $3.27 |
| 51 |
119-5319 |
FOAM-CAB, LEFT REAR Price: $24.41 |
| 52 |
115-8882 |
CONDUIT-CONVOLUTED Price: $1.69 |
| 53 |
107-3395 |
WASHER-HARDENED Price: $1.49 |
| 54 |
117-2780 |
O-RING Price: $3.33 |
| 55 |
119-5294 |
TUBING-CONVOLUTED Price: $15.53 |
| 56 |
119-5295 |
TUBING-CONVOLUTED Price: $22.84 |
| 57 |
119-5296 |
TUBING-CONVOLUTED Price: $16.16 |
| 58 |
119-5297 |
TUBING-CONVOLUTED Price: $15.36 |
| 59 |
2412-141 |
CLAMP-DRIVE, WORM Price: $2.40 |
| 60 |
119-5320 |
FOAM-CAB, RIGHT REAR Price: $24.41 |
| 61 |
119-5321 |
FOAM-CAB, REAR Price: $154.92 |
| 62 |
119-5322 |
FOAM-CAB, LEFT Price: $133.55 |
| 63 |
119-5323 |
FOAM-CAB, RIGHT Price: $139.99 |
| 64 |
119-5308-03 |
MOUNT-SMV Price: $37.36 |
| 65 |
92-7760 |
EMBLEM-VEHICLE, SLOW MOVING Price: $41.14 |
| 66 |
321-4 |
SCREW-HH Price: $0.99 |
| 67 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 68 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
