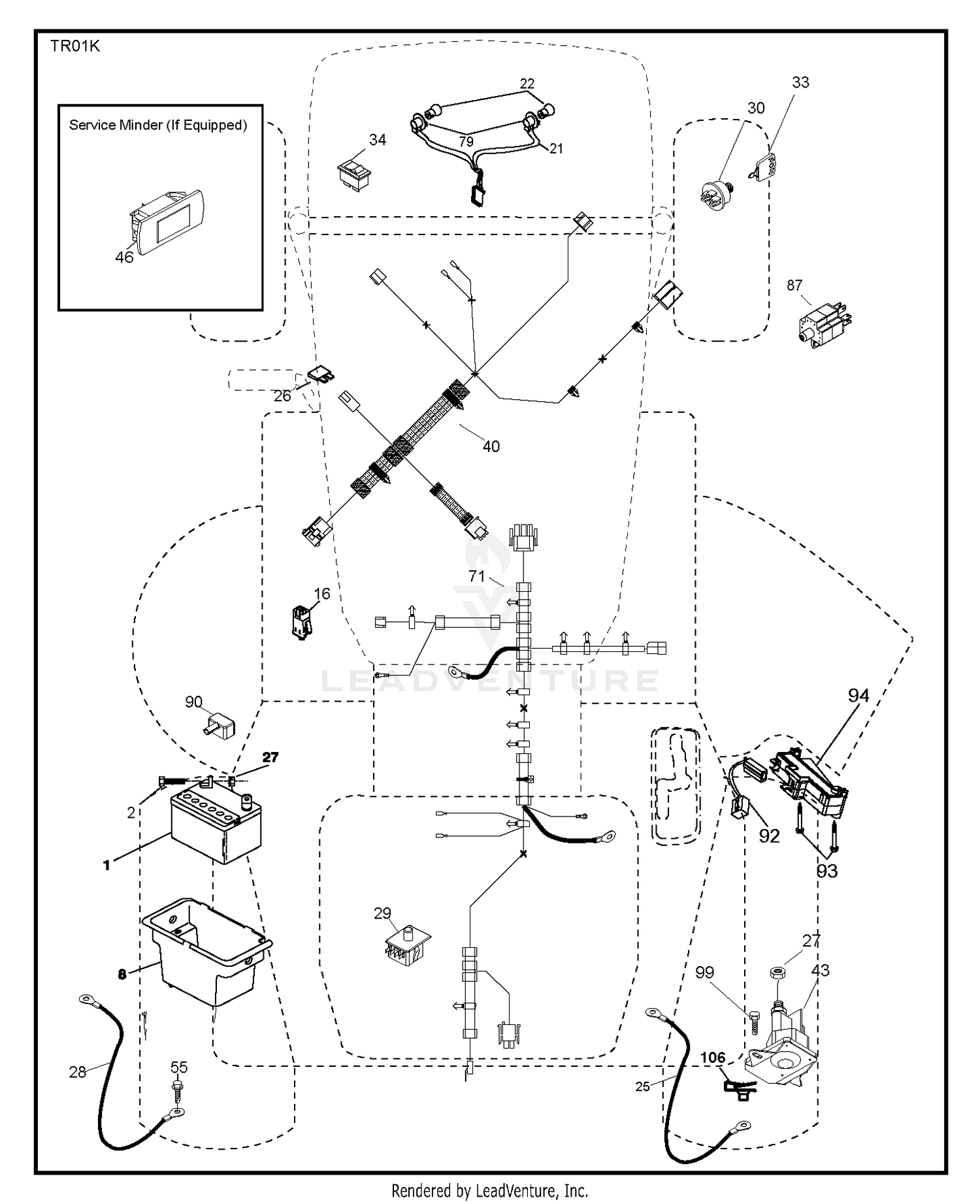

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144924. Price: $149.99 |
| 2 |
580434401 |
DRAWBAR.STGT Price: $99.99 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
532444481 |
APPLIQUE.SUBASM.GT.HUSQ.II Price: $22.99 |
| 5 |
590748829 |
DASH.UPPER.ASM.GT2.DR.EL.EFM Price: $39.99 |
| 8 |
532193228 |
BOX.BATTERY.MNT.REAR.L Price: $24.99 |
| 14 |
587483301 |
KIT.HOOD.ASM.HUSQ.GT.TEX.668 This part replaces 532441177. Price: $74.99 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 18 |
597247301 |
Grilles Price: $169.99 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 25 |
581498001 |
CABLE.BATT.RED.8GA.17 Price: $7.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
583390701 |
CABLE.GROUND.REAR.BATTERY.8GA This part replaces 532421686. Price: $8.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
532441208 |
FENDER.PNT.TX.GT.CH/FW/DL.HUSQ Price: $219.99 |
| 40 |
581023101 |
HARNESS.TEX.DASH.MAN.REAR BATT Price: $32.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 58 |
532194314 |
BRKT.SUPPORT.FNDR/TANK Price: $17.99 |
| 68 |
596030701 |
Screws Price: $2.99 |
| 71 |
581023001 |
HARNESS.TEX.CHSSIS.REAR.BATT Price: $54.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 87 |
532197802 |
SWITCH.INTRLCK.CLUTCH. Price: $14.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $4.99 |
| 92 |
532196615 |
HARNESS.PIGTAIL.CONSLE Price: $11.99 |
| 93 |
596039601 |
Bolts This part replaces 532192540. Price: $1.99 |
| 94 |
532191834 |
MODULE.REVERSE.ROS Price: $19.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 125 |
581684801 |
CLIP.FUEL.LINE Price: $2.99 |
| 130 |
596321701 |
Screws Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 146 |
581857901 |
BOLT.RDHD.SHT.SQNK.3/8-16X5/8 Price: $3.99 |
| 150 |
532439774 |
AIR.DUCT.GTV.BLACK Price: $39.99 |
| 151 |
531077401 |
SERVICE KIT PIVOT BRACKET BRAC This part replaces 532436670. Price: $37.99 |
| 152 |
532439870 |
SHIELD.BROWNING.PNT.GT.V2 Price: $14.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 161 |
532401801 |
FUEL WINDOW This part replaces 532439929. Price: $5.99 |
| 162 |
596134101 |
Screws Price: $2.99 |
| 165 |
532194330 |
SUPPORT.TANK.REAR.B/TE Price: $17.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195228 |
BUSHING STEERING Price: $4.99 |
| 180 |
582033101 |
KITS.TEX.BOLTED.CHASSIS.445559 This part replaces 593346302. Price: $229.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR Price: $84.99 |
| 183 |
595305701 |
Screws Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 191 |
586182801 |
INSERT INFLECT.RH Price: $3.99 |
| 194 |
596135701 |
GSPW Nuts Price: $2.99 |
| 196 |
532439674 |
CONSOLE.ASM.DECKLIFT.HUSQGT.DL Price: $84.99 |
| 199 |
532198259 |
PLATE.DECK.LIFT.HUSQVARNA.GT Price: $17.99 |
| 204 |
587485801 |
VENT.TOP.ASM.HUSQ.GT2 Price: $22.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION Price: $3.99 |
| 235 |
596564201 |
Spacers Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 281 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 296 |
585420501 |
LED LIGHT.LH Price: $59.99 |
| 297 |
586182901 |
INSERT REFECT LH Price: $3.99 |
| 299 |
585420401 |
LED LIGHT.RH Price: $59.99 |
| 306 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 335 |
532448204 |
COVER.LOWER.DASH.RH.BLACK Price: $24.99 |
| 336 |
532445309 |
COVER-LH.LOWER.DASH.GT2.BLACK Price: $24.99 |
| 350 |
532445143 |
CLIP.X-MAS.TREE Price: $3.99 |
| 375 |
586908201 |
BUMPER CLIP-ON. DASH 1" Price: $3.99 |
| 378 |
590849801 |
BUSHING FLANGE; PLASTIC Price: $3.99 |
| 379 |
593206902 |
CHASSIS.PLATE.REINFORCEMNT.431 Price: $4.99 |
