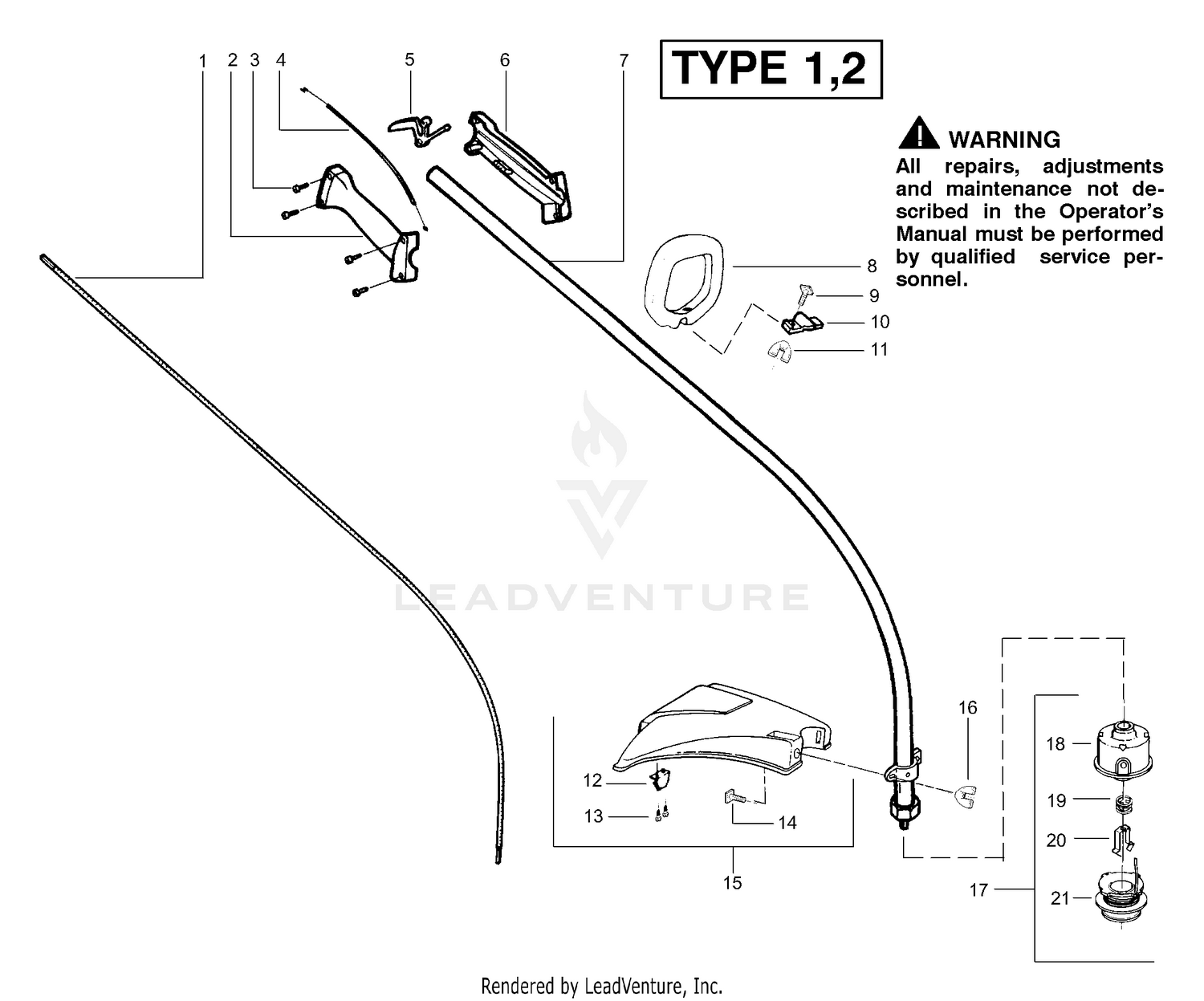

| Ref | Part Number | Description |
|---|
| 1 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 1 |
530095803 |
Shaft Flex Price: $5.99 |
| 2 |
26-1840 |
PULLEY-IDLER Price: $42.68 |
| 2 |
530038581 |
Throttle Hsg. (Right) Price: $2.99 |
| 3 |
26-1760 |
PULLEY AND HUB ASM Price: $214.86 |
| 3 |
530016349 |
Screw Throttle Hsg. Price: $1.99 |
| 4 |
26-1130 |
DISCONTINUED Price: Call Us |
| 4 |
530071548 |
Assy Throttle Cable Price: $3.99 |
| 5 |
26-1860 |
SPACER-IDLER PULLEY Price: $4.75 |
| 5 |
530038682 |
Trigger Price: $1.99 |
| 6 |
32128-21 |
NUT-HF Price: $0.39 |
| 6 |
530038580 |
Throttle Hsg. (Left) Price: $2.99 |
| 7 |
3231-27 |
SCREW-CARR Price: $0.54 |
| 7 |
530071315 |
Assy Drive Shaft Hsg. Price: Call Us |
| 8 |
26-1870-03 |
MOUNT-IDLER This part replaces 26-1870. Price: $74.13 |
| 8 |
530038584 |
Handle Assist Price: $5.96 |
| 9 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 9 |
530015820 |
Bolt Handle/Shield Price: $1.99 |
| 10 |
3217-7 |
NUT-HEX Price: $0.28 |
| 10 |
530038599 |
Clamp Handle Price: $0.99 |
| 11 |
26-1850 |
STUD-IDLER Price: $32.97 |
| 11 |
530091373 |
Nut This part replaces 530016118. Price: $1.99 |
| 12 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 12 |
530052286 |
Line Limiter Price: $1.54 |
| 13 |
49-8320 |
BEARING ASM This part replaces 26-1730. Price: $104.42 |
| 13 |
530015886 |
Screw Line Limiter Price: $1.99 |
| 14 |
21-0890 |
V-BELT Price: $32.90 |
| 14 |
530015820 |
Bolt Handle/Shield Price: $1.99 |
| 15 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 16 |
3-8514 |
WASHER-THRUST Price: $1.58 |
| 16 |
530091373 |
Nut This part replaces 530016118. Price: $1.99 |
| 17 |
84-2060 |
PULLEY AND HUB ASM This part replaces 26-9100. Price: $276.94 |
| 18 |
253-138 |
SEAL-OIL Price: $10.33 |
| 18 |
530095770 |
Assy Hub Price: $11.99 |
| 19 |
110-8297 |
BEARING ASM This part replaces 26-1830. Price: $45.97 |
| 19 |
530401958 |
Spring Compression Price: $1.99 |
| 20 |
26-1950 |
DISCONTINUED Price: Call Us |
| 20 |
530401957 |
Clip Retainer Head Price: $1.99 |
| 21 |
32146-13 |
NUT-HEX Price: $3.49 |
| 21 |
952701678 |
Accy W/E Spool w/Line This part replaces 952711594. Price: $5.95 |
| 22 |
26-7120 |
DISCONTINUED Price: Call Us |
| 23 |
26-7980 |
DISCONTINUED Price: Call Us |
| 24 |
51-2700 |
DISCONTINUED This part replaces 26-1910. Price: Call Us |
| 25 |
302-52 |
FITTING-GREASE Price: $1.49 |
| 26 |
26-1820 |
CAPSCREW Price: $37.35 |
| 27 |
26-1990 |
WASHER-BELLEVILLE Price: $16.49 |
| 28 |
29-5530-03 |
BLADE-STANDARD, 25 INCH, LH This part replaces 29-5530. Price: $40.07 |
| 29 |
26-1690 |
DISCONTINUED Price: Call Us |
| 30 |
84-2020 |
HOUSING-SPINDLE This part replaces 26-1630. Price: $297.31 |
| 31 |
325-17 |
SCREW-HH Price: $2.90 |
| 32 |
26-1880 |
SPACER-IDLER MOUNT Price: $13.91 |
| 33 |
323-12 |
SCREW-HH Price: $1.14 |
| 34 |
3231-29 |
SCREW-CARR Price: $0.68 |
| 35 |
26-7970 |
CAUTION DECAL (BLADE) Price: $14.83 |
| 36 |
84-5370 |
SPINDLE This part replaces 26-1680. Price: $259.86 |
| 37 |
68-7280 |
DECAL - BLD BOLT TORQUE This part replaces 26-7960. Price: $11.26 |
| 38 |
84-2090 |
SPACER-SPINDLE, RH This part replaces 26-1790. Price: $32.37 |
