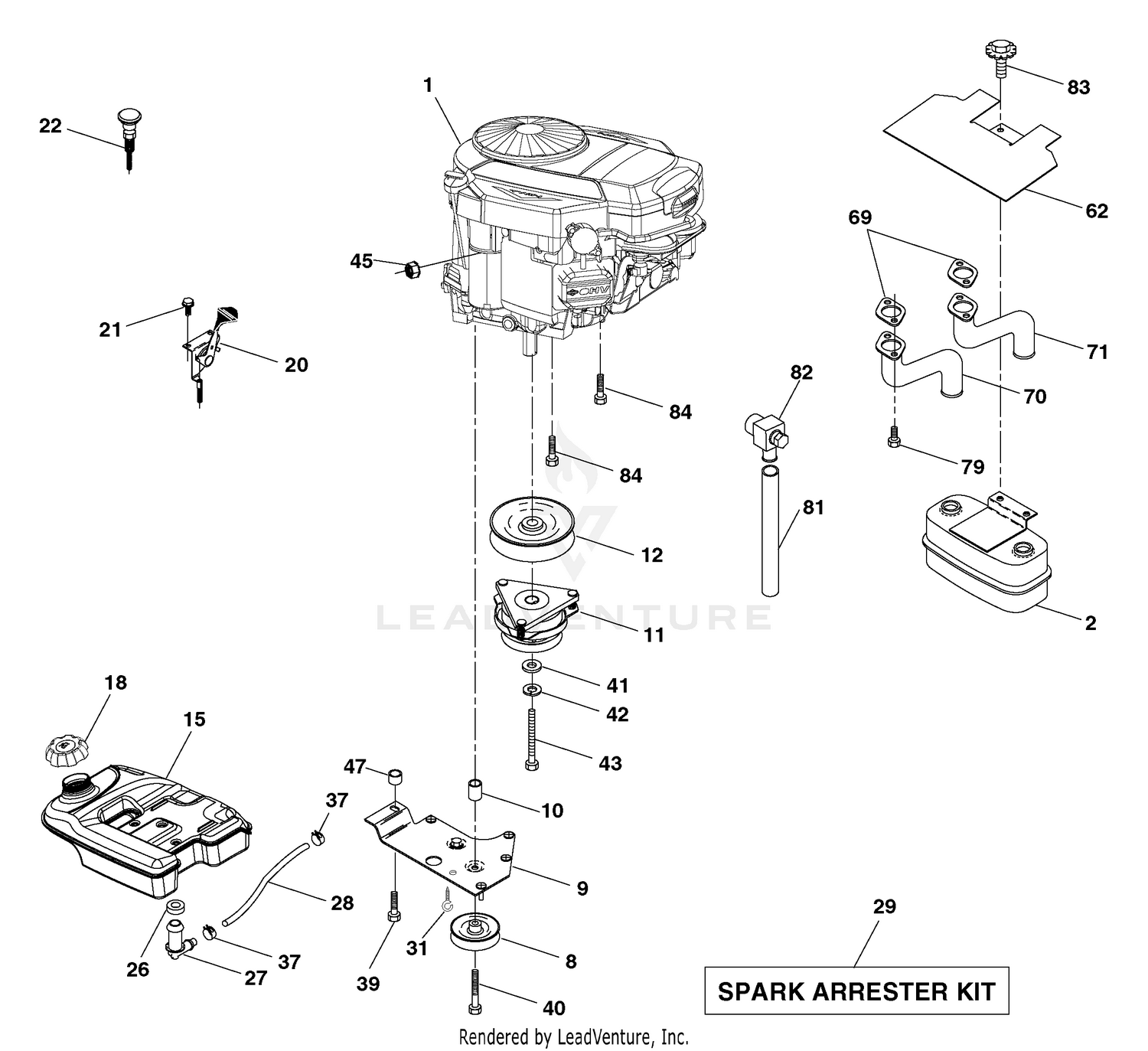

| Ref | Part Number | Description |
|---|
| 1 |
233-21 |
KNOB Price: $12.99 |
| 2 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 3 |
38-3400 |
GUARD-RUBBER Price: $8.02 |
| 4 |
21-8640 |
LATCH-LEVER, VALVE Price: $33.47 |
| 5 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 6 |
21-9010 |
LEVER-VALVE, PIVOT MOUNT Price: $28.78 |
| 7 |
321-24 |
SCREW-HH This part replaces 321-23. Price: $2.31 |
| 8 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 8 |
532139123 |
PULLEY.IDLER.V. This part replaces 532121361. Price: $32.99 |
| 9 |
532177748 |
KEEPER ASM BELT ENGINE Price: $12.99 |
| 9 |
92-5512 |
FITTING-STR This part replaces 95-8849. Price: $21.46 |
| 10 |
532175287 |
BUSHING Price: $17.99 |
| 11 |
532179335 |
CLUTCH MZ ZTR GT.48/54"1.125" Price: $299.99 |
| 12 |
532143996 |
PULLEY ENG VGT ELECT CLUTCH Price: $37.99 |
| 15 |
532179115 |
TANK.FUEL.5.0 LEFT.FILL.YTGT Price: $89.99 |
| 18 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 20 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 21 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 26 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 27 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 28 |
532008542 |
FUEL LINE 42" This part replaces 532124703. Price: $5.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532145006 |
PUSH CLIP Price: $2.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 39 |
596564004 |
SCREW TT 3/8-16X2.31 UNC This part replaces 817490636. Price: $1.99 |
| 40 |
817490664 |
Screw TT 3/8-16 x 4 unc Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 43 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 47 |
532175288 |
BUSHING Price: $4.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
532176069 |
TUBE.EXHAUST.B&S.VGT.LH Price: $51.99 |
| 71 |
532176070 |
TUBE.EXHAUST.B&S.VGT.RH Price: $64.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532188800 |
TUBE, DRAIN, OIL Price: $2.99 |
| 82 |
532188759 |
Valve Drain Oil Price: Call Us |
| 83 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 84 |
817060624 |
SCREW 3/8-16 X 1-1/2 Price: $4.99 |
