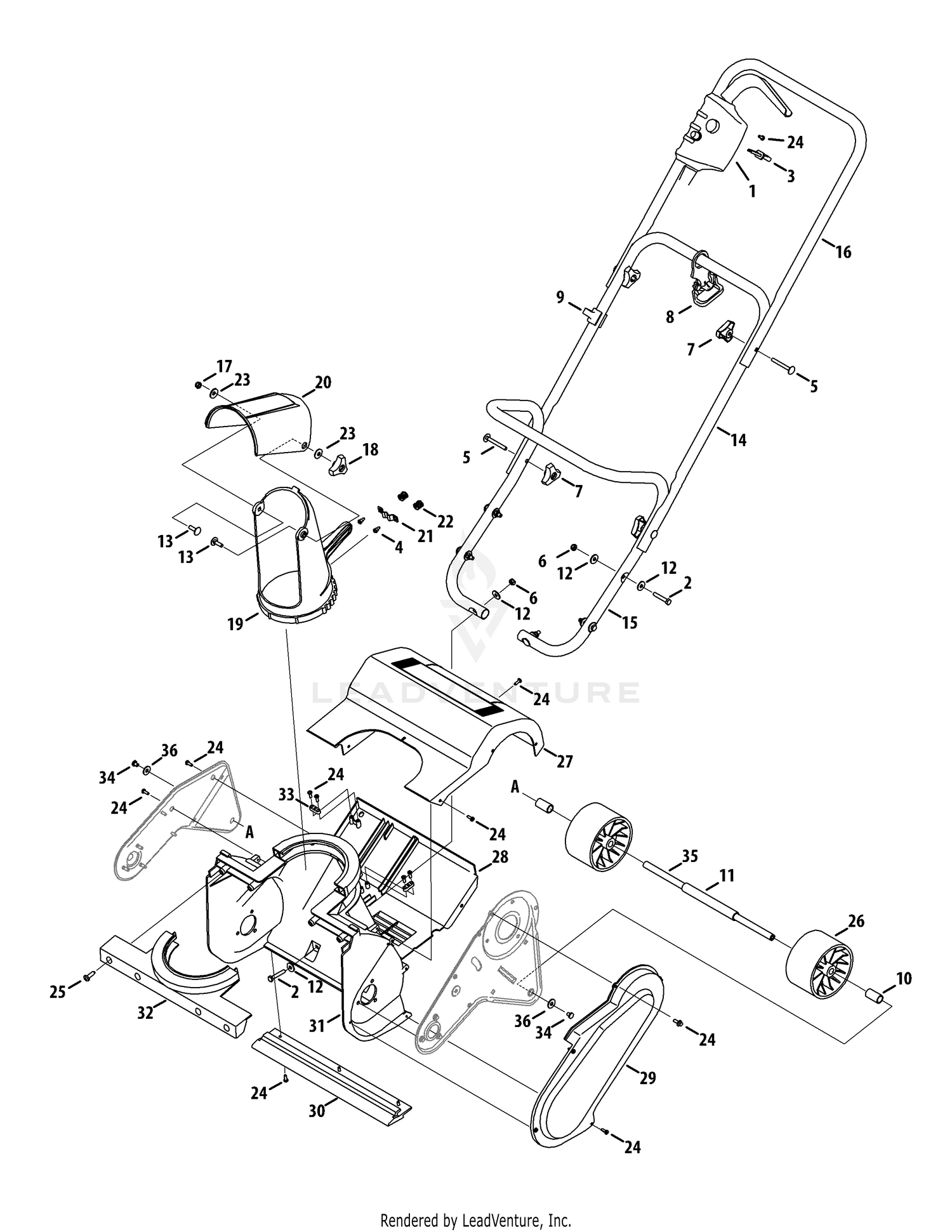

| Ref | Part Number | Description |
|---|
| 1 |
725-05152 |
SWITCH W/KEY Not Available Price: |
| 2 |
710-04197 |
SCREW M6-1X35 Not Available Price: |
| 3 |
731-06684B |
Key Price: $3.70 |
| 4 |
738-04507 |
SHOULDER SCREW Not Available Price: |
| 5 |
710-05122 |
SCREW M6-1 x 45 GR8.8 Not Available Price: |
| 6 |
712-0691 |
HEX NUT This part replaces 912-0691. Price: $6.13 |
| 7 |
720-04153 |
KNOB Not Available Price: |
| 8 |
731-07757 |
CORD RETAINER Not Available Price: |
| 9 |
731-07761 |
CABLE GUIDE Not Available Price: |
| 10 |
750-05403A |
SPACER Not Available Price: |
| 11 |
750-05405 |
SPACER Not Available Price: |
| 12 |
736-0685 |
FLAT WASHER Not Available Price: |
| 13 |
710-1687 |
Screw, Carriage, M6-1, 20.00 Price: $3.37 |
| 14 |
749-04691-0637 |
MID HANDLE Not Available Price: |
| 15 |
749-04699A |
LOWER LIFT HANDLE Not Available Price: |
| 16 |
749-04690 |
UPPER HANDLE Not Available Price: |
| 17 |
712-0691 |
HEX NUT This part replaces 912-0691. Price: $6.13 |
| 18 |
720-04153 |
KNOB Not Available Price: |
| 19 |
731-07627 |
LOWER CHUTE Not Available Price: |
| 20 |
731-07628A |
UPPER CHUTE Not Available Price: |
| 21 |
790-00466 |
CHUTE BRACKET Not Available Price: |
| 22 |
732-04874 |
COMPRESSION SPRING Not Available Price: |
| 23 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 24 |
710-05137 |
SCREW M4.2 x 1.4 x 13 Not Available Price: |
| 25 |
710-05148 |
SCREW M6.3 x 1.8 x 20 Not Available Price: |
| 26 |
731-07636 |
ROLLER WHEEL Not Available Price: |
| 27 |
731-07629A |
TOP COVER Not Available Price: |
| 28 |
731-07630A |
LOWER MOTOR COVER Not Available Price: |
| 29 |
731-07634A |
BELT COVER Not Available Price: |
| 30 |
731-07640 |
Blade, Scraper Price: $12.41 |
| 31 |
731-07682A |
AUGER HOUSING RED Not Available Price: |
| 32 |
731-07684 |
FRONT COVER RED Not Available Price: |
| 33 |
731-07722 |
CORD HOLDER BRACKET Not Available Price: |
| 34 |
710-05132 |
Screw, Hex Screw, M6 x 8mm Price: $3.49 |
| 35 |
911-05381 |
ROLLER WHEEL SHAFT Not Available Price: |
