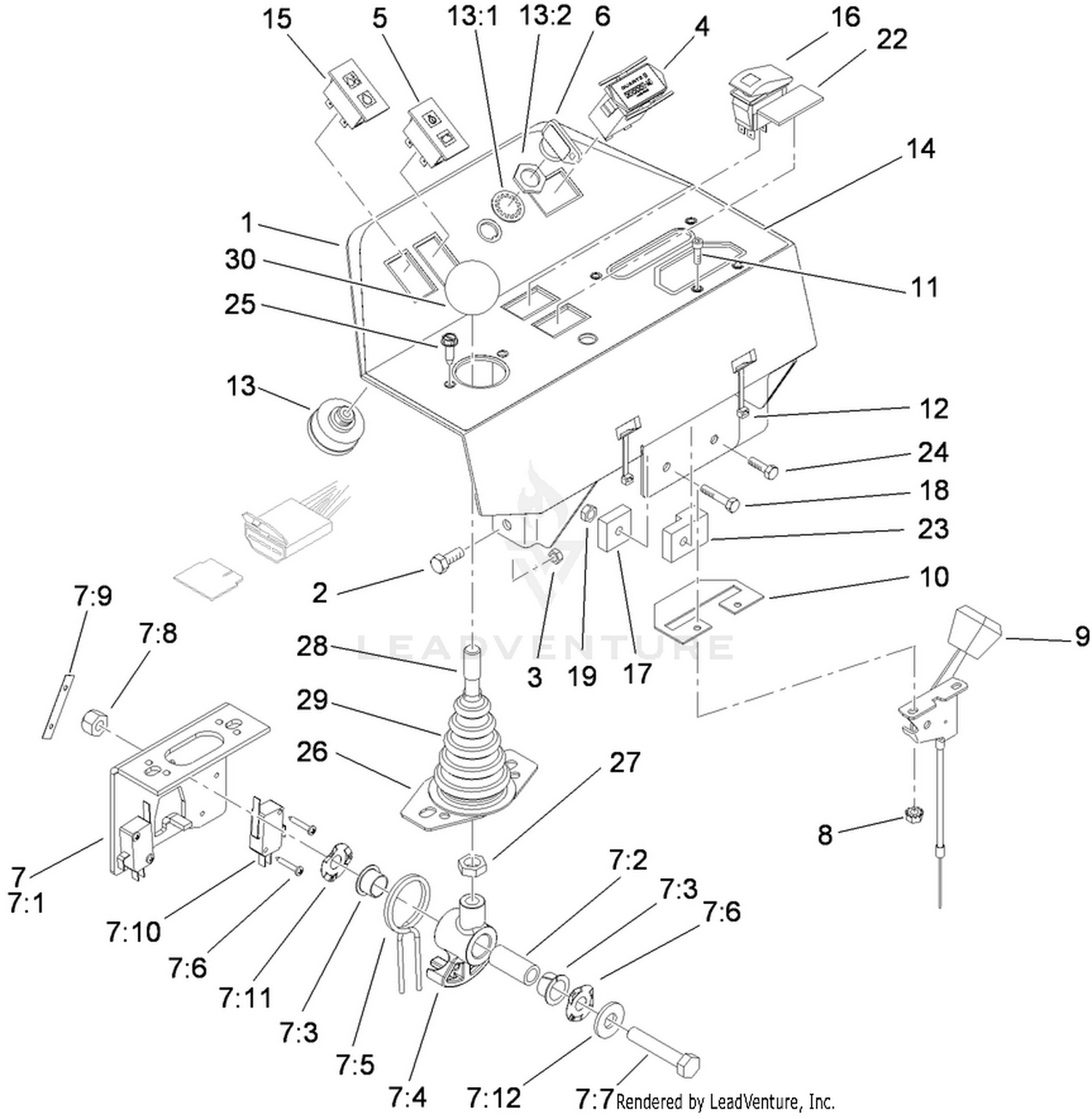

Console Assembly
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 108-6503-03 | CONSOLE ASM Price: $277.28 |
| 2 | 33114-020 | SCREW-HH Price: $0.28 |
| 3 | 33024-00 | NUT-LOCK, NI Price: $0.75 |
| 4 | 120-2244 | HOURMETER This part replaces 1-513374. Price: $48.06 |
| 5 | 100-8070 | LAMP-WARNING Price: $38.50 |
| 6 | 63-8360 | KEY-IGNITION Price: $5.29 |
| 7 | 106-4167 | JOYSTICK BRACKET ASM Price: $202.74 |
| 8 | 32149-8 | NUT-KEPS Price: $0.88 |
| 9 | 99-8150 | CONTROL-THROTTLE Price: $37.49 |
| 10 | 112-9179 | PLATE-COVER Price: $7.23 |
| 11 | 3273-26 | SCREW-HSH Price: $0.41 |
| 12 | 3290-378 | TIE-CABLE Price: $0.79 |
| 13 | 27-2360 | SWITCH Price: $46.56 |
| 14 | 107-9529 | DECAL-INSTRUMENT Price: $57.90 |
| 15 | 100-8071 | LAMP-WARNING Price: $38.50 |
| 16 | 100-8072 | SWITCH Price: $94.07 |
| 17 | 92-2538 | MODULE-TIMER Price: $160.43 |
| 18 | 33113-030 | SCREW-HH Price: $0.54 |
| 19 | 33023-00 | NUT-LOCK Price: $0.25 |
| 22 | 99-7420 | PLUG-HOLE Price: $7.64 |
| 23 | 115-2292 | TIMER-GLOW PLUG Price: $331.94 |
| 24 | 33113-020 | SCREW-HH Price: $0.26 |
| 25 | 32144-19 | SCREW-SHWH Price: $0.89 |
| 26 | 112-9181 | PLATE-BOOT Price: $4.90 |
| 27 | 3218-3 | NUT-JAM Price: $0.25 |
| 28 | 105-8288 | ROD-JOYSTICK Price: $26.49 |
| 29 | 93-5961 | BOOT-LEVER Price: $56.35 |
