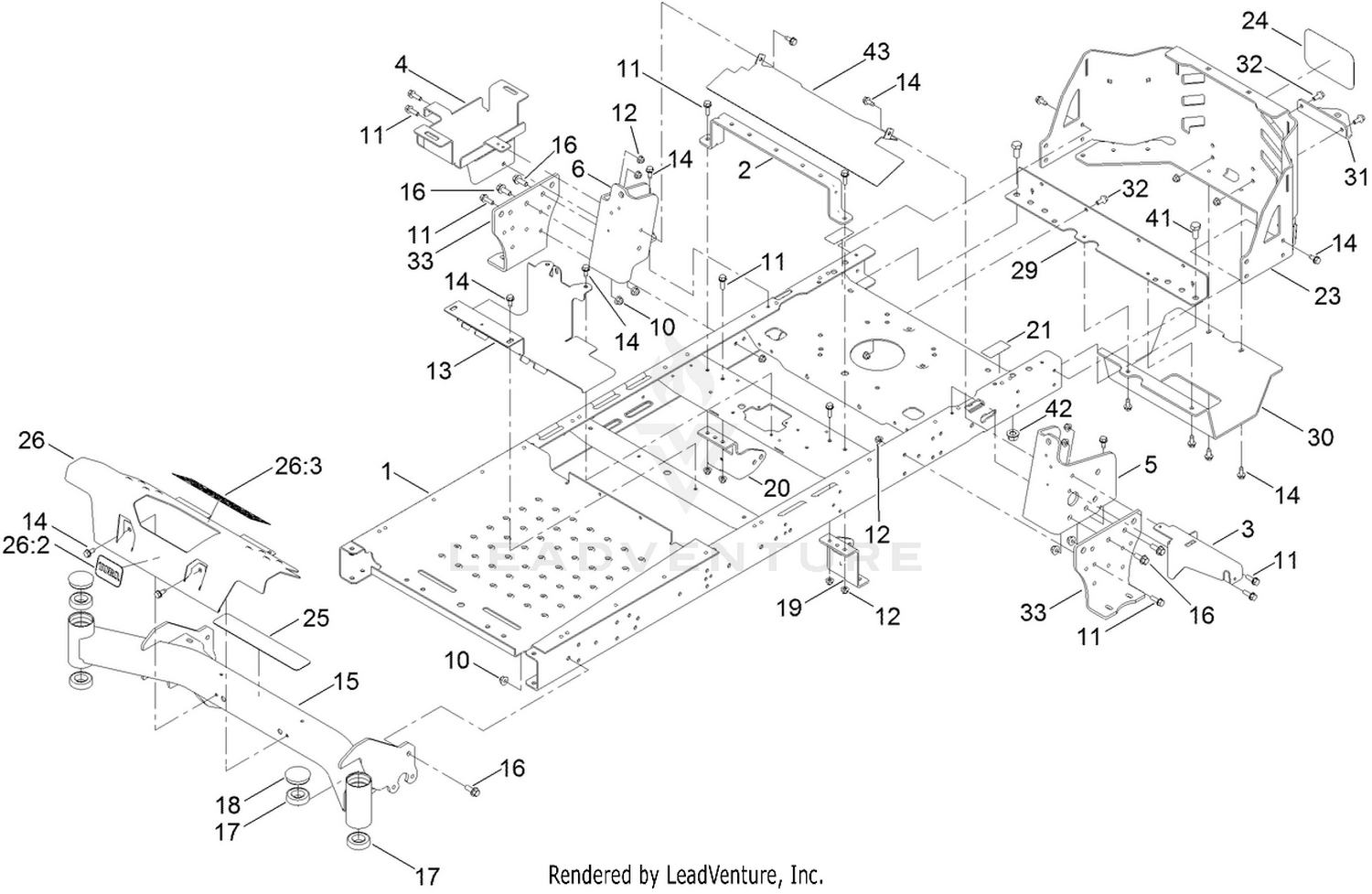

Frame Assembly
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 133-1191-01 | FRAME ASM Price: $292.15 |
| 2 | 135-0687-03 | BRACE-SEAT, REAR (WIDE) Price: $13.61 |
| 3 | 133-7051-03 | BRACKET-SUPPORT, POD (LH) Price: $19.02 |
| 4 | 136-4185-03 | TRAY-BATTERY Price: $50.81 |
| 5 | 137-5068-01 | BRACKET-MOUNTING, LH Price: $38.18 |
| 6 | 137-5069-01 | BRACKET-MOUNTING, RH Price: $38.18 |
| 10 | 119-4042 | NUT-HF, NI Price: $0.69 |
| 11 | 139-2596 | SCREW-HHF Price: $0.78 |
| 12 | 119-4041 | NUT-HF Price: $0.48 |
| 13 | 133-4485-03 | BRACKET-MOUNT Price: $40.64 |
| 14 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 15 | 133-4310-01 | AXLE-FRONT Price: $254.05 |
| 16 | 139-2597 | SCREW-HHF Price: $0.67 |
| 17 | 109-3678 | BEARING-BALL Price: $9.46 |
| 18 | 138-7200 | CAP-GREASE Price: $2.38 |
| 19 | 139-3211-01 | MOUNT-HYDRO, FRONT (LEFT) This part replaces 137-7021-01. Price: $10.06 |
| 20 | 137-7020-01 | MOUNT-HYDRO, FRONT (RIGHT) Price: $10.68 |
| 21 | 121-2989 | DECAL-BYPASS Price: $2.26 |
| 23 | 133-4431-03 | GUARD-ENGINE Price: $133.36 |
| 24 | 99-4693 | DECAL Price: $14.74 |
| 25 | 133-9253 | TREAD-STEP Price: $2.14 |
| 26 | 136-9190 | FOOTREST Price: $88.87 |
| 29 | 137-7016-01 | CROSSMEMBER-REAR, WIDE Price: $19.02 |
| 30 | 133-4429-03 | GUARD-MUFFLER Price: $38.06 |
| 31 | 117-1232-03 | BRACKET-HITCH Price: $19.74 |
| 32 | 139-2598 | SCREW-HHF Price: $0.56 |
| 33 | 133-1201-03 | MOUNT-HYDRO Price: $20.31 |
| 41 | 139-2628 | SCREW-HH Price: $1.12 |
| 42 | 139-1689 | NUT-HF Price: $1.12 |
