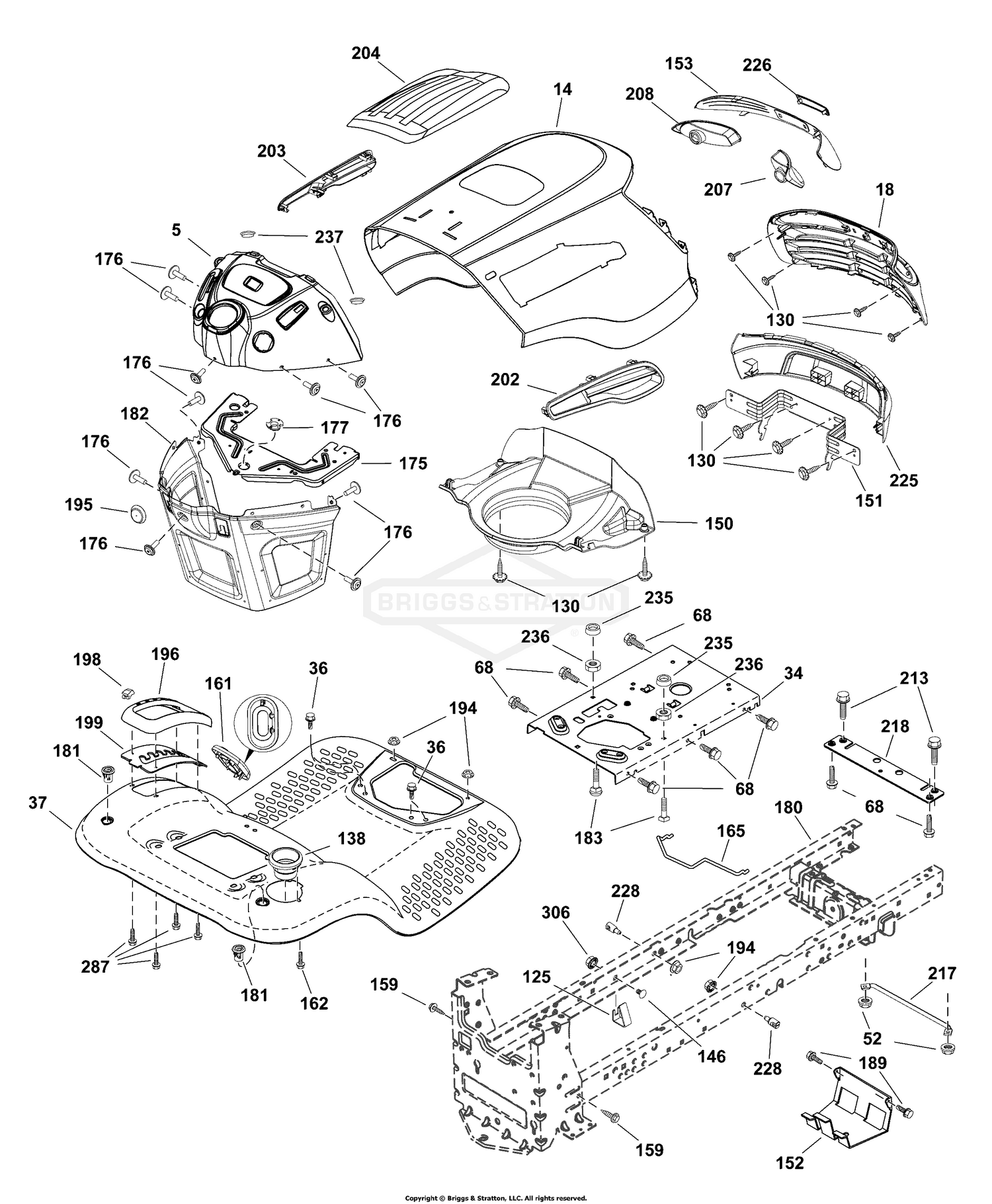

| Ref | Part Number | Description |
|---|
| 5 |
84004048 |
DASH Price: $129.99 |
| 14 |
84004049 |
HOOD Price: $167.49 |
| 18 |
84004050 |
GRILLE Price: Call Us |
| 34 |
709780 |
PLATE This part replaces 705268. Price: $83.92 |
| 36 |
709836 |
SCREW This part replaces 705324. Price: $6.55 |
| 37 |
705312 |
Fender Price: $474.28 |
| 52 |
705349 |
Nut, Hex, Crownlock 5/16-18 Price: $8.34 |
| 68 |
84004011 |
SCREW, 5/16-18 X 1/2, Thread Roll Price: $7.19 |
| 125 |
705286 |
Clip Fuel Line Price: $4.32 |
| 130 |
705233 |
Screw #10 x 0.750 BOS Thread Price: $4.05 |
| 138 |
84004156 |
CUPHOLDER Price: Call Us |
| 146 |
705288 |
Bolt Price: $5.91 |
| 150 |
84004053 |
DUCT, Air Price: Call Us |
| 151 |
705178 |
Bracket Pivot Lasr/Elte/Husqlt Price: $46.05 |
| 152 |
705129 |
Shield Browning/Debris Price: $33.92 |
| 153 |
84004054 |
LENS, Bar Pred Price: $57.99 |
| 159 |
705322 |
Screw 3/8-16 x .75 Smgml Tap/R.Z Price: $5.59 |
| 161 |
705257 |
Window Fuel Price: $10.80 |
| 162 |
705019 |
SCREW, HEX, 1/4 X 1/2 Price: $4.40 |
| 165 |
705101 |
Support Tank Rear Price: $30.73 |
| 175 |
705063 |
CROSSMEMBER Price: $45.29 |
| 176 |
705137 |
Screw #10-24X5/8 Rnd Qudrx Gim Price: $13.87 |
| 177 |
705091 |
Bushing Steering Yt/Gt Price: $11.50 |
| 180 |
705094 |
Chass Wldmt Tl 12 Ga/2Pc Price: $272.01 |
| 181 |
705433 |
Bushing Mnt Fend Crgo Blk Tex Price: $7.49 |
| 182 |
705060 |
Hex Capscrew, 5/16"-18 x 6-1/2" lg. Price: $164.29 |
| 183 |
705360 |
Bolt Full Thd 5/16-18 x 1-1/4 Price: $4.68 |
| 189 |
709742 |
BOLT This part replaces 705321. Price: $7.67 |
| 194 |
705352 |
Nut, Lock Hex Flange 5/16-18 Unc Price: $5.02 |
| 195 |
84004068 |
PLUG, Lower Dash Hole Price: $9.99 |
| 196 |
705265 |
Console Asm. Deck Lift Price: $55.57 |
| 198 |
705260 |
Indicator Deck Lift Price: $29.95 |
| 199 |
705226 |
Plate Deck Lift Price: $15.89 |
| 202 |
84004069 |
VENT, RH Side Hood Price: $56.99 |
| 203 |
84004070 |
VENT, LH Side Hood Price: $57.99 |
| 204 |
84004071 |
VENT, Top Price: $78.99 |
| 207 |
705297 |
Insert Lens Reflective RH Price: $8.44 |
| 208 |
705296 |
Insert Lens Reflective LH Price: $12.08 |
| 213 |
84005867 |
CAPSCREW, 5/16-18 X 3/4 GR. 5 ZD Price: $6.99 |
| 217 |
705180 |
Rod Pivot Hood Price: $5.44 |
| 218 |
705099 |
X-Piece Hood Stop Non/Stealth Price: $7.36 |
| 225 |
84004074 |
BUMPER, Snapper Price: $97.99 |
| 226 |
84004075 |
PLATE, Snapper Logo Price: $35.49 |
| 228 |
705088 |
Stud Fastner W/'D'anti-Rotatio Price: $11.50 |
| 235 |
705173 |
Spacer Fender Price: $5.59 |
| 236 |
705355 |
Nut Center Lock 5/16-18 Unc Price: $11.50 |
| 237 |
770340 |
Plug Mount Cargo Price: $5.29 |
| 287 |
705328 |
Screw Hex Washead 1/4-20 X 3/8 Price: $4.26 |
