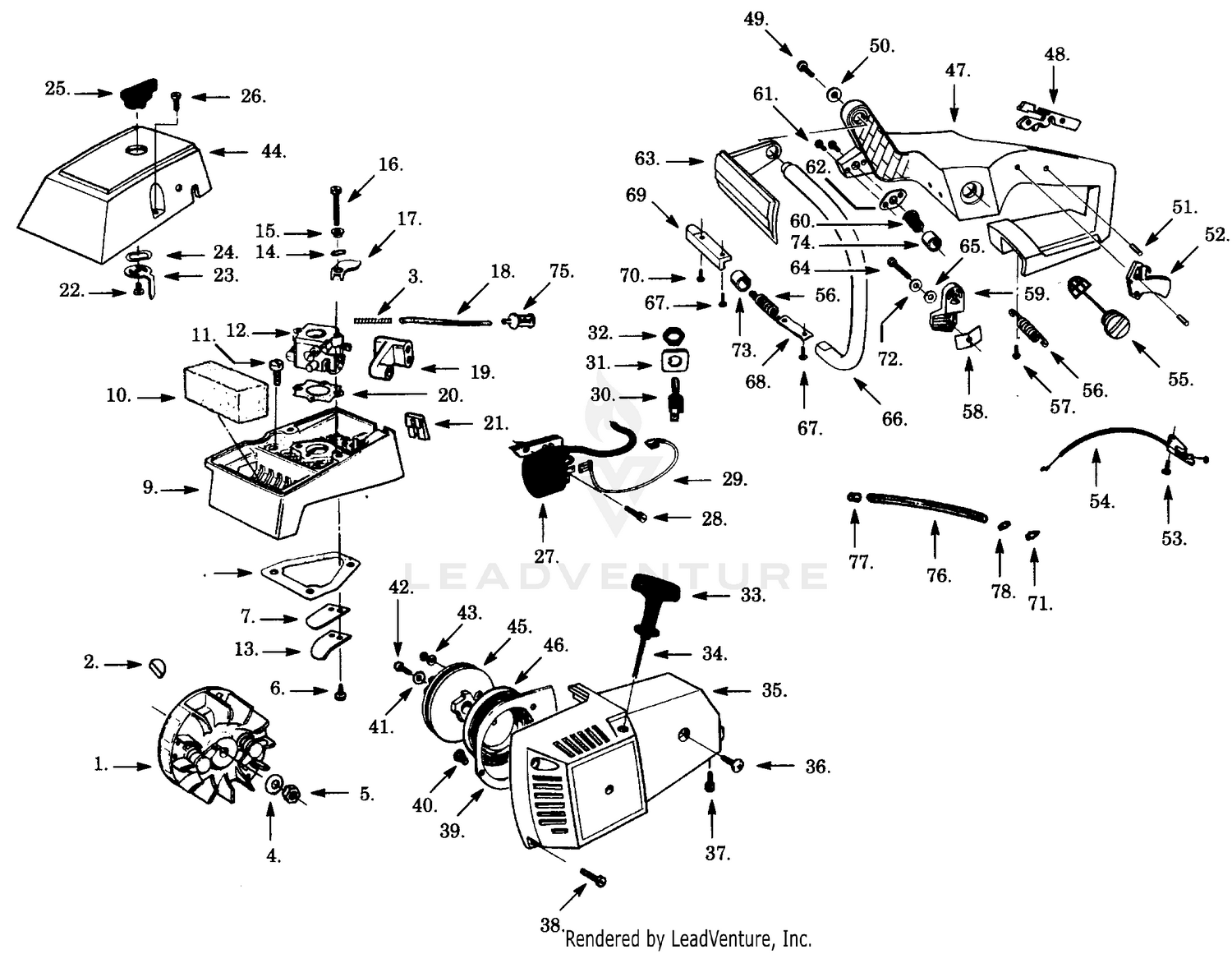

EXTERNAL POWER UNIT
Parts (92)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-0641 | COLLAR-HOC Price: $58.06 |
| 2 | 107-7915 | WASHER-THRUST Price: $1.97 |
| 2 | 530015126 | Flywheel Key Price: $1.99 |
| 3 | 3290-256 | PIN-HAIR Price: $1.01 |
| 3 | 530037264 | Spring Price: $4.84 |
| 4 | 107-7904 | PIN-CLEVIS Price: $36.06 |
| 4 | 530015127 | Washer Price: $1.99 |
| 5 | 325-12 | SCREW-HH Price: $2.27 |
| 5 | 530626605 | Nut Price: $1.99 |
| 6 | 3296-45 | NUT-HEX Price: $3.79 |
| 6 | 545227101 | SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 7 | 105-2808 | END-ROD Price: $88.58 |
| 7 | 530036331 | Reed Valve Price: $1.99 |
| 8 | 3220-5 | NUT-JAM Price: $0.65 |
| 8 | 530019252 | Gasket This part replaces 530019118. Price: $1.99 |
| 9 | 107-7284 | TUBE-HOC Price: $116.83 |
| 9 | 530037154 | Carburetor Hsg. Price: $3.33 |
| 10 | 117-0806 | LH LIFT ARM ASM Price: $900.19 |
| 10 | 530023791 | Air Filter Price: $2.99 |
| 11 | 117-0800 | RH LIFT ARM ASM Price: $900.19 |
| 11 | 530015242 | Screw Price: $1.99 |
| 12 | 107-3457 | PIN-CLEVIS Price: $5.89 |
| 12 | 530035311 | Carburetor Price: $3.33 |
| 13 | 530036332 | Reed Stop Price: $1.99 |
| 13 | 98-2330 | PIVOT PIN ASM Price: $62.61 |
| 14 | 3272-24 | PIN-COTTER Price: $0.54 |
| 14 | 530015254 | Wave Washer Price: $1.99 |
| 15 | 3213-20 | SCREW-HH Price: $1.76 |
| 15 | 530023865 | Spacer Price: $2.99 |
| 16 | 3290-467 | PIN-HAIR Price: $0.27 |
| 16 | 530015245 | Screw Price: $1.99 |
| 17 | 530023805 | Choke Shutter Price: $0.99 |
| 18 | 530069247 | Line Kit (Bulk#8133) Price: $3.99 |
| 19 | 530036973 | Carb. Adj. Grommet Price: $1.99 |
| 20 | 530019045 | Carb. Gasket Price: $1.99 |
| 21 | 530036972 | Grommet - Throttle Cable Price: $1.99 |
| 22 | 530015407 | Screw Price: $0.56 |
| 23 | 530037070 | Choke Lever Price: $1.99 |
| 24 | 530015147 | Wave Washer Price: $1.99 |
| 25 | 530037116 | Choke Knob Price: $1.99 |
| 26 | 530015168 | Screw Price: $1.46 |
| 27 | 530069403 | Ignition Module Price: $21.16 |
| 28 | 530015816 | Screw Price: $1.99 |
| 29 | 530037014 | Wire Harness Price: $1.99 |
| 30 | 530026766 | Toggle Switch Price: $3.33 |
| 31 | 530012311 | Indicating Plate Price: $1.99 |
| 32 | 530002582 | Switch- Plate and Nut This part replaces 530023575. Price: $6.69 |
| 33 | 530027569 | Handle-Starter This part replaces 530026735. Price: $1.99 |
| 34 | 530069232 | Rope Kit Price: $3.99 |
| 35 | 530037158 | Fan Hsg. Price: $3.04 |
| 36 | 530015771 | Screw Price: $1.99 |
| 37 | 530016018 | Screw Price: $1.99 |
| 38 | 530015812 | Screw Price: $1.99 |
| 39 | 530037013 | Fan Hsg. Baffle Price: $1.99 |
| 40 | 530015777 | Screw Price: $0.99 |
| 41 | 530015123 | Washer Price: $1.99 |
| 42 | 530016141 | Screw This part replaces 530015036. Price: $1.99 |
| 43 | 530016080 | SCREW This part replaces 530015823. Price: $1.99 |
| 44 | 530037155 | Carb. Cover Price: $6.99 |
| 45 | 530069288 | Starter Pulley Price: $4.99 |
| 46 | 545008007 | SPRING-STARTER This part replaces 530042023. Price: $5.23 |
| 47 | 530014760 | Tank & Handle Assy Price: $3.33 |
| 48 | 530036967 | Throttle Lockout Lever Price: $1.99 |
| 49 | 530016020 | Screw Price: $0.99 |
| 50 | 530016021 | Washer Price: $1.99 |
| 51 | 530015701 | Roll Pin Price: $1.99 |
| 52 | 530036986 | Throttle Trigger Price: $1.99 |
| 53 | 530016016 | Screw Price: $1.99 |
| 54 | 530036966 | Throttle Cable Assy Price: $6.99 |
| 55 | 577858601 | FUEL CAP ASSY W/RET LW PRM This part replaces 530036965. Price: $3.99 |
| 56 | 530036954 | Rear Mount Spring Price: $2.99 |
| 57 | 530015906 | Screw Price: $1.99 |
| 58 | 530024317 | Isolator Pad Price: $1.99 |
| 59 | 530036929 | Upper Bracket Price: $2.99 |
| 60 | 530036955 | Spring Price: $0.36 |
| 61 | 530016022 | Screw Price: $0.99 |
| 62 | 530036946 | Isolator Plate Price: $1.99 |
| 63 | 530025451 | Handguard Price: $5.99 |
| 64 | 530015505 | Screw Price: $1.99 |
| 65 | 530015209 | Washer Price: $1.99 |
| 66 | 530036939 | Front Handle Price: $22.99 |
| 67 | 530016018 | Screw Price: $1.99 |
| 68 | 530036113 | AV Strap Price: $2.99 |
| 69 | 530036943 | Isolator Bracket Price: $2.99 |
| 70 | 530016019 | Screw Price: $0.99 |
| 71 | 530026119 | Check Valve Price: $1.99 |
| 72 | 530001642 | Lockwasher Price: $1.99 |
| 73 | 530036953 | Isolator Sleeve Price: $1.99 |
| 74 | 530036956 | Upper Sleeve Price: $1.99 |
| 75 | 530037016 | Fuel Filter Assy Price: $2.99 |
| 76 | 530069216 | Vent Line Kit Price: $3.99 |
| 77 | 530027339 | Vent Plug Price: $2.52 |
