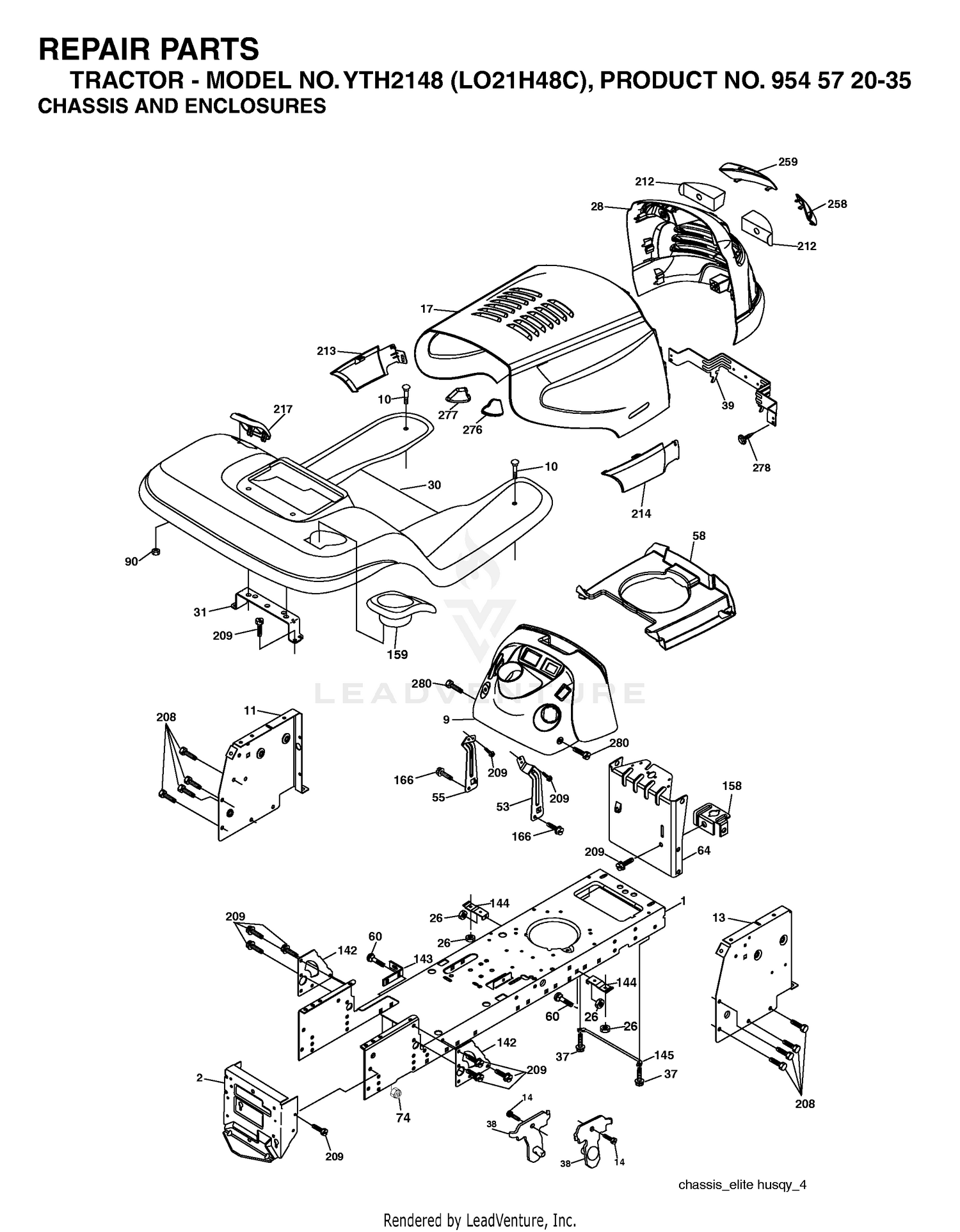

| Ref | Part Number | Description |
|---|
| 1 |
579841401 |
KITS.CHASSIS.STAMPED.SERVICE This part replaces 532174619. Price: $379.99 |
| 1 |
93-4422-01 |
GUARD-BELT Price: $650.61 |
| 2 |
532176554 |
DRAWBAR, 12GA Price: $37.99 |
| 2 |
93-4034 |
V-BELT Price: $204.67 |
| 3 |
93-4001 |
PULLEY-4 GROOVE This part replaces 93-4001-01. Price: $473.22 |
| 4 |
323-4 |
SCREW-HH Price: $1.02 |
| 5 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 6 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 7 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 8 |
325-14 |
SCREW-HH Price: $2.64 |
| 9 |
3217-7 |
NUT-HEX Price: $0.28 |
| 10 |
13-2680 |
BUSHING Price: $217.68 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX Price: $9.99 |
| 11 |
93-4445-01 |
ARM-TRAILING, RH This part replaces 93-4445. Price: $634.65 |
| 12 |
93-4428 |
SPACER-PULLEY Price: $21.92 |
| 13 |
532181719 |
PANEL DASH RH Price: $8.99 |
| 13 |
93-4434 |
SUPPORT BRACKET WA Price: $151.43 |
| 14 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 15 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 16 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 17 |
93-4433-01 |
BRACKET-PULLEY Price: $40.65 |
| 18 |
327-6 |
SCREW-HH Price: $12.99 |
| 21 |
56-6230 |
BEARING-ROLLER Price: $72.34 |
| 22 |
13-4960 |
SHAFT-PLATE, FINGER Price: $126.35 |
| 23 |
13-2840 |
KEY-SQUARE Price: $1.40 |
| 24 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 25 |
115-9026 |
END PLATE ASM This part replaces 93-0189. Price: $75.83 |
| 26 |
144-3697-01 |
FLEX TIP REEL This part replaces 93-0197. Price: $1,218.97 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 27 |
115-9024 |
PLATE-CENTER This part replaces 93-0185. Price: $49.00 |
| 28 |
115-9028 |
END PLATE ASM This part replaces 93-0187. Price: $71.85 |
| 29 |
115-9022 |
FINGER-PLASTIC This part replaces 13-2470. Price: $1.83 |
| 30 |
13-3090 |
SPRING-FINGER Price: $9.71 |
| 30 |
532192814 |
FENDER.W/CUPHOLDER.ORANGE This part replaces 532191815. Price: $219.99 |
| 31 |
115-9023 |
CLAMP-FINGER This part replaces 13-2480. Price: $5.46 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 32 |
32140-94 |
SCREW-HH, SEMS Price: $5.89 |
| 33 |
120-5986 |
HOOK-TRANSPORT This part replaces 93-7711. Price: $70.97 |
| 34 |
13-0560 |
SPACER Price: $5.29 |
| 35 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 36 |
13-0360 |
SPACER Price: $13.03 |
| 37 |
13-3070 |
SPACER Price: $8.69 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
32153-5 |
NUT-HEX Price: $1.59 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR Price: $9.99 |
| 39 |
13-5540-01 |
LIFTING LINK This part replaces 13-5540. Price: $40.11 |
| 39 |
532407807 |
BRACKET PIVOT This part replaces 532174714. Price: $27.99 |
| 40 |
328-10 |
SCREW-HH Price: $14.93 |
| 41 |
63-5300 |
DISCONTINUED Price: Call Us |
| 42 |
32153-6 |
NUT-LOCK Price: $3.46 |
| 43 |
325-9 |
SCREW-HH Price: $1.87 |
| 44 |
323-9 |
SCREW-HH Price: $1.29 |
| 45 |
13-0320 |
COLLAR-LOCK Price: $42.44 |
| 46 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 47 |
13-0330 |
BLOCK-PIVOT Price: $112.26 |
| 48 |
13-5550-01 |
ARM-WHEEL, GAUGE Price: $504.47 |
| 49 |
13-5570 |
PIVOT Price: $47.91 |
| 50 |
117-8544 |
WHEEL-CASTER This part replaces 13-2870. Price: $120.71 |
| 51 |
13-5590 |
ROD-ADJUSTING Price: $108.27 |
| 52 |
13-5670 |
SPACER-LOCKING Price: $189.75 |
| 53 |
3217-9 |
NUT-HH Price: $0.37 |
| 54 |
93-4415-01 |
PULLEY - IDLER This part replaces 93-4415. Price: $63.14 |
| 55 |
325-5 |
SCREW-HH Price: $1.20 |
| 56 |
63-5250 |
SPACER-ARM Price: $93.57 |
| 57 |
3254-8 |
WASHER-LOCK Price: $0.37 |
| 58 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 59 |
256-298 |
BUSHING Price: $22.19 |
| 60 |
872140606 |
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 Price: $4.99 |
| 60 |
93-4429 |
WASHER-PULLEY Price: $8.07 |
| 61 |
323-10 |
SCREW-HH Price: $0.89 |
| 62 |
117-8544 |
WHEEL-CASTER This part replaces 93-7715. Price: $120.71 |
| 63 |
323-5 |
SCREW-HH Price: $0.41 |
| 64 |
532174997 |
DASH LOWER Price: $24.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 90 |
532124346 |
NUT.PUSH.3/16 Price: $6.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT Price: $7.99 |
| 143 |
532186689 |
BRACKET, SWAYBAR CHASSIS Price: $5.99 |
| 144 |
532175582 |
BRKT, FOOT REST Price: $4.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 158 |
532162037 |
BRACKET PARKING BRAKE Price: $3.39 |
| 159 |
532191120 |
CUPHOLDER.RIGHT.GREY This part replaces 532185434. Price: $8.99 |
| 166 |
532189747 |
SCREW.HI-LO#13-16X5/8 This part replaces 532171875. Price: $14.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 217 |
532179132 |
CONSOLE FUEL WINDOW GRAY This part replaces 532185436. Price: $7.99 |
| 280 |
817000616 |
SCREW 3/8-16X1 This part replaces 817060616. Price: $5.99 |
