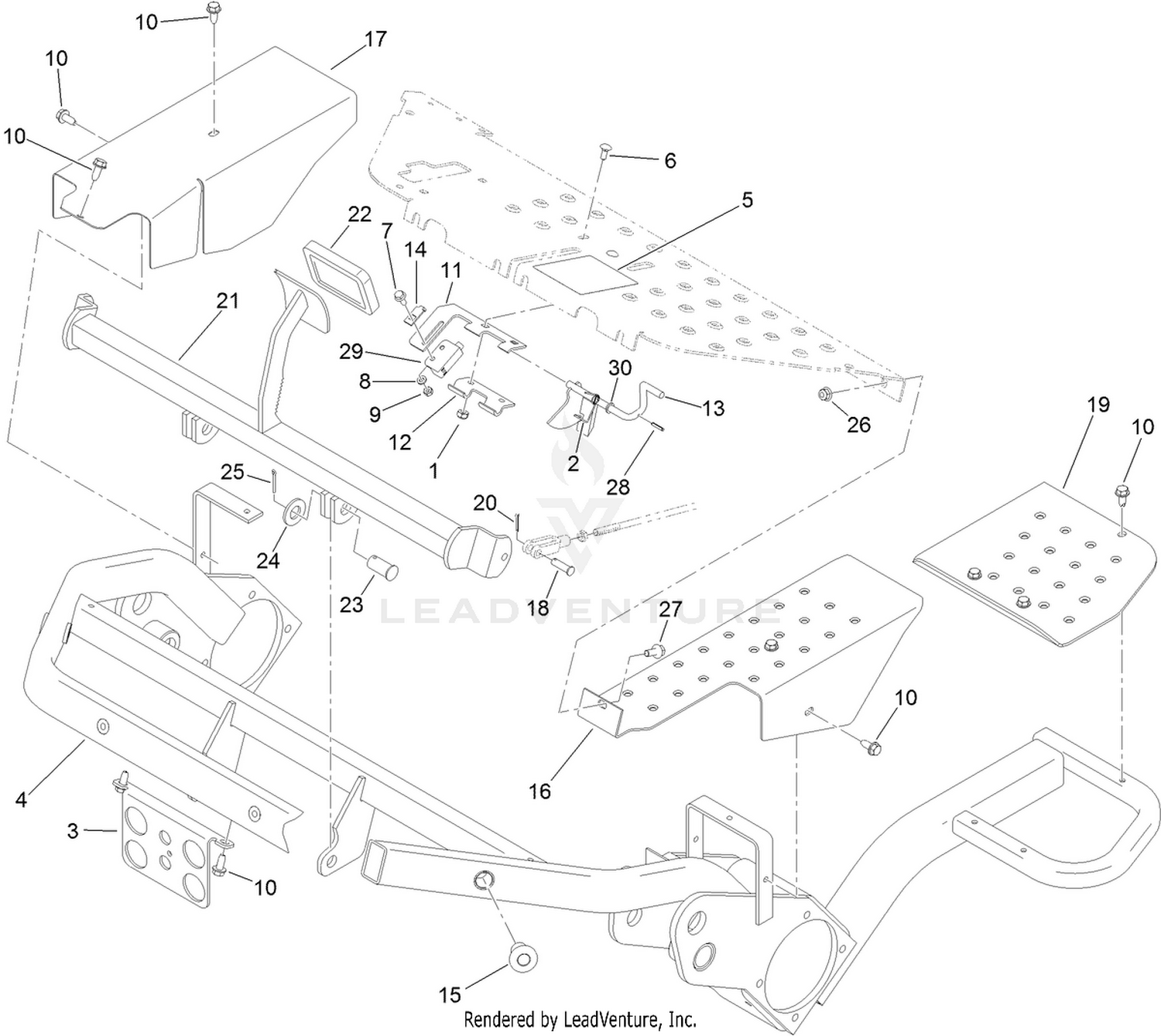

Brake Pedal Assembly
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3296-16 | NUT-LOCK, NI Price: $1.39 |
| 2 | 104-7704 | SPRING-LATCH, BRAKE Price: $12.68 |
| 3 | 121-2636-01 | BRACKET-BULKHEAD Price: $21.44 |
| 4 | 127-6145-01 | FRAME Price: $4,131.64 |
| 5 | 93-8062 | DECAL-BRAKE, PARKING Price: $4.95 |
| 6 | 3229-11 | SCREW-CARR Price: $0.99 |
| 7 | 114-8414 | SCREW-HHF Price: $1.97 |
| 8 | 33093-00 | WASHER-FLAT Price: $0.70 |
| 9 | 33023-00 | NUT-LOCK Price: $0.25 |
| 10 | 32104-32 | SCREW-HWH Price: $1.99 |
| 11 | 104-2096 | BRACKET-SWITCH Price: $35.42 |
| 12 | 104-7703 | HINGE-LOWER Price: $22.15 |
| 13 | 104-2094 | BRAKE-LATCH Price: $150.10 |
| 14 | 104-7702 | PLATE-SWITCH Price: $16.15 |
| 15 | 83-1700 | BUSHING-FLANGE Price: $7.80 |
| 16 | 93-2073-01 | SHIELD-WHEEL, LH Price: $104.03 |
| 17 | 93-2072-01 | SHIELD-WHEEL, RH Price: $92.07 |
| 18 | 283-61 | PIN-YOKE Price: $1.56 |
| 19 | 130-0104-01 | STEP Price: $67.24 |
| 20 | 3272-6 | PIN-COTTER Price: $0.25 |
| 21 | 93-2075-01 | BRAKE PEDAL ASM Price: $188.33 |
| 22 | 93-7629 | PAD-FOOT, BRAKE Price: $25.13 |
| 23 | 283-87 | PIN-CLEVIS Price: $8.89 |
| 24 | 3256-27 | WASHER-FLAT Price: $0.47 |
| 25 | 3272-11 | PIN-COTTER Price: $0.99 |
| 26 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 27 | 3234-47 | SCREW-HHF Price: $1.79 |
| 28 | 32121-50 | PIN-SPRING Price: $1.21 |
| 29 | 104-2057 | SENSOR Price: $136.35 |
