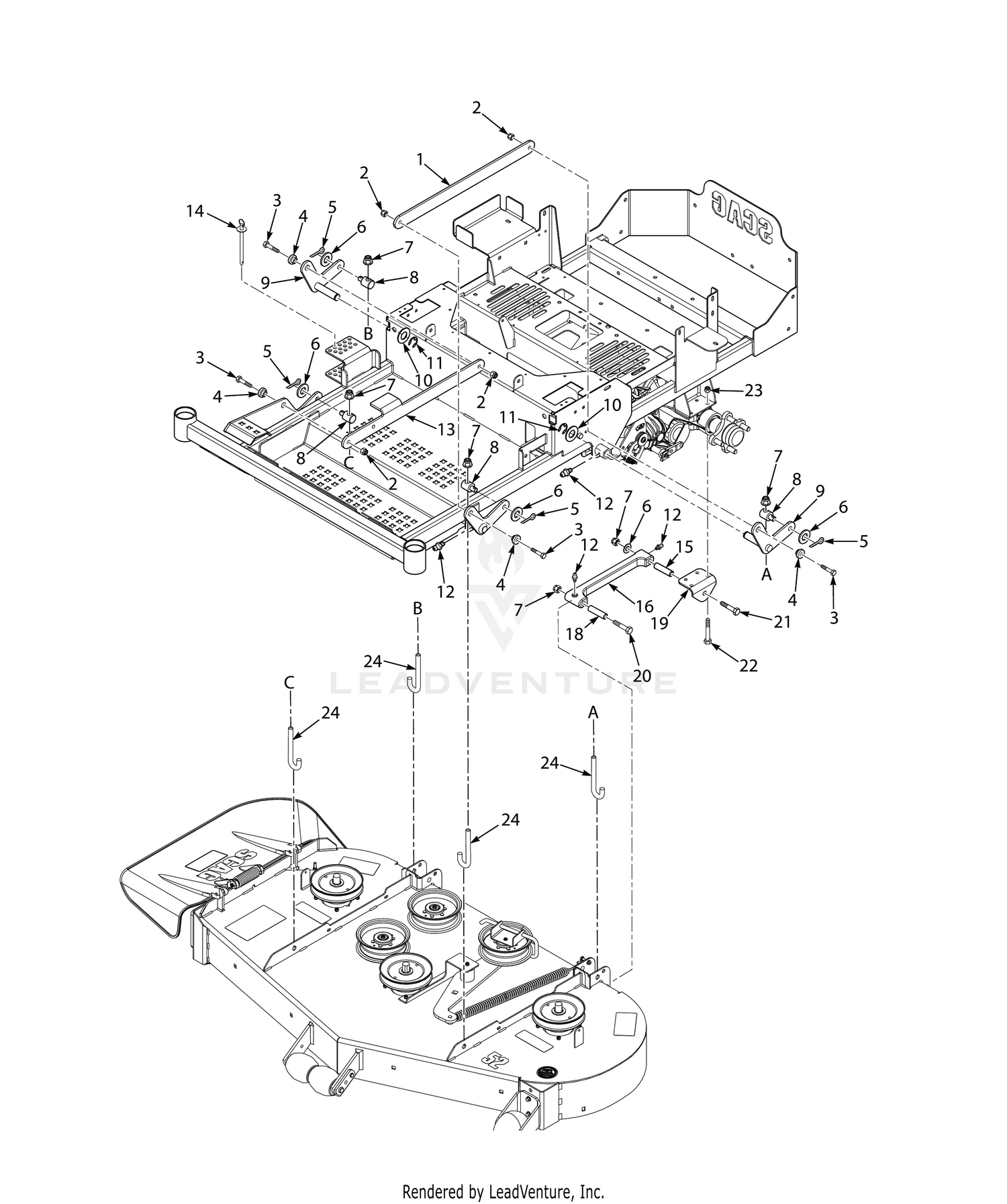

| Ref | Part Number | Description |
|---|
| 1 |
427837 |
Link, Deck Lift - LH Price: Call Us |
| 2 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 3 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 4 |
43086 |
BUSHING, SPEED ADJUSTMENT LEVER Price: Call Us |
| 5 |
04061-07 |
Pin, Cotter 3/16 x 1.0" Price: Call Us |
| 6 |
04040-07 |
Flatwasher, 1/2 - .531 x 1.062 x .095 Price: Call Us |
| 7 |
04021-07 |
HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us |
| 8 |
431072 |
Joint, Swivel Price: Call Us |
| 9 |
452962 |
Lift Bellcrank Weldment Price: Call Us |
| 10 |
04041-08 |
Flatwasher, 3/4 (.766 x 1.250 x .060) Price: Call Us |
| 11 |
04050-02 |
RETAINING RING, 3/4" EXTERNAL "E" Price: Call Us |
| 12 |
48114-04 |
GREASE FITTING, STR. 1/4-28 SELF TAP. Price: Call Us |
| 13 |
427838 |
Link, Deck Lift - RH Price: Call Us |
| 14 |
485351 |
Pin Assembly, Deck Height Price: Call Us |
| 15 |
43986 |
Spacer, Pusharm - Axle Price: Call Us |
| 16 |
462769 |
Pusharm Assembly, LH Price: Call Us |
| 17 |
462770 |
Pusharm Assembly, RH Price: Call Us |
| 18 |
43985 |
Spacer, Pusharm - Deck Price: Call Us |
| 19 |
424489 |
Bracket, Push Arm Link Price: Call Us |
| 20 |
04001-145 |
Bolt, Hex Head 1/2-13 x 3-1/2" Price: Call Us |
| 21 |
04001-52 |
Bolt, Hex Hd. 1/2-13 x 2-1/2" (lower) Price: Call Us |
| 22 |
04001-49 |
Bolt, Hex Head 5/16-18 x 3.00" Price: Call Us |
| 23 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
