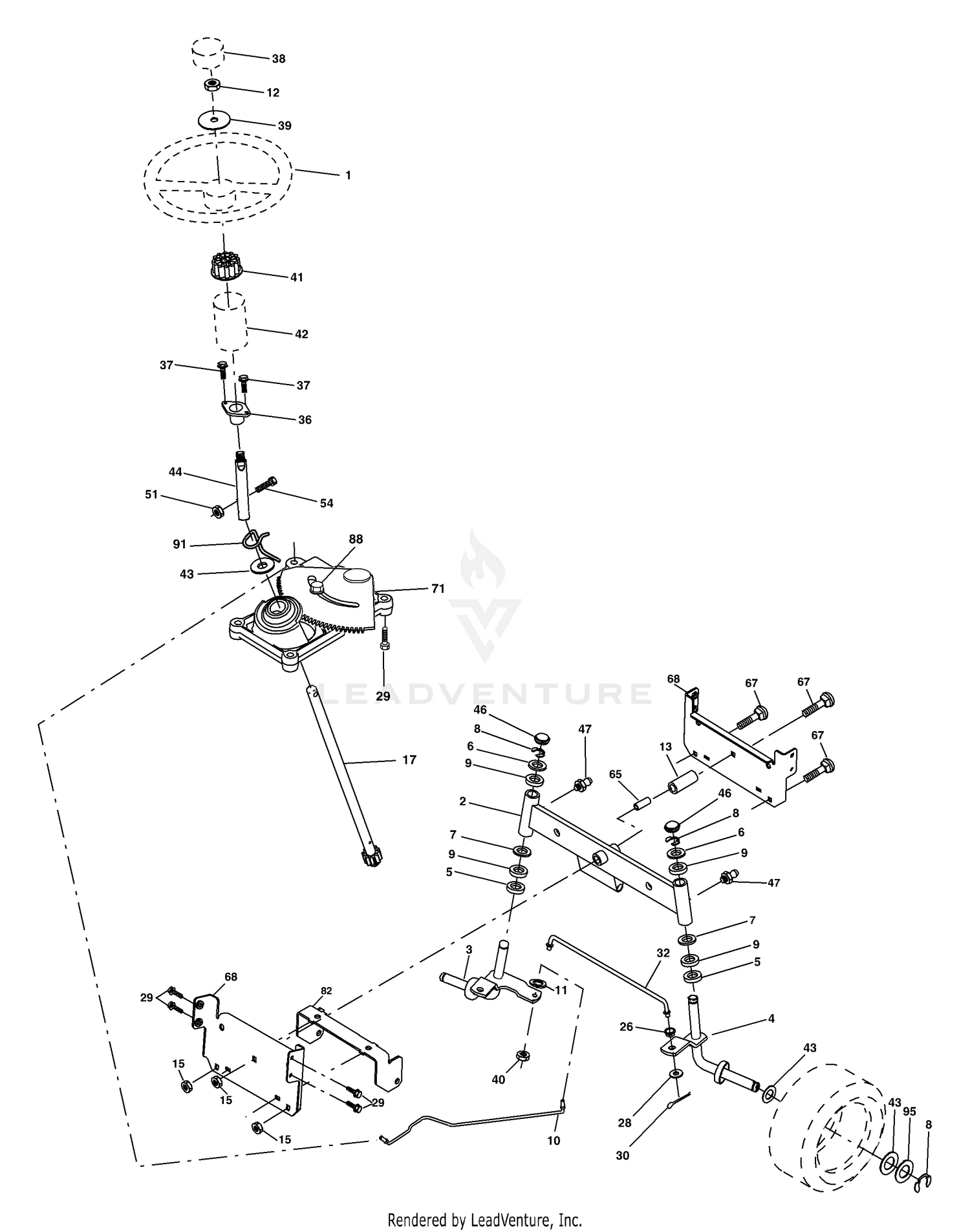

| Ref | Part Number | Description |
|---|
| 1 |
120-0018 |
BRAKE ROD KIT This part replaces 110-5498. Price: $82.04 |
| 1 |
140044X428 |
Wheel Steering Price: Call Us |
| 2 |
175131 |
Axle Asm Price: Call Us |
| 2 |
3219-3 |
NUT-HEX Price: $0.34 |
| 3 |
169840 |
Spindle Asm LH Price: Call Us |
| 3 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 4 |
109-2230 |
SPRING-COMPRESSION Price: $8.99 |
| 4 |
169839 |
Spindle Asm RH Price: Call Us |
| 5 |
112-1676 |
SWIVEL Price: $41.95 |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 6 |
120-0018 |
BRAKE ROD KIT This part replaces 110-5494. Price: $82.04 |
| 6 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 7 |
19272016 |
Washer 27/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 7 |
32151-47 |
RING-RETAINING Price: $2.49 |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 8 |
65-2720 |
RING-RETAINING,CLIP This part replaces 32151-68. Price: $0.99 |
| 9 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 9 |
3366R |
Bearing Col Strg Blk Price: Call Us |
| 10 |
175121 |
Link Drag Price: Call Us |
| 10 |
323-6 |
SCREW-HH Price: $0.66 |
| 11 |
1-633268 |
GRIP-LEVER Price: $13.99 |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 12 |
108-5214-03 |
BRAKE HANDLE ASM Price: $81.91 |
| 12 |
73940800 |
Nut Hex Jam Toplock 1/2-20 Price: Call Us |
| 13 |
136518 |
Spacer earing Axle Front Price: Call Us |
| 13 |
3250-35 |
SCREW-PPH Price: $3.24 |
| 14 |
3256-53 |
WASHER-FLAT Price: $0.25 |
| 15 |
145212 |
Hexflange Lock Price: Call Us |
| 15 |
95-8900 |
SWITCH Price: $95.42 |
| 16 |
108-9824 |
NUT-SWITCH Price: $1.97 |
| 17 |
1-633102 |
BEARING-FLANGE, SIDE Price: $17.99 |
| 17 |
180641 |
Shaft Asm Strg Price: Call Us |
| 18 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 19 |
110-9754 |
BRAKE PIVOT ASM Price: $32.85 |
| 20 |
1-513140 |
BEARING-CONTROL Price: $4.99 |
| 21 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 22 |
1-633131 |
YOKE-LINKAGE, BRAKE Price: $14.99 |
| 26 |
126847X |
Bushing Link Drag Blk LR Price: Call Us |
| 28 |
19131416 |
Washer 13/32 x 7/8 x 16 Ga. Price: Call Us |
| 29 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 30 |
76020412 |
Pin Cotter 1/8 x 3/4 Cad Price: Call Us |
| 32 |
130465 |
Rod Tie Wire Form 19 75 Mech Price: Call Us |
| 36 |
155099 |
Bushing Strg 5/8 Id Dash Price: Call Us |
| 37 |
152927 |
Screw Price: Call Us |
| 38 |
140045X428 |
Cap Wheel Steer Ayp Price: Call Us |
| 39 |
19183812 |
Washer 9/16 x 2-3/8 Price: Call Us |
| 40 |
73540600 |
Nut Crownlock 3/8-24 Price: Call Us |
| 41 |
186737 |
Adaptor Wheel Strg Price: Call Us |
| 42 |
145054X428 |
Boot Dash Mtl Steering Blk Price: Call Us |
| 43 |
121749X |
Washer 25/32 x 1 1/4 x 16 Ga. Price: Call Us |
| 44 |
180640 |
Extension Steering Price: Call Us |
| 46 |
121232X |
Cap Spindle Fr Top Blk Price: Call Us |
| 47 |
183226 |
Fitting Grease Price: Call Us |
| 51 |
73540400 |
Nut 1/4-28 Price: Call Us |
| 54 |
71130420 |
Bolt Hex 1/4-28 x 1-1/4 Price: Call Us |
| 65 |
160367 |
Spacer Brace Axle Price: Call Us |
| 67 |
72110618 |
Bolt RDHD SQNK 3/8-16 x 2-1/4 Price: Call Us |
| 68 |
169827 |
Brace Axle Price: Call Us |
| 71 |
175146 |
Steering Asm. Price: Call Us |
| 82 |
169835 |
Bracket Susp Chassis Front Price: Call Us |
| 88 |
175118 |
Bolt Shoulder 7/16-20 Price: Call Us |
| 91 |
175553 |
Clip Steering Price: Call Us |
