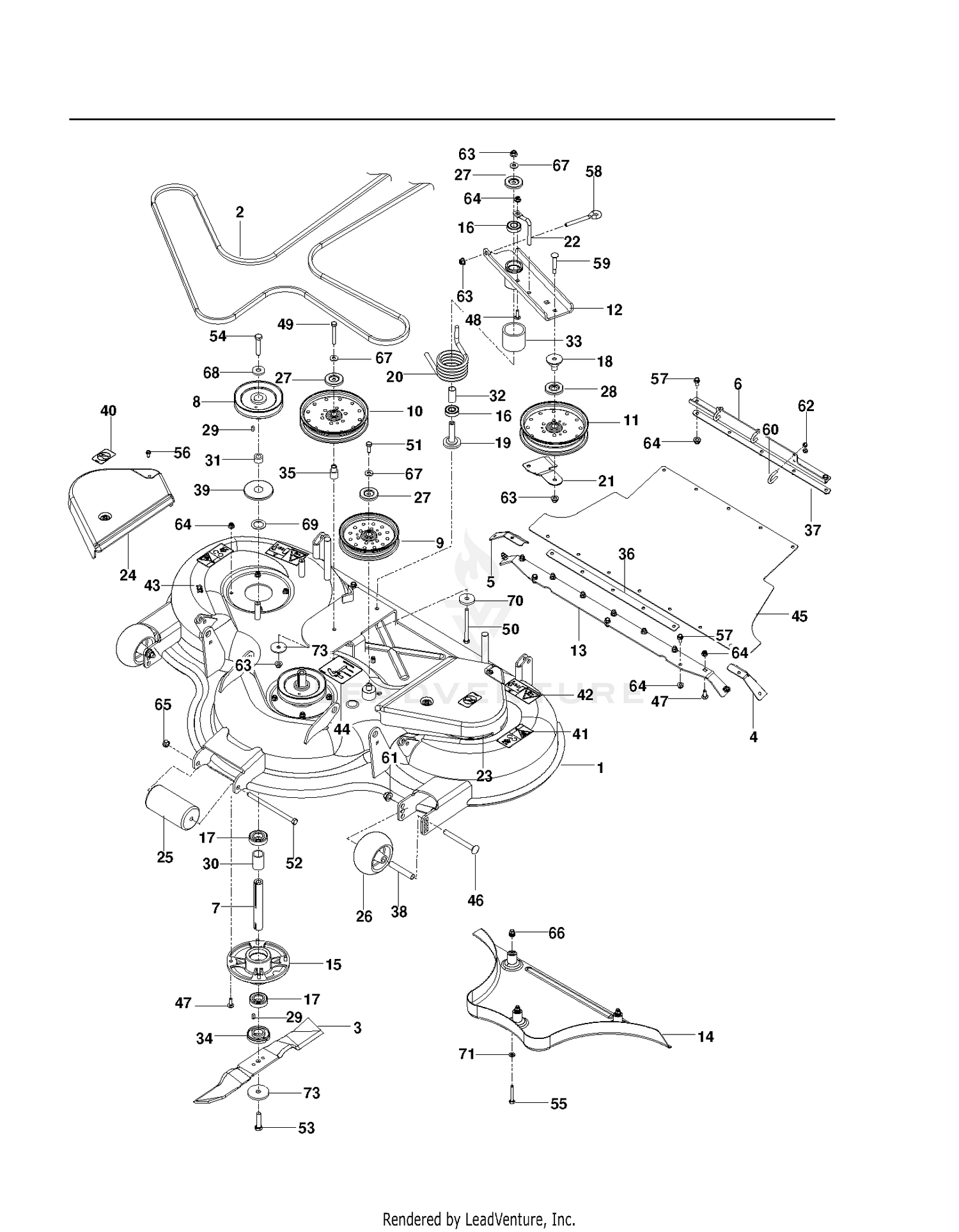

| Ref | Part Number | Description |
|---|
| 2 |
589564701 |
NEEDS DESCRIPTION Price: Call Us |
| 3 |
586198810 |
BLADE REAR DISCHARGE/MULCH C13 Price: $34.99 |
| 4 |
575647802 |
BRKT, L.H. CORNER BLK Price: $16.99 |
| 5 |
575647902 |
BRKT, R.H. CORNER BLK Price: $16.99 |
| 6 |
579226901 |
Price: Call Us |
| 7 |
535428702 |
AXLE Price: $49.99 |
| 8 |
539112506 |
PULLEY, 52 Price: $99.99 |
| 9 |
597087101 |
GSPW PULLEYS This part replaces 510019601. Price: $39.99 |
| 10 |
525598202 |
PULLEYS This part replaces 525598201. Price: $39.99 |
| 11 |
510015102 |
Pulleys This part replaces 510015101. Price: $49.99 |
| 12 |
525464402 |
IDLER.ARM.BLACK Price: $9.99 |
| 13 |
575729602 |
Price: Call Us |
| 15 |
535428901 |
BEARING HOUSING Price: $119.99 |
| 16 |
539112050 |
BEARING, BALL Price: $5.99 |
| 17 |
738220519 |
BALL BEARING Price: $6.99 |
| 18 |
510263701 |
BEARING, IDLER ARM Price: $5.99 |
| 19 |
522729701 |
BEARING, IDLER PIVOT Price: $7.99 |
| 20 |
525310901 |
SPRING, TORSION, IDLER Price: $84.99 |
| 21 |
574262102 |
BELT.GUIDE.BLACK Price: $29.99 |
| 22 |
574262202 |
Belt Keepers This part replaces 574262201. Price: $5.99 |
| 23 |
539112508 |
BELT SHIELD LT Price: $19.99 |
| 24 |
539112509 |
BELT SHIELD RT Price: $27.99 |
| 25 |
539002472 |
ROLLER This part replaces 544185401. Price: $77.99 |
| 26 |
574169601 |
ROLLER, GAUGE .635 BORN Price: $14.99 |
| 27 |
510254502 |
SHIELD DUST This part replaces 510254501. Price: $3.99 |
| 28 |
596840301 |
Shields This part replaces 510262201. Price: $19.99 |
| 29 |
506533501 |
KEY Price: $3.99 |
| 30 |
535428801 |
SPACER Price: $7.99 |
| 31 |
539112609 |
KEY RETAINER Price: $8.99 |
| 32 |
510264201 |
SPACER, IDLER BEARINGS Price: $5.99 |
| 33 |
525465601 |
SPACER, IDLER PIVOT Price: $8.99 |
| 34 |
539132778 |
BUSHING, BLADE Price: $69.99 |
| 35 |
539103295 |
IDLER BUSHING Price: $12.99 |
| 36 |
575782202 |
Price: Call Us |
| 37 |
575558702 |
STRAP, SHORT BLACK Price: $17.99 |
| 38 |
574196402 |
Tubes This part replaces 574196401. Price: $5.99 |
| 39 |
539108450 |
TOP DUST CAP Price: $4.99 |
| 45 |
575789801 |
Price: Call Us |
| 46 |
510022302 |
Screws This part replaces 510022301. Price: $5.99 |
| 47 |
595901501 |
Bolts This part replaces 539990208. Price: $3.99 |
| 48 |
596435701 |
Bolts This part replaces 539107271. Price: $2.99 |
| 49 |
539102612 |
SCREW 3/8C X 2 3/4 HEX CAP Price: $4.99 |
| 50 |
596435401 |
Bolts This part replaces 539101686. Price: $1.99 |
| 51 |
596564401 |
Bolts This part replaces 539990563. Price: $3.99 |
| 52 |
539132470 |
HCS 7/16-14 X 7 GR5 ZD Price: $3.99 |
| 53 |
539132480 |
HCS M12 X 1.75 X 50 GR8.8 ZD Price: $2.99 |
| 54 |
539132479 |
HCS M12 X 1.75 X 60 GR5 ZD Price: $2.99 |
| 55 |
539132494 |
HCS M8 X 1.25 X 50 GR8.8 ZD Price: $2.99 |
| 56 |
539990362 |
SCREW 1/4 X 5/8 Price: $3.99 |
| 57 |
525464701 |
HHFS 5/16-18 X 3/4 Price: $2.99 |
| 58 |
574202002 |
Hardware This part replaces 574202001. Price: $4.99 |
| 59 |
596337801 |
Bolts This part replaces 539128101. Price: $4.99 |
| 60 |
579227001 |
Price: Call Us |
| 61 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL This part replaces 521991101. Price: $3.99 |
| 62 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 63 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 64 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 65 |
539990839 |
NUT 7/16C CENTERLOCK Price: $2.99 |
| 66 |
506916203 |
BLIND RIVET NUT Price: $7.99 |
| 67 |
522023401 |
WASHER, 3/8 THICK Price: $2.99 |
| 68 |
539115550 |
WASHER-.533IDX1.37OD Price: $3.99 |
| 69 |
539127099 |
WASHER-1.06IDX1.63ODX.06 Price: $4.99 |
| 70 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 71 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 73 |
506792302 |
WASHER Price: $12.99 |
