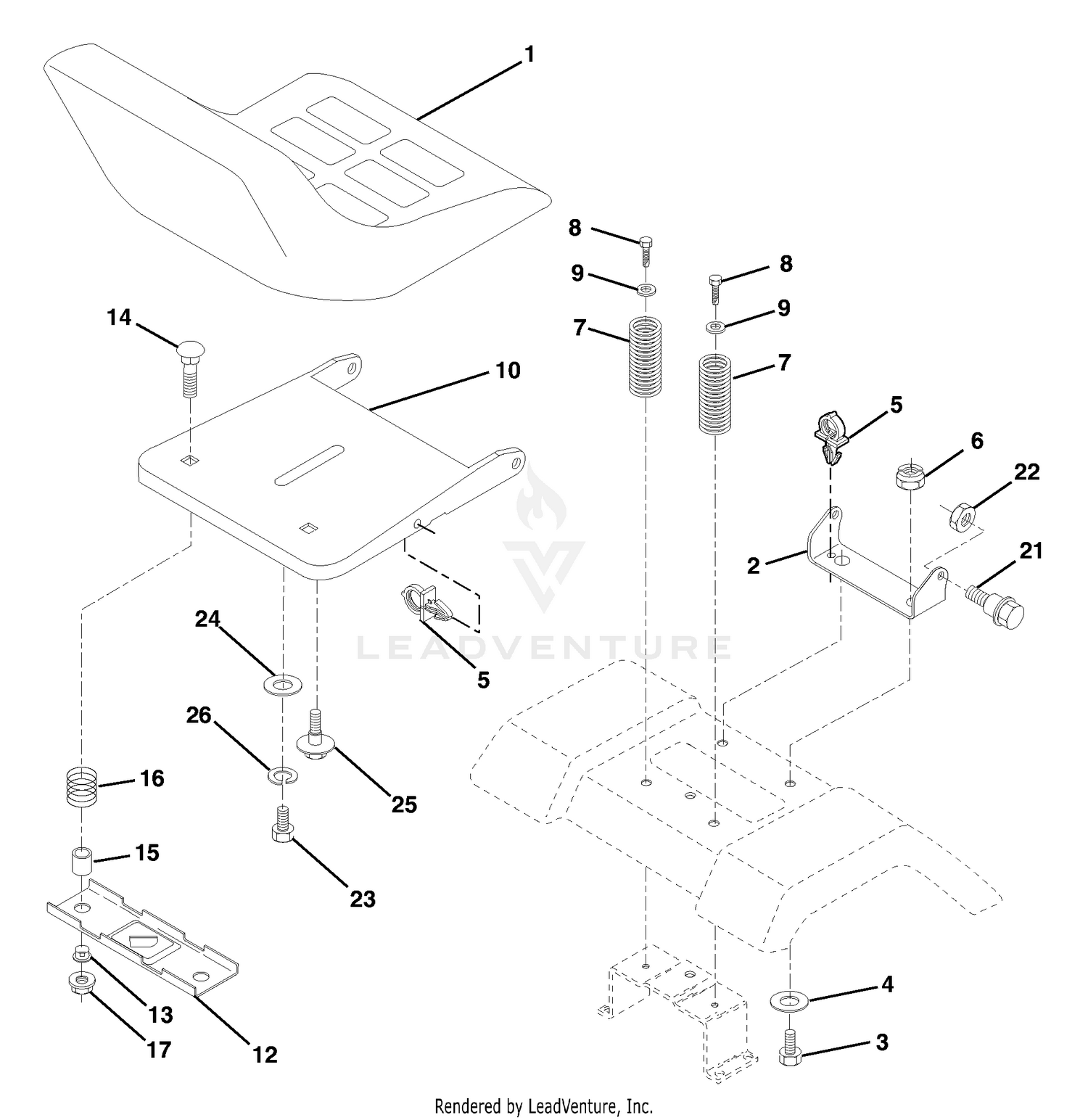

| Ref | Part Number | Description |
|---|
| 1 |
175389 |
Seat Price: Call Us |
| 1 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 2 |
140551 |
Bracket Pnt Pivot Seat (blk) Price: Call Us |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 3 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 3 |
188978 |
Bolt Price: Call Us |
| 4 |
189116 |
Washer 13/32 x 1 x 10 Ga. Price: Call Us |
| 4 |
3220-3 |
NUT-HJ Price: $0.28 |
| 5 |
137-9706 |
DECAL-WARNING This part replaces 93-8064. Price: $4.48 |
| 5 |
184774 |
Clip Push-In Hinged Price: Call Us |
| 6 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 99-1460. Price: $16.35 |
| 6 |
73800600 |
Nut Price: Call Us |
| 7 |
124181X |
Spring Seat Cprsn 2 250Blk Zi Price: Call Us |
| 8 |
105-3823 |
HYD CYLINDER ASM This part replaces 99-8160. Price: $493.03 |
| 8 |
17000616 |
Screw 3/8-16 x 1.5 Price: Call Us |
| 9 |
19131614 |
Washer 13/32 x 1 x 14 Ga. Price: Call Us |
| 9 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 10 |
182493 |
Pan Pnt Seat (blk ) Price: Call Us |
| 10 |
83-1680 |
HOSE-HYD Price: $39.99 |
| 11 |
88-9700 |
HOSE-HYD Price: $64.30 |
| 12 |
174648 |
Bracket Pnt Mounting Switch Price: Call Us |
| 12 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 13 |
121248X |
Bushing Snap Blk Nyl 50 Id Price: Call Us |
| 13 |
322-1 |
SCREW-HH Price: $0.22 |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 14 |
72050412 |
Bolt Rdhd Sht Nk 1/4-20 x 1-1/2 Price: Call Us |
| 15 |
115-3260 |
KIT-SERVICE, PIN This part replaces 27-2550. Price: $33.44 |
| 15 |
134300 |
Spacer Split 28 x 96 Yel Zinc Price: Call Us |
| 16 |
121250X |
Spring Cprsn 1 27 Blk Pnt Price: Call Us |
| 16 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 17 |
123976X |
Nut Lock 1/4 Lge Flg Gr. 5 Zinc Price: Call Us |
| 17 |
131-4307 |
PIN This part replaces 68-5560. Price: $15.61 |
| 18 |
322-3 |
SCREW-HH Price: $0.79 |
| 19 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 20 |
93-2384 |
SPACER-CARRIER Price: $9.09 |
| 21 |
171852 |
Bolt Shoulder 5/16-18 unc Blkz-2A Price: Call Us |
| 21 |
5-1226 |
WASHER Price: $3.90 |
| 22 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 22 |
73800500 |
Nut Price: Call Us |
| 23 |
10-7820 |
PIVOT HINGE ASM Price: $504.57 |
| 23 |
71110814 |
Bolt Hex Black Price: Call Us |
| 24 |
19171912 |
Washer 17/32 x 1-3/16 x 12 Ga. Price: Call Us |
| 24 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 25 |
127018X |
Bolt Shoulder 5/16-18 x 62 Price: Call Us |
| 25 |
136-8446 |
KIT, CENTER PULL FRAME This part replaces 104-2056. Price: $340.89 |
| 26 |
138-6311 |
ARM-PULL-ASSEMBLY-LH This part replaces 92-0586. Price: $29.91 |
| 27 |
133-2337 |
ROLLER ASM This part replaces 99-4277. Price: $176.14 |
| 28 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 29 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 30 |
138-6303 |
ARM-PULL-ASSEMBLY-RH This part replaces 92-0585. Price: $29.91 |
| 31 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 34 |
3290-379 |
TIE-CABLE Price: $0.31 |
