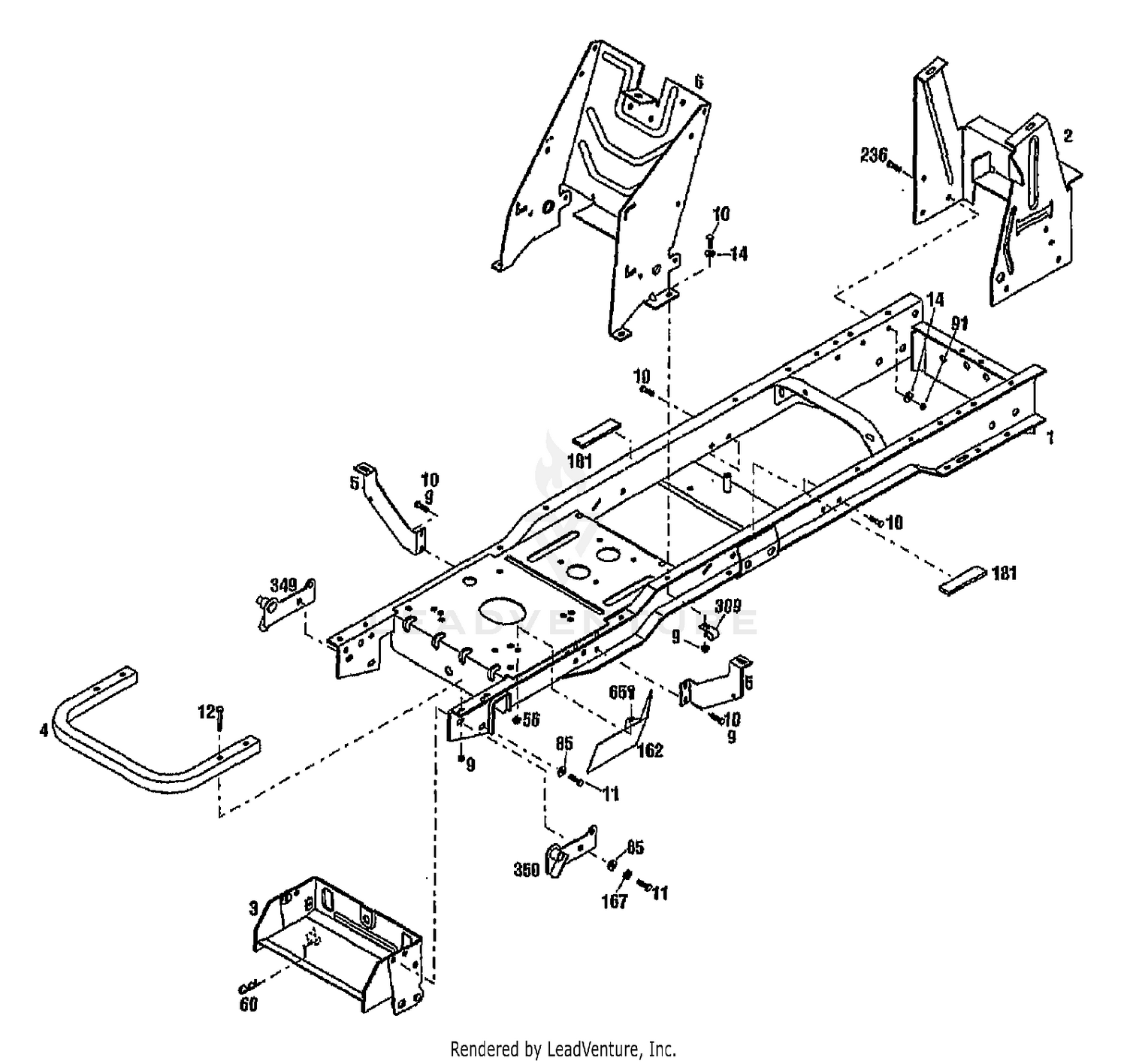

| Ref | Part Number | Description |
|---|
| 1 |
1772924001 |
FRAME BLACK Not Available This part replaces 1765435001. Price: |
| 2 |
1766050001 |
SUPPORT-REAR TANK Not Available Price: |
| 3 |
1766082001 |
ASSM-BRKT ATTACHMENT Not Available Price: |
| 4 |
1766336001 |
BUMPER-FRONT Not Available Price: |
| 5 |
1765431001 |
SUPPORT-FENDER Not Available Price: |
| 6 |
1765446001 |
SUPPORT-CONSOLE Not Available Price: |
| 9 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 10 |
1100044 |
SCR-HHC 5/16-18X.75 GR 5 ZP Price: $3.76 |
| 11 |
710-0514 |
SCREW 3/8-16 x 1 GR5 This part replaces 1100046. Price: $3.78 |
| 12 |
710-3180 |
SCREW 5/16-18 x 1.75 GR5 This part replaces 1100779. Price: $4.93 |
| 14 |
736-0275 |
FLAT WASHER This part replaces 1107382. Price: $5.99 |
| 56 |
1186389 |
NUT-HF/LK 1/4-20 ZP Price: $3.05 |
| 60 |
1723478 |
HITCH PIN Not Available Price: |
| 65 |
1186309 |
SCREW-FLANGE Not Available Price: |
| 85 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces 1107383. Price: $3.90 |
| 91 |
1732499 |
NUT-TOP/LK 5/16-18 ZP Price: $3.49 |
| 162 |
1767874001 |
SHIELD-HEAT UPPER Price: Call Us |
| 167 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 1100243. Price: $3.33 |
| 181 |
1767883 |
PAD Not Available Price: |
| 236 |
710-04043 |
SCREW 5/16-18 This part replaces 1186329. Price: $3.96 |
| 309 |
1747738 |
CLIP-J Not Available Price: |
| 349 |
1767867001 |
R.H. PIVOT Not Available Price: |
| 350 |
1767868001 |
L.H. PIVOT Not Available Price: |
