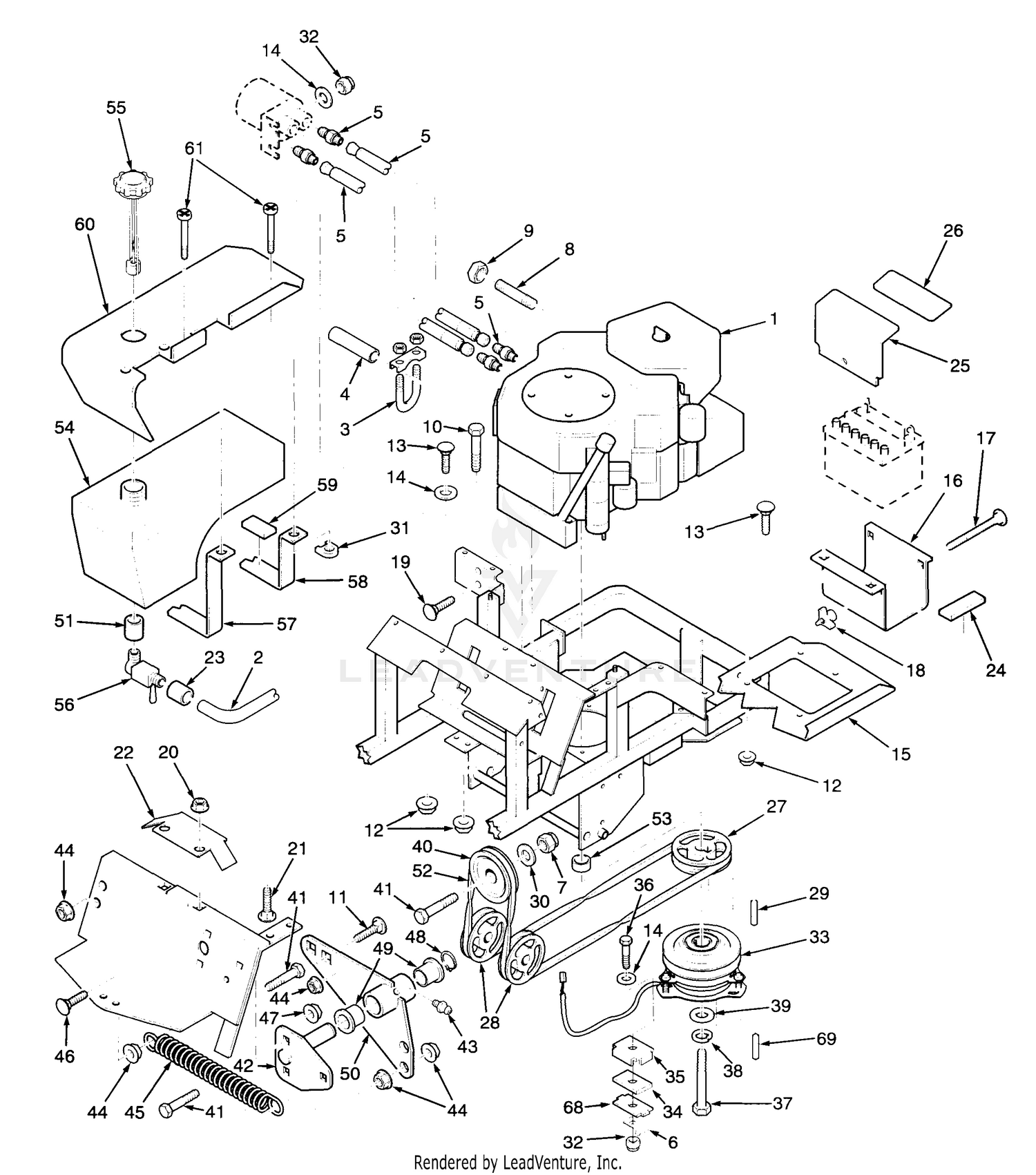

| Ref | Part Number | Description |
|---|
| 1 |
481116 |
Engine 18 hp Kohler CV For SSZ-18CV Price: Call Us |
| 2 |
483617 |
Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) This part replaces 48058-03. Price: Call Us |
| 3 |
48633 |
Muffler Clamp Price: Call Us |
| 4 |
48964 |
Tube, Exhaust Price: Call Us |
| 6 |
48030-09 |
Clamp, .50 ID Price: Call Us |
| 7 |
04021-09 |
Nut, 3/8-16 Elastic Stop Price: Call Us |
| 8 |
48402-06 |
Extention, 2.50" Price: Call Us |
| 9 |
48257 |
Pipe Cap Price: Call Us |
| 10 |
04017-19 |
Bolt, 5/16-18 x 1-1/2" Serr. Flng. Hex Head Price: Call Us |
| 11 |
04003-05 |
Bolt, 7/8-16 x 1.50" Carriage Price: Call Us |
| 12 |
04019-03 |
Nut, Serrated Flange Hex Head 5/16-18 Price: Call Us |
| 13 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 14 |
04040-15 |
Flatwasher, 5/16" (.313 x .875 x .083) Price: Call Us |
| 15 |
45479 |
Fender, LH Price: Call Us |
| 16 |
421197 |
Battery Box Price: Call Us |
| 17 |
04003-39 |
Bolt, Carriage 1/4-20 x 6" This part replaces 04003-01. Price: Call Us |
| 18 |
04029-01 |
Wing Nut, 1/4-20 Price: Call Us |
| 19 |
04003-04 |
Bolt, Carriage 5/16-18 x 1" Price: Call Us |
| 20 |
04019-02 |
Nut, Serrated Flange Hex 1/4-20 Price: Call Us |
| 21 |
04003-02 |
Bolt, Carriage 1/4-20 x 3/4" Price: Call Us |
| 22 |
421624 |
Belt Guard Price: Call Us |
| 23 |
48059-01 |
Fuel Hose Clamp Price: Call Us |
| 24 |
48661 |
Rubber Pad Price: Call Us |
| 25 |
42392 |
Battery Cover Price: Call Us |
| 26 |
48099 |
Pad, Battery Cover Price: Call Us |
| 27 |
48792 |
Pulley Price: Call Us |
| 28 |
482648 |
Pulley, 5.95 Dia. Tapered Bore This part replaces 48790. Price: Call Us |
| 29 |
04063-06 |
Key, 1/4 x 1/4 x 1-1/2" Price: Call Us |
| 30 |
04041-07 |
Flatwasher, 3/8" (.391 x .938 x .105) Price: Call Us |
| 31 |
04110-01 |
U-Nut, 1/4-20 Price: Call Us |
| 32 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 33 |
461397 |
Clutch, Electric This part replaces 461073. Price: Call Us |
| 34 |
481716 |
Rubber Pad, Clutch Stop Price: Call Us |
| 35 |
422533 |
Backing Plate Price: Call Us |
| 36 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-3/4" Price: Call Us |
| 37 |
04001-93 |
Bolt, Hex Head 7/16-20 x 2.25 (SSZ BV) Price: Call Us |
| 37A |
04001-103 |
Bolt, Hex Head 7/16-20 x 3.00" (SSZ CV) Price: Call Us |
| 38 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 39 |
04041-28 |
Flatwasher, Retainer Price: Call Us |
| 40 |
48181 |
Idler, Pulley Price: Call Us |
| 41 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1.75" Price: Call Us |
| 42 |
45650 |
Pivot Weldment, Idler Arm Price: Call Us |
| 43 |
48114-04 |
Grease Fitting Price: Call Us |
| 44 |
04019-04 |
Nut, Serrated Flange Hex 3/8-16 Price: Call Us |
| 45 |
48961 |
Spring, Pump Drive Idler Price: Call Us |
| 46 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4 Price: Call Us |
| 47 |
04019-03 |
Nut, Serrated Flange Hex 5/16-18 Price: Call Us |
| 48 |
04050-05 |
Ring, Retaining 1.125 Diameter External "E" Price: Call Us |
| 49 |
48100-02 |
Bushing, 1.125 Sintered Price: Call Us |
| 50 |
46755 |
Idler Arm Weldment, Pump Drive Price: Call Us |
| 51 |
482571 |
Bushing This part replaces 48309. Price: Call Us |
| 52 |
48760 |
Belt, Pump Drive Price: Call Us |
| 53 |
43248 |
Spacer, Crankshaft Price: Call Us |
| 55 |
483787 |
FUEL CAP W/GAUGE This part replaces 481556. Price: Call Us |
| 56 |
483747 |
Ball Valve w/Screen This part replaces 48308. Price: Call Us |
| 57 |
42944 |
Fuel Tank Strap, Long Price: Call Us |
| 58 |
42945 |
Fuel Tank Strap, Short Price: Call Us |
| 59 |
48657 |
Rubber Pad Price: Call Us |
| 60 |
46505 |
Fender Assembly, RH (with decal) Price: Call Us |
| 61 |
04010-10 |
Screw, Machine 1/4-20 x 2" Phillips Head Price: Call Us |
| 62 |
04017-19 |
Bolt, 5/16-18 x 1-1/2" Serr. Flng. Hex Head Price: Call Us |
| 63 |
04003-05 |
Bolt, Carriage 7/8-16 x 1.50" Price: Call Us |
| 64 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 65 |
48030-09 |
Clamp, .50 ID Price: Call Us |
| 67 |
48600-01 |
Elbow, Street Price: Call Us |
| 68 |
422534 |
Backing Plate Price: Call Us |
