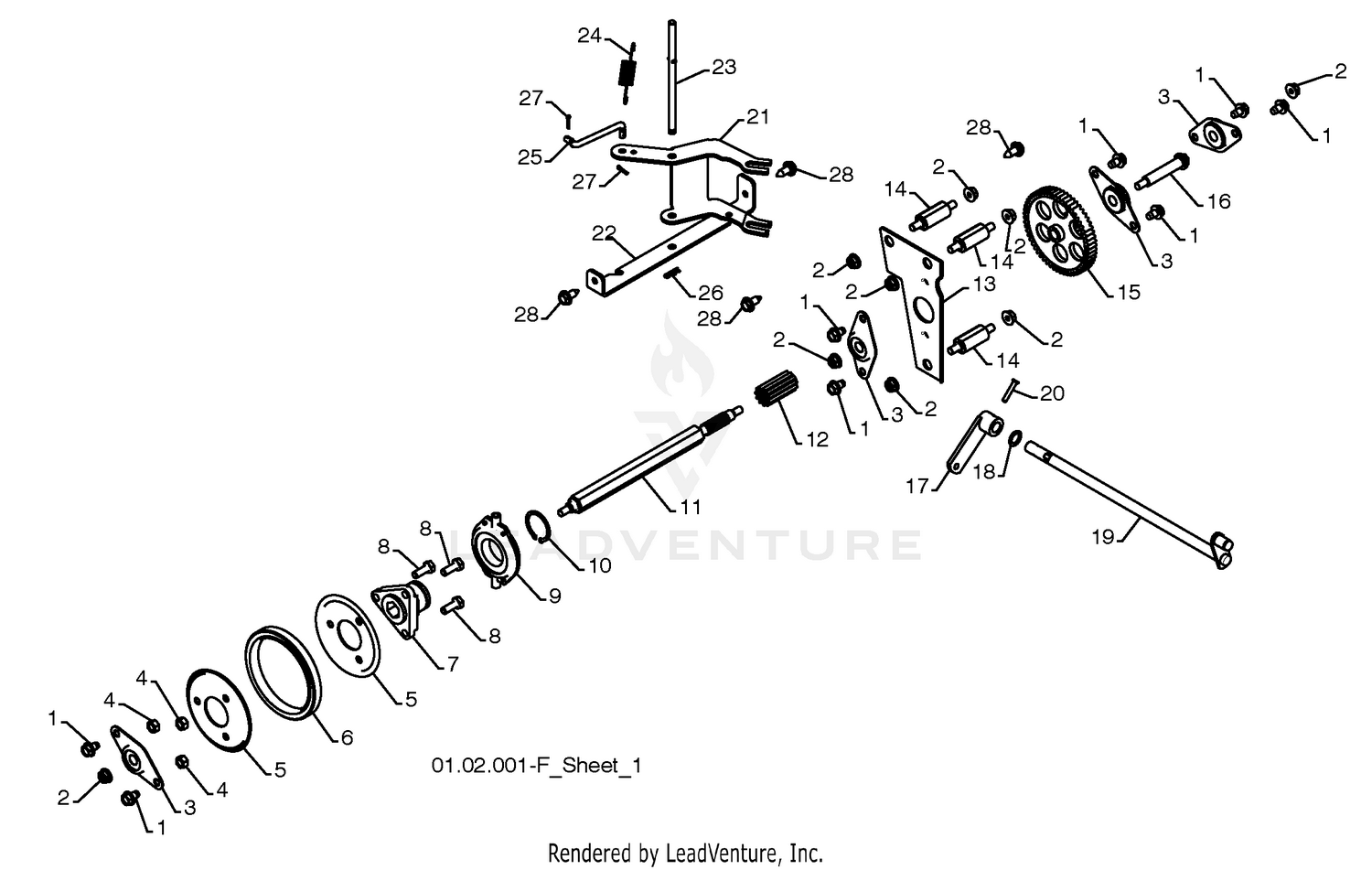

| Ref | Part Number | Description |
|---|
| 1 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 1 |
807521 |
Cylinder Assembly Price: Call Us |
| 2 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 2 |
805107 |
Bearing-Cylinder Price: Call Us |
| 3 |
532180017 |
BEARING, FLANGE Price: $22.99 |
| 4 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 5 |
532435789 |
PLATE.RUBBER.WHEEL.BLACK This part replaces 532199509. Price: $7.99 |
| 5 |
805048 |
Plug-Oil Drain Price: Call Us |
| 6 |
585021001 |
RING.RUBBER.4.5".SNOW.DR(2 2MC This part replaces 532179831. Price: $22.99 |
| 7 |
532178613 |
HUB, RUBBER WHEEL Price: $22.99 |
| 8 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99 |
| 8 |
807795 |
Breather Assembly Price: Call Us |
| 9 |
597412801 |
BEARING HOUSING ASSY TRUNNION This part replaces 532175344. Price: $29.99 |
| 10 |
583607301 |
RING.RETAINING. This part replaces 812000012. Price: $2.99 |
| 10 |
805751 |
Screw Price: Call Us |
| 11 |
532180066 |
SHAFT.HEX.LONG Price: $84.99 |
| 11 |
805362 |
Tube-Breather Price: Call Us |
| 12 |
532180065 |
GEAR, PINION Price: $12.99 |
| 13 |
532192616 |
PLATE.AUXILIARY.BLACK This part replaces 532192907. Price: $4.99 |
| 14 |
532179270 |
SPACER, PLATE Price: $9.99 |
| 15 |
532441417 |
KIT.GEAR.DRIVE.SNOW This part replaces 532180082. Price: $199.99 |
| 16 |
532180134 |
SHAFT, AUXILIARY Price: $6.99 |
| 17 |
532405485 |
ARM, AUGER CONTROL Price: $6.99 |
| 18 |
532057079 |
THRUST WASHER Price: $1.99 |
| 18 |
807628 |
Cover Assembly Price: Call Us |
| 19 |
532429668 |
KIT.CONTROL.SHAFT.SNOW This part replaces 532406109. Price: $29.99 |
| 20 |
532198580 |
CLEVIS PIN Price: $4.99 |
| 21 |
532184080 |
LEVER, SPEED CONTROL Price: $12.99 |
| 22 |
532435793 |
BRACKET.SHIFT.PIVOT.BLACK This part replaces 532187857. Price: $5.99 |
| 22 |
805696 |
Screw-Hex. Price: Call Us |
| 23 |
532178807 |
PIN, PIVOT Price: $3.99 |
| 24 |
532180135 |
SPRING, BIAS Price: $3.99 |
| 25 |
532187101 |
LINK, SPEED CONTROL Price: $64.99 |
| 26 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 27 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 84 |
91488 |
Plug-Oil Price: Call Us |
| 87 |
805054 |
Seal-Governor Shaft Price: Call Us |
| 166A |
805073 |
Stud-Hex. Drive Price: Call Us |
| 188 |
805247 |
Screw Price: Call Us |
| 189 |
805449 |
Washer Price: Call Us |
| 523 |
807977 |
Dipstick Price: Call Us |
| 525 |
807584 |
Tube-Oil Fill Price: Call Us |
| 552 |
805412 |
Bushing-Govemor Shaft Price: Call Us |
| 552A |
805413 |
Bushing-Govemor Shaft Price: Call Us |
| 572 |
805197 |
Baffle-Oil Price: Call Us |
| 614 |
805417 |
Pin-Cotter Price: Call Us |
| 616 |
807596 |
Fork-Govemor Price: Call Us |
| 634 |
805416 |
Seal-Governor Price: Call Us |
| 718 |
805103 |
Pin-Dowel Price: Call Us |
| 982 |
805030 |
Screw Price: Call Us |
| 1027 |
491056 |
Filter-Oil Price: Call Us |
