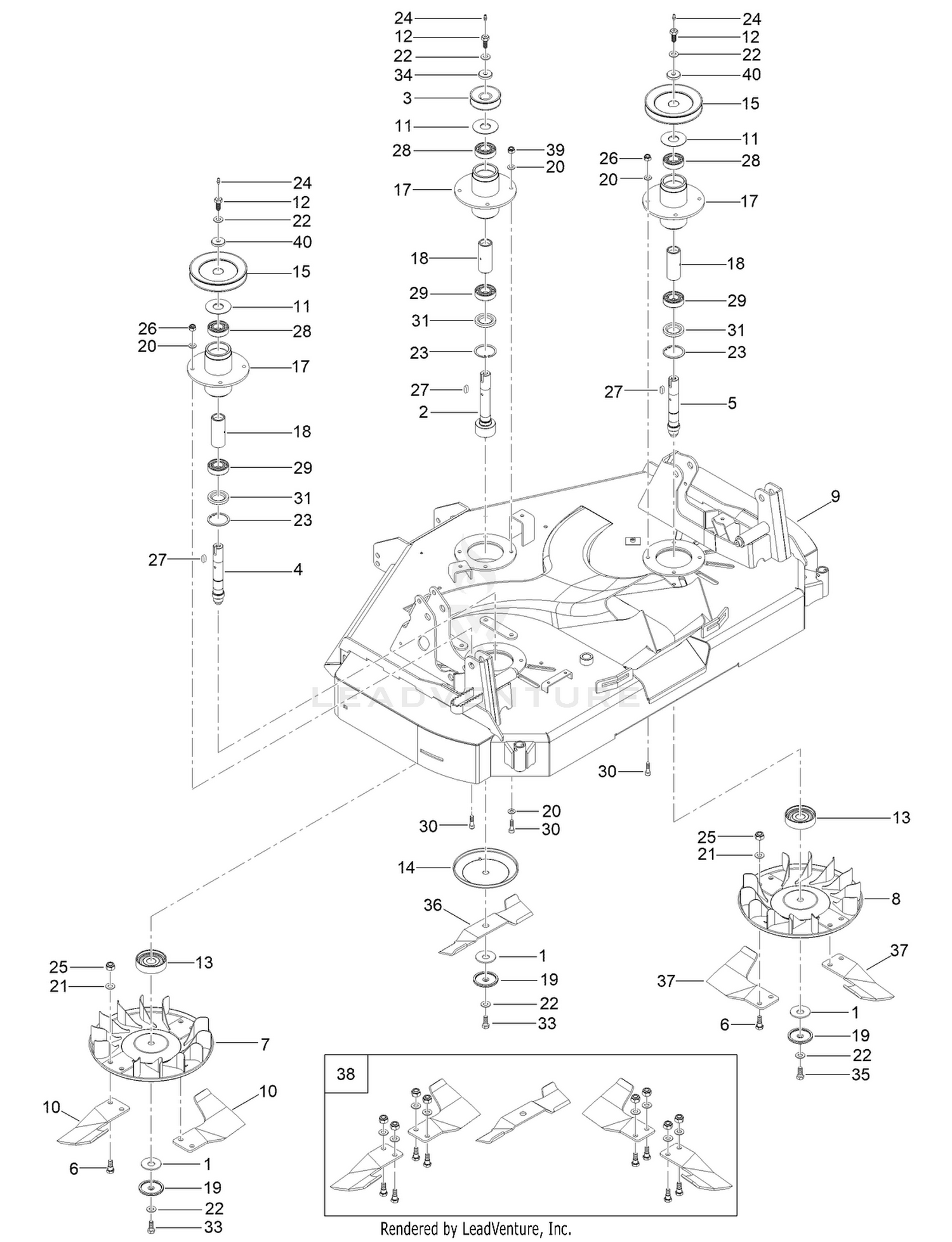

| Ref | Part Number | Description |
|---|
| 1 |
134-0579 |
SPRING-BELLEVILLE Price: $3.33 |
| 2 |
134-0630 |
SHAFT-BLADE HUB, CENTRAL Price: $46.53 |
| 3 |
134-0631 |
PULLEY Price: $30.47 |
| 4 |
134-0636 |
SHAFT-HUB, LH BLADE Price: $46.93 |
| 5 |
134-8765 |
RH BLADE SHAFT KIT (LH THREAD) This part replaces 134-0637. Price: $75.55 |
| 6 |
134-0643 |
SCREW Price: $9.54 |
| 7 |
134-0652 |
DISC-BLADE, LH Price: $109.73 |
| 8 |
134-0653 |
DISC-BLADE, RH Price: $109.73 |
| 9 |
134-0661 |
FAIRING-DECK, CUTTER Price: $2,742.18 |
| 10 |
134-0538 |
BLADE-ROTARY, SWING, LH Price: $27.98 |
| 11 |
134-0732 |
COVER Price: $9.26 |
| 12 |
134-0733 |
SCREW Price: $26.73 |
| 13 |
134-0734 |
SEAL-OIL Price: $33.25 |
| 14 |
134-0778 |
DISC-BLADE, CENTRAL Price: $14.41 |
| 15 |
134-0805 |
PULLEY Price: $67.85 |
| 17 |
134-0833 |
HUB-BLADE HOLDER Price: $56.40 |
| 18 |
134-0834 |
SPACER Price: $32.77 |
| 19 |
134-0897 |
COVER Price: $12.98 |
| 20 |
134-1045 |
WASHER Price: $0.25 |
| 21 |
134-1046 |
WASHER Price: $0.25 |
| 22 |
134-1051 |
WASHER Price: $0.32 |
| 23 |
134-1057 |
RING-RETAINING, INT Price: $1.98 |
| 24 |
134-1065 |
FITTING-GREASE Price: $1.22 |
| 25 |
134-1079 |
NUT Price: $0.42 |
| 26 |
134-1092 |
NUT Price: $0.25 |
| 27 |
134-1101 |
KEY-SHAFT Price: $0.95 |
| 28 |
134-1106 |
BEARING Price: $12.75 |
| 29 |
134-5172 |
BEARING Price: $13.74 |
| 30 |
134-1115 |
SCREW Price: $0.64 |
| 31 |
134-1159 |
SEAL-OIL Price: $3.59 |
| 33 |
134-1309 |
SCREW Price: $1.20 |
| 34 |
134-1337 |
WASHER Price: $5.45 |
| 35 |
134-1347 |
SCREW Price: $7.18 |
| 36 |
134-0536 |
BLADE-ROTARY, CTR Price: $36.00 |
| 37 |
134-0537 |
BLADE-ROTARY, SWING, RH Price: $27.98 |
| 38 |
134-0570 |
BLADE KIT Price: $199.07 |
| 39 |
134-1038 |
NUT Price: $0.32 |
