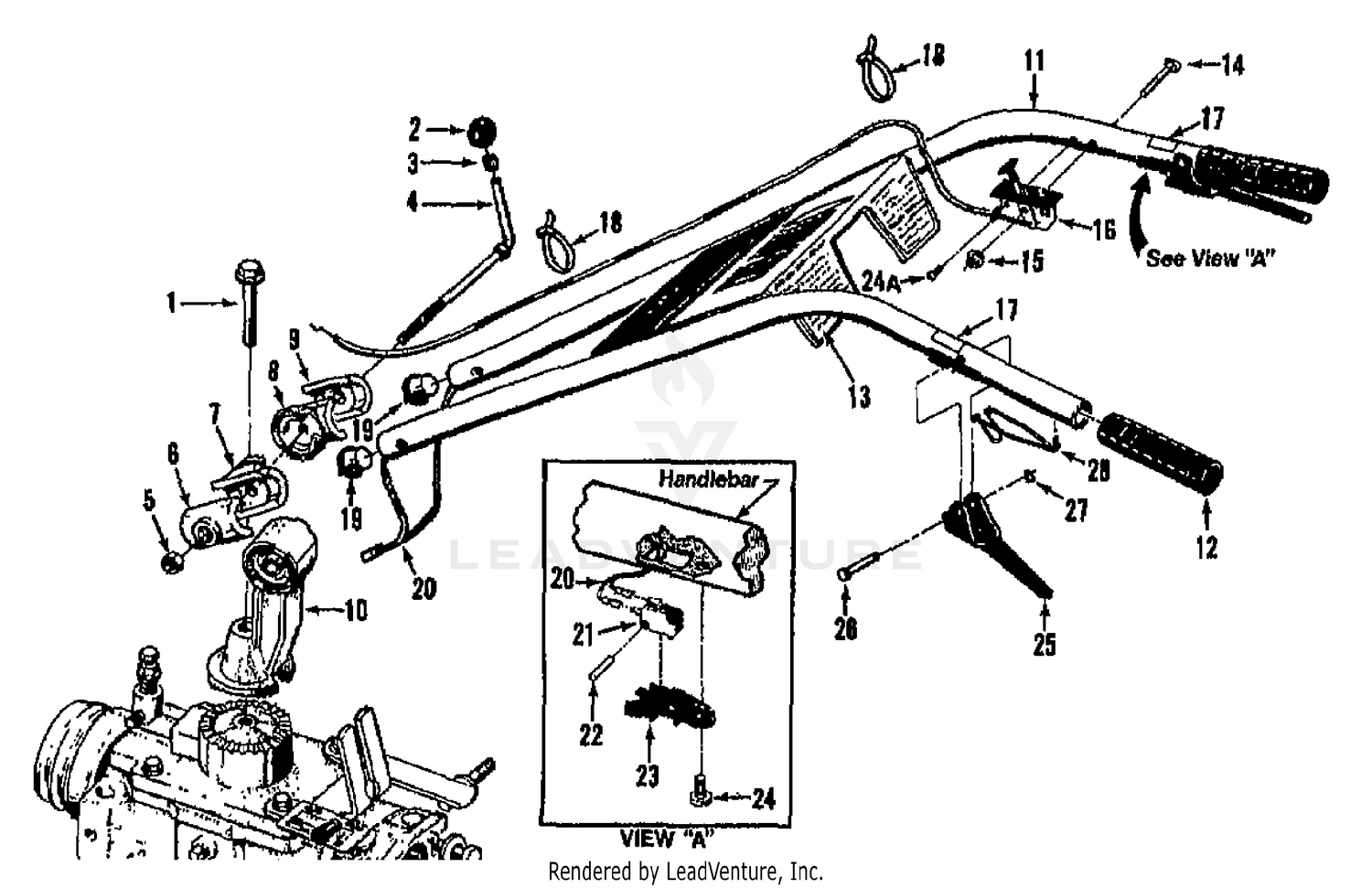

| Ref | Part Number | Description |
|---|
| 1 |
GW-9548 |
BOLT 1/2-13X3.5 FH GR5 Price: $12.42 |
| 2 |
GW-9119 |
KNOB-CONTROL Price: $10.22 |
| 3 |
GW-9120 |
RING-TOLERANCE .5325 ID Price: $5.94 |
| 4 |
GW-1881 |
STUD-H/BAR W/NUT & RING (Inc. #'s 2,3,13) Price: $54.59 |
| 5 |
712-0206 |
HEX NUT This part replaces GW-9803. Price: $3.90 |
| 6 |
1900854010 |
CLAMP-LH HORSE 1021-1 This part replaces GW-1900854010. Price: $32.05 |
| 7 |
1900856010 |
RATCHET-H/BAR RED 2542-1 This part replaces GW-1900856010. Price: $37.73 |
| 8 |
1900857010 |
RATCHET-RH RED HORSE 2542-2 This part replaces GW-1900857010. Price: $43.05 |
| 9 |
1900855010 |
CLAMP-RH HORSE 1021-2 This part replaces GW-1900855010. Price: $33.74 |
| 10 |
1900858010 |
BASE-H/BAR RED 2534A This part replaces GW-1900858010. Price: $110.25 |
| 12 |
720-04083 |
Handlebars Grip This part replaces GW-9125. Price: $12.95 |
| 13 |
GW-2715 |
HORSE CONTROL PANEL DECAL Not Available Price: |
| 14 |
GW-9547 |
BOLT-CH Not Available Price: |
| 15 |
1186389 |
NUT-HF/LK 1/4-20 ZP This part replaces GW-9844. Price: $3.05 |
| 17 |
GW-1900763 |
DECAL-FWD INTERLOCK Not Available Price: |
| 19 |
GW-9219 |
RETAINER-HARNESS H/B OPC Price: $9.09 |
| 20 |
GW-2551 |
HARNESS-WIRE OPC H Not Available Price: |
| 21 |
725-05005 |
MICRO SWITCH This part replaces GW-9250. Price: $26.56 |
| 22 |
GW-9385 |
PIN-LK .11X.58 HOR Not Available Price: |
| 23 |
625-04097 |
Switch Assembly This part replaces GW-2543. Price: $63.95 |
| 24 |
1964 |
SCREW:10-32X.5 This part replaces GW-9733. Price: $3.89 |
| 24 |
GW-90039 |
SCR-HW M10-24X.5 STH ZP Not Available Price: |
| 25 |
786-04003-0638 |
Operator Presence Control Lever This part replaces GW-2546. Price: $26.69 |
| 26 |
GW-9199 |
PIN-PIVOT OPC LEVER Price: $5.59 |
| 27 |
GW-9514 |
RING-KLIP 5304-25 Price: $6.03 |
