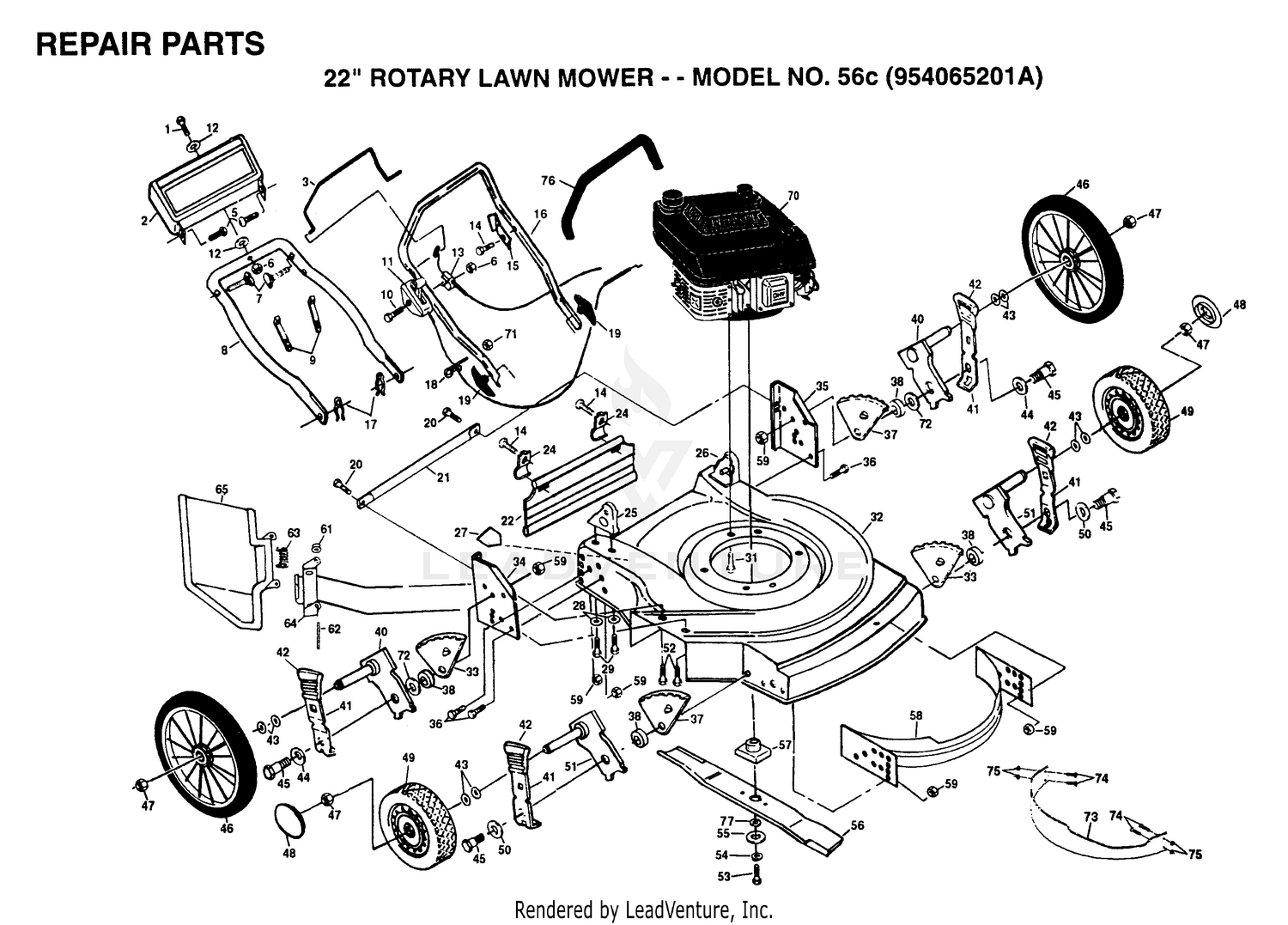

| Ref | Part Number | Description |
|---|
| 1 |
874760424 |
Bolt, Hex 1/4-20 x 1-1/2 This part replaces 532085436. Price: $2.42 |
| 2 |
532800547 |
TRIM PLATE Price: $7.15 |
| 3 |
532850735 |
CONTROL BAR/BLACK Price: $4.69 |
| 5 |
532036953 |
SCREW Price: $3.15 |
| 6 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 7 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532131959. Price: $9.99 |
| 8 |
532157081 |
HANDLE.LOWER.BLACK This part replaces 532125293. Price: $54.99 |
| 9 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 10 |
532158755 |
SCREW.PAN.HEAD This part replaces 532144929. Price: $4.99 |
| 12 |
532085723 |
WASHER PM Price: $2.99 |
| 14 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 15 |
532850733 |
BRACKET.UPSTOP This part replaces 532125162. Price: $4.99 |
| 16 |
532166268 |
UPPER HANDLE This part replaces 532125295. Price: $20.88 |
| 17 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 18 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532132001. Price: $7.99 |
| 19 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532136376. Price: $9.99 |
| 20 |
532054583 |
SCREW Price: $4.99 |
| 24 |
532192301 |
BRACKET.SKIRT.BZP This part replaces 532125207. Price: $4.99 |
| 25 |
532192983 |
KIT HANDLE BRACKET LH/RH This part replaces 532140465. Price: $27.99 |
| 26 |
532192983 |
KIT HANDLE BRACKET LH/RH This part replaces 532140466. Price: $27.99 |
| 27 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532107339. Price: $3.99 |
| 28 |
532059289 |
STEEL WASHER Price: $3.99 |
| 29 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532055187. Price: $4.99 |
| 31 |
532150406 |
BOLT 3/8-16X1-1/8 This part replaces 532850998. Price: $4.99 |
| 33 |
532800368 |
WHL ADJ BRKT LF/RR Price: $5.99 |
| 36 |
874760612 |
BOLT Price: $3.99 |
| 37 |
532140058 |
BRACKET WHL ADJ This part replaces 532800370. Price: $4.99 |
| 38 |
532401629 |
SPACER.HEIGHT.ADJUSTER This part replaces 532084920. Price: $3.99 |
| 41 |
532125066 |
SELECTOR SPRING Price: $4.99 |
| 42 |
532701037 |
SELECTOR KNOB This part replaces 532132800. Price: $4.99 |
| 43 |
532428450 |
KIT.O-RING/WASHER This part replaces 532057143. Price: $3.99 |
| 45 |
532174719 |
BOLT SHOULDER 3/8 -16X1 This part replaces 532142748. Price: $7.99 |
| 48 |
532077400 |
CAP.HUB.BLACK.WALK Price: $4.99 |
| 49 |
532435276 |
WHEEL.8X1.75.CF5SPK.RAD.BLACK This part replaces 532143593. Price: $24.99 |
| 50 |
532062335 |
WASHER.BELLEVILLE (3 2 LB) Price: $7.99 |
| 51 |
532800754 |
AXLE ARM ASSY This part replaces 532125061. Price: $5.74 |
| 52 |
817600406 |
SCREW 1/4X20 This part replaces 532851856. Price: $2.99 |
| 53 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 54 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 55 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 56 |
532141114 |
BLADE 22" Price: $24.99 |
| 59 |
596322601 |
Nuts This part replaces 532751592. Price: $2.99 |
| 61 |
532083731 |
PUSH-ON SPEED NUT Price: $3.99 |
| 62 |
532147286 |
ROD.HINGE.COMBI-C This part replaces 532851854. Price: $6.99 |
| 63 |
532411832 |
SPRING.SIDE.DISCHARGE This part replaces 532851855. Price: $4.99 |
| 64 |
532147775 |
BRACKET.HINGE ASM.W/FIN This part replaces 532125175. Price: $3.99 |
| 71 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 72 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 75 |
532069180 |
LOCKNUT Price: $2.99 |
| 76 |
585161003 |
GRIP.HANDLE.FOAM.438MM This part replaces 532850724. Price: $4.99 |
| 77 |
819131016 |
WASHER This part replaces 532067510. Price: $2.99 |
