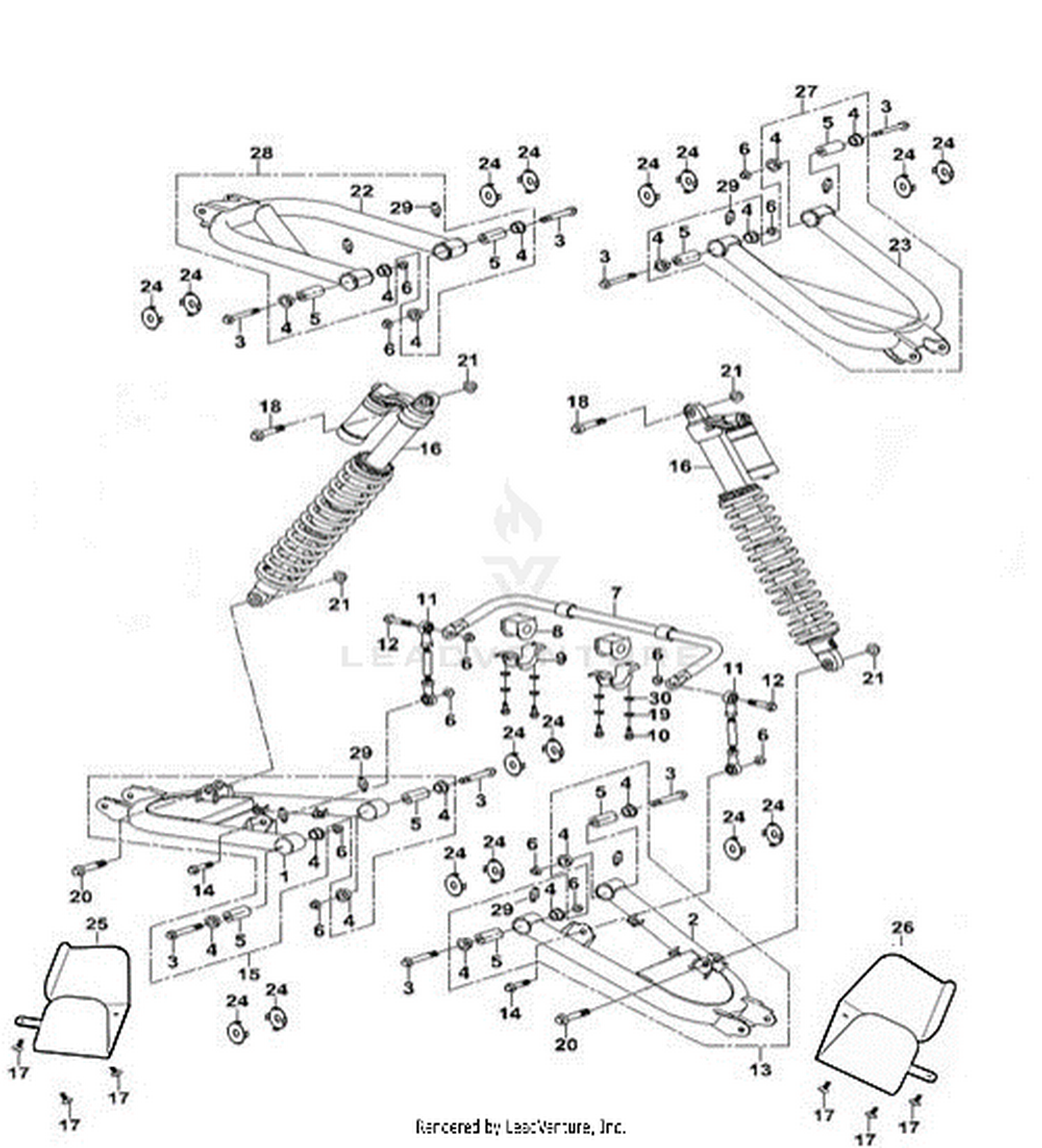

| Ref | Part Number | Description |
|---|
| 3 |
503-01554 |
HEX HEAD FLANGE BOLT M10X1.25-80 Price: $3.60 |
| 4 |
503-02821 |
SHOULDER SPACER Price: $3.48 |
| 5 |
503-02006 |
BUSHING 10.3X23X49.4 Price: $11.85 |
| 6 |
503-01375 |
LOCK NUT M10X1.25 Price: $6.13 |
| 7 |
503-01565A |
STABILIZER BAR (REAR) Price: $146.85 |
| 8 |
503-00297 |
BUSHING - RUBBER U-TYPE Price: $13.48 |
| 9 |
503-00298A |
PRESS BLOCK REAR ANTI-ROLL BAR Price: $9.36 |
| 10 |
503-00409 |
HEX FLANGE BOLT M10X1.25X20 Price: $5.36 |
| 11 |
503-01566A |
ROD BALL KIT - REAR Price: $26.92 |
| 12 |
503-00319 |
HEX FLANGE BOLT M10X1.25X50 Price: $8.97 |
| 13 |
503-02737A |
LOWER A-ARM ASSEMBLY (REAR LH) Price: $207.93 |
| 14 |
503-00044 |
HEX FLANGE BOLT M10X1.25X45 Not Available Price: |
| 15 |
503-02738A |
LOWER A-ARM ASSEMBLY (REAR RH) Price: $207.93 |
| 16 |
503-01569 |
REAR SHOCK ABSORBER Price: $406.09 |
| 17 |
503-00011 |
HEXAGON FLANGE BOLT M6X16 Price: $5.48 |
| 18 |
503-01570 |
HEX HEAD BOLT M12X1.25-70 Price: $4.09 |
| 19 |
503-00064 |
SPRING WASHER Price: $5.36 |
| 20 |
503-01571 |
HEX HEAD BOLT M12X1.25-65 Price: $3.19 |
| 21 |
503-01572 |
LOCK NUT M12X1.25 Price: $4.75 |
| 24 |
503-01556 |
BUSHING CAP I Price: $3.77 |
| 25 |
503-03759 |
CV SHIELD (REAR) (RH) Price: $164.08 |
| 26 |
503-03760 |
CV SHIELD-REAR (LH) Price: $164.08 |
| 27 |
503-02729 |
UPPER ARM ASSEMBLY (REAR LH ) Price: $192.39 |
| 28 |
503-02730 |
UPPER ARM ASSEMBLY (REAR RH) Price: $155.70 |
| 29 |
503-00305 |
SWING ARM NOZZLE Price: $11.35 |
