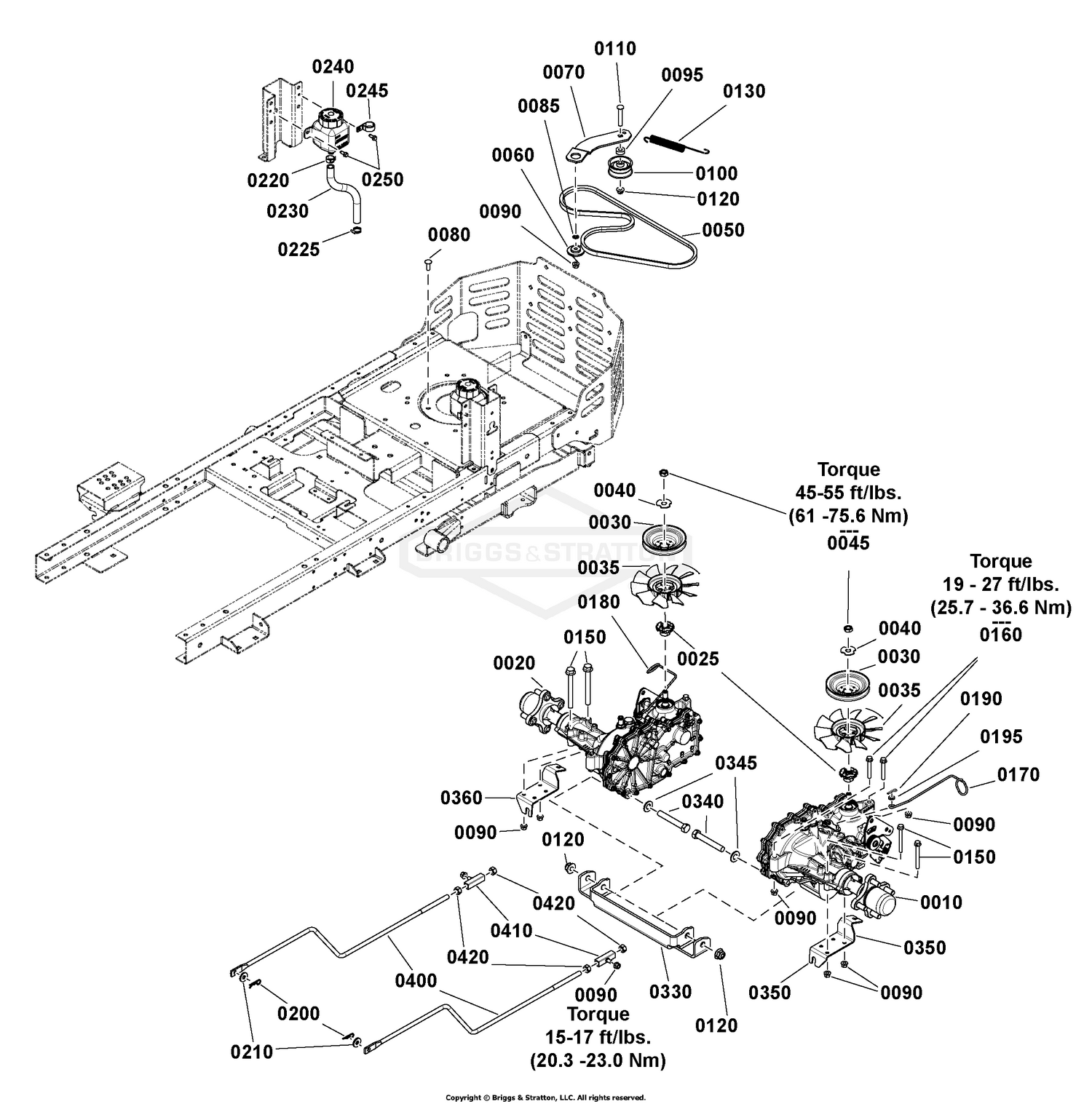

| Ref | Part Number | Description |
|---|
| 0010 |
84006912 |
TRANSAXLE, ZT3100, ZL-GPEE-UL7B-2XLX Price: $837.39 |
| 0020 |
84006913 |
TRANSAXLE, ZT3100, ZL-KPEE-UL7C-3XLX Price: $827.96 |
| 0025 |
84003847 |
HUB Price: $7.16 |
| 0030 |
1759447YP |
PULLEY, Transmission Price: $24.37 |
| 0035 |
84006902 |
FAN, 7" Price: $32.88 |
| 0040 |
5102914YP |
WASHER, ZT5400, SLOTT Price: $3.51 |
| 0045 |
5102916YP |
NUT, ZT5400 Price: $2.97 |
| 0050 |
84006539 |
BELT, 51.65" Price: $37.82 |
| 0060 |
1727935SM |
SPACER-PIVOT 0.330ID Price: $5.17 |
| 0070 |
1758044AYP |
ARM, Idler Price: $18.42 |
| 0080 |
703800 |
BOLT, CRRG, 5/16-18X1 Price: $3.19 |
| 0085 |
703297 |
RETAINER, GR5, 5/16 Price: $3.29 |
| 0090 |
703115 |
NUT Price: $3.06 |
| 0095 |
1667811SM |
SPACER Price: $3.07 |
| 0100 |
1668477SM |
PULLEY, Idler, 2.25" OD, .378 ID Price: $22.22 |
| 0110 |
1931355SM |
BOLT, Carriage, 3/8 -16 Price: $5.26 |
| 0120 |
5025394SM |
NUT, 3/8-16 HEX NYLOCK Price: $3.82 |
| 0130 |
1758045YP |
SPRING-EXTENSION Price: $7.60 |
| 0150 |
707943 |
SCREW Price: $5.00 |
| 0160 |
707944 |
SCREW, Washer Head, 5/16-18 X 2 1/4 Price: $4.29 |
| 0170 |
1759245YP |
ROD, Release, LH Price: $13.03 |
| 0180 |
1759246YP |
ROD, Release, RH Price: $13.03 |
| 0190 |
703430 |
PIN, 13X1.19 Price: $2.87 |
| 0195 |
703332 |
WASHER This part replaces 5025154. Price: $3.72 |
| 0200 |
703300 |
PIN, 3/32 X 1.6 Price: $3.50 |
| 0210 |
704128 |
WASHER Price: $4.49 |
| 0220 |
5025474SM |
CLAMP - HOSE Price: $2.97 |
| 0225 |
5021392SM |
CLAMP, #6 HOSE, STAIN Price: $4.36 |
| 0230 |
5050857X9P5YP |
HOSE, 9.50 Price: $11.89 |
| 0240 |
5100473SM |
RESERVOIR Price: $38.02 |
| 0245 |
5021500FS |
CLAMP This part replaces 5021500SM. Price: $3.94 |
| 0250 |
703054 |
SCREW, 1/4-20X0.625 Price: $3.82 |
| 0330 |
1759172AYP |
SUPPORT Price: $59.52 |
| 0340 |
84007037 |
BOLT This part replaces 5025013X20. Price: $2.24 |
| 0345 |
71072MA |
WASHER, FLAT .406X.81 This part replaces 5025156SM. Price: $3.63 |
| 0350 |
84006958 |
BRACKET Price: $20.35 |
| 0360 |
84006959 |
BRACKET Price: $20.24 |
| 0400 |
84002180 |
CONTROL ROD, Transmission Price: $56.13 |
| 0410 |
84002181 |
TRUNNION Price: $9.86 |
