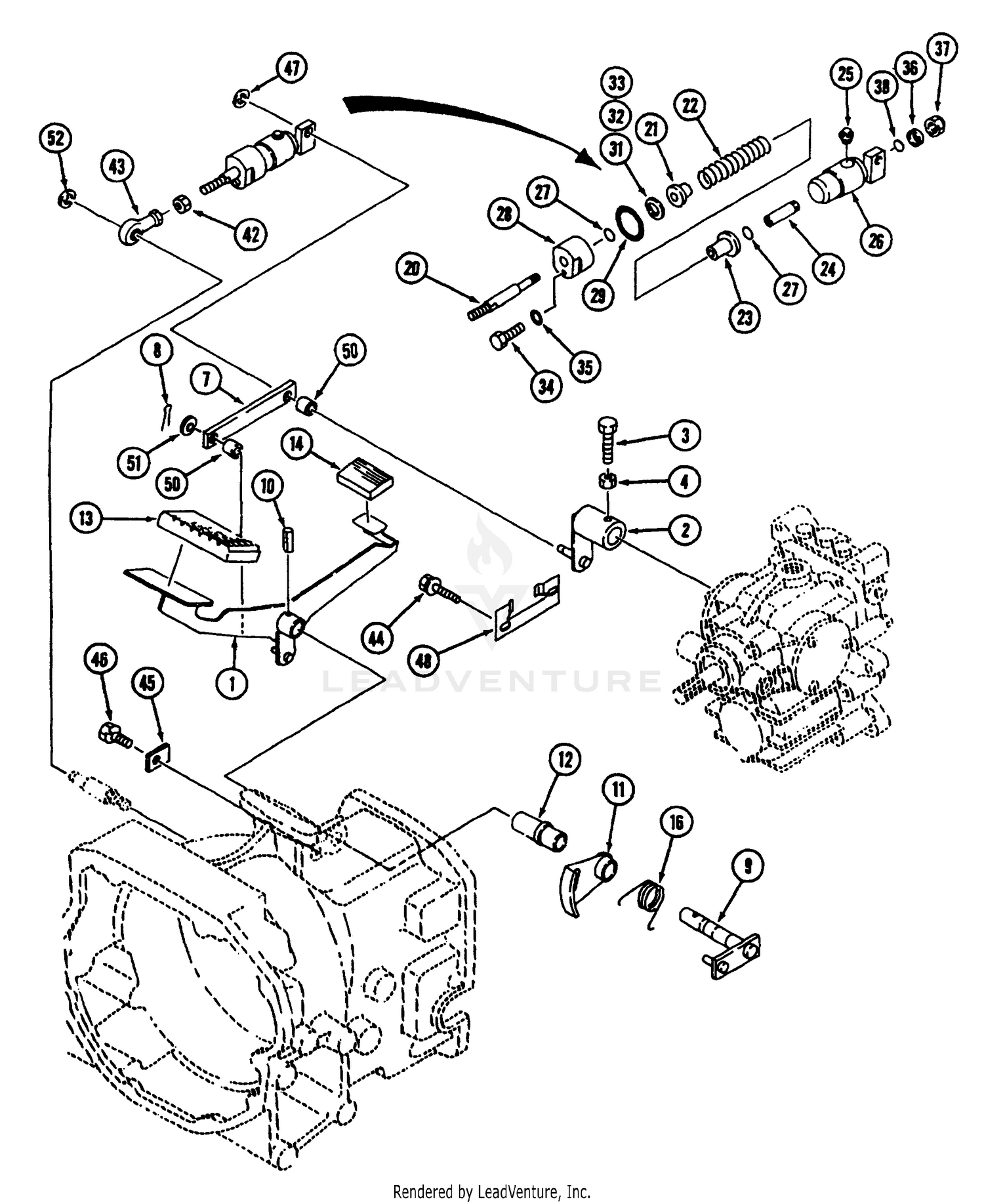

HST Control (Part 1)
Parts (68)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 532132566 | LINK DRAG Price: $37.99 |
| 1 | MA-19642301AG0 | PEDAL HST Not Available Price: |
| 2 | 874780828 | BOLT,HEX Price: $3.99 |
| 2 | MA-19642303AG0 | ARM Not Available Price: |
| 3 | MA-19632304000 | BOLT SET Not Available Price: |
| 4 | MA-A3030110003 | NUT Not Available Price: |
| 5 | 532121926 | GEAR SECTOR Price: $29.99 |
| 6 | 532121927 | BUSHING Price: $17.99 |
| 7 | 596433401 | Nuts This part replaces 873030800. Price: $2.99 |
| 7 | 94-3605 | BACKPLATE ASM Price: $531.42 |
| 7 | MA-19642308000 | PLATE Not Available Price: |
| 8 | 532126472 | CLIP INSULATOR Price: $2.45 |
| 8 | 94-3601 | IDLER GEAR ASM Price: $384.99 |
| 8 | MA-05200130020 | COTTER PIN Not Available Price: |
| 9 | 596433401 | Nuts This part replaces 873680800. Price: $2.99 |
| 9 | 94-3602 | DRIVE GEAR ASM Price: $672.24 |
| 9 | MA-19632311000 | SHAFT PEDAL Not Available Price: |
| 10 | 596029501 | Pins This part replaces 876020412. Price: $2.99 |
| 10 | 94-3606 | KEY Price: $7.52 |
| 10 | MA-05500006032 | SPRING PIN Not Available Price: |
| 11 | 59-8420 | RING Price: $6.90 |
| 11 | 596565301 | WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 11 | MA-19632313000 | ARM LOCK Not Available Price: |
| 12 | 532126847 | BUSHING.DRAGLINK (2 2) Price: $4.99 |
| 12 | 94-3603 | MOTOR BODY ASM Price: $247.19 |
| 12 | MA-19632312000 | SHAFT Not Available Price: |
| 13 | 42-2010 | PIN-DOWEL Price: $2.67 |
| 13 | 596030501 | SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 13 | MA-11931812000 | COVER,PEDAL Not Available Price: |
| 14 | 66-5730 | DISCONTINUED Price: Call Us |
| 14 | 734116541 | WASHER - 25X8.5X2.3 This part replaces 819111416. Price: $4.99 |
| 14 | MA-10320228000 | COVER PEDAL Not Available Price: |
| 15 | 596136001 | Bolts This part replaces 872110606. Price: $3.99 |
| 15 | 94-3600 | CAPSCREW Price: $6.65 |
| 16 | 59-8320 | RING-RETAINING Price: $5.29 |
| 16 | MA-19632317000 | SPRING Not Available Price: |
| 17 | 117-8976 | SEAL This part replaces 66-5710. Price: $48.67 |
| 17 | 532137096 | SUPPORT/AXLE FRONT Price: $12.99 |
| 18 | 60-5890 | WASHER Price: $4.68 |
| 19 | 92-9260 | RELIEF VALVE KIT Price: $246.39 |
| 20 | 596322601 | Nuts This part replaces 873680600. Price: $2.99 |
| 20 | MA-19632361000 | SHAFT A Not Available Price: |
| 21 | MA-19632366000 | GUIDE A Not Available Price: |
| 22 | MA-19871263000 | SPRING PEDAL Not Available Price: |
| 23 | MA-19632365000 | GUIDE B Not Available Price: |
| 24 | MA-19632362000 | SHAFT B Not Available Price: |
| 25 | MA-A6010101000 | PLUG Not Available Price: |
| 26 | MA-19632363000 | CAP A Not Available Price: |
| 27 | MA-08301100120 | O-RING Not Available This part replaces MA-08300100120. Price: |
| 28 | MA-19632364000 | CAP Not Available Price: |
| 29 | MA-08300100260 | O-RING Not Available Price: |
| 31 | MA-07310001201 | LINER Not Available Price: |
| 32 | MA-07310001203 | LINER Not Available Price: |
| 33 | MA-07310001205 | LINER Not Available Price: |
| 34 | MA-A2000105008 | BOLT Not Available Price: |
| 35 | MA-08330000500 | WASHER,SEAL Not Available Price: |
| 36 | MA-19632367000 | COLLAR Not Available Price: |
| 37 | MA-A3500106000 | NUT Not Available Price: |
| 38 | MA-08300100060 | O-RING Not Available Price: |
| 42 | MA-A3010108002 | NUT Not Available Price: |
| 43 | MA-10302436000 | LINK-BALL (RH) Not Available Price: |
| 44 | MA-H1550110020 | BOLT,W/WASHER Not Available Price: |
| 45 | MA-19631724000 | PLATE Not Available Price: |
| 46 | MA-F1550110020 | BOLT,W/SPRING WASH Not Available Price: |
| 47 | MA-07420100800 | RING, SNAP Not Available Price: |
| 48 | MA-19642332000 | PLATE Not Available Price: |
| 50 | MA-19632309000 | BUSHING Not Available Price: |
| 51 | MA-08331001000 | SEAL, WASHER Not Available Price: |
