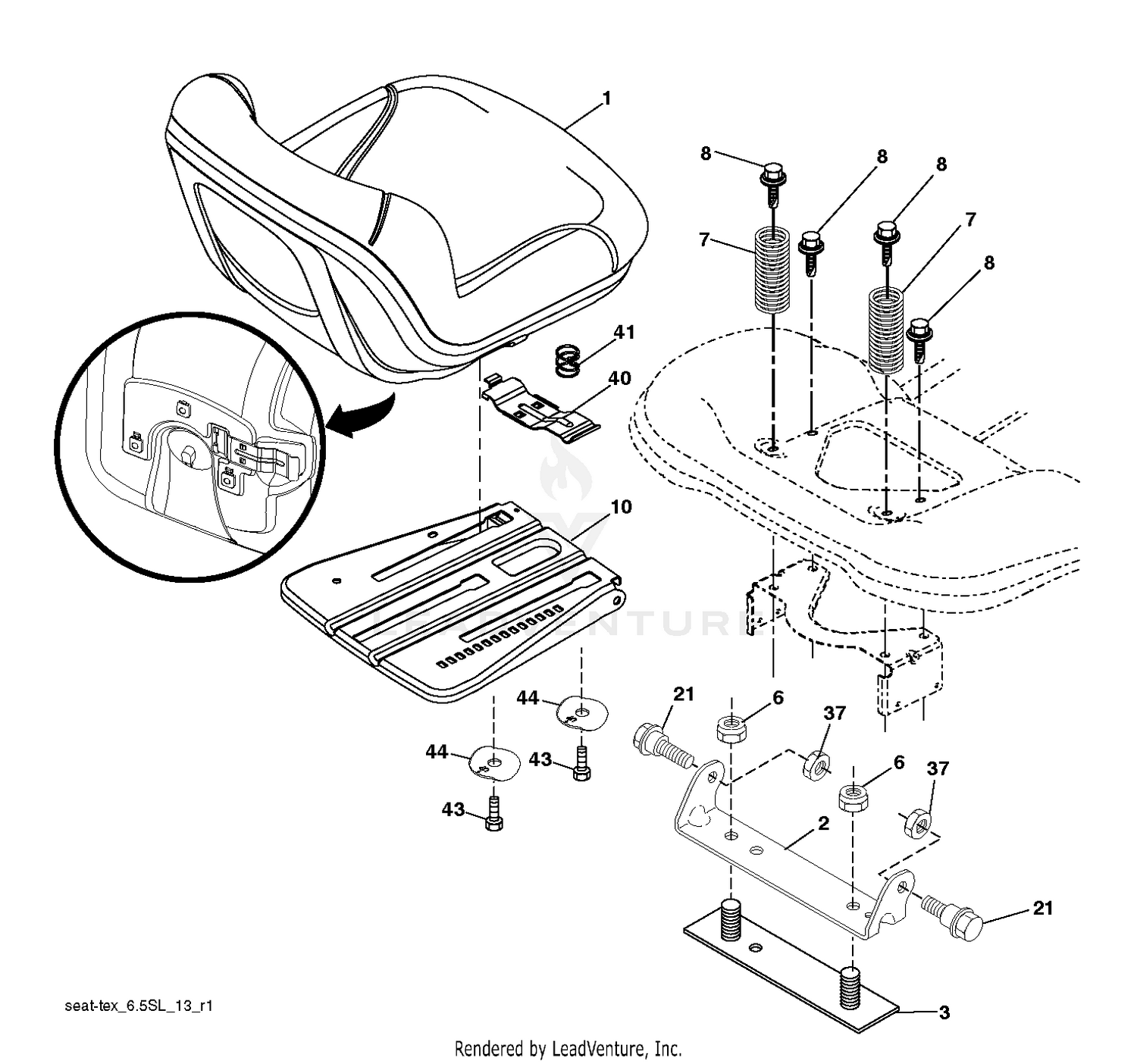

| Ref | Part Number | Description |
|---|
| 1 |
583544801 |
SEAT.TH110.HUSQ.TEX.GREY This part replaces 532439709. Price: $129.99 |
| 1 |
94-9141-01 |
SCREEN This part replaces 94-9141. Price: $546.46 |
| 2 |
119-8016 |
TOP PANEL ASM This part replaces 94-9135. Price: $1,587.76 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $11.99 |
| 3 |
119-6051 |
PANEL-HOPPER, LH This part replaces 94-9129. Price: $1,356.99 |
| 3 |
532140675 |
STRAP Price: $5.99 |
| 4 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 5 |
94-9128-01 |
PANEL-FRONT This part replaces 94-9128. Price: $168.03 |
| 6 |
13-6760 |
DECAL-CAUTION Price: $41.90 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 8 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
32128-32 |
NUT-HHF Price: $2.69 |
| 10 |
13-2930 |
DISCONTINUED Price: Call Us |
| 10 |
596768801 |
KIT.PLATE.SEAT This part replaces 587232002. Price: $49.99 |
| 11 |
119-6242 |
PIN-HINGE This part replaces 283-39. Price: $27.18 |
| 13 |
93-4003-01 |
TAILGATE ASM This part replaces 93-4003. Price: $3,420.04 |
| 14 |
13-7430 |
DECAL-WARNING Price: $67.40 |
| 15 |
3229-7 |
SCREW-CARR Price: $0.87 |
| 16 |
13-7340-01 |
STIFFENER-LH This part replaces 13-7340. Price: $300.82 |
| 17 |
67-7920 |
DECAL Price: $96.70 |
| 18 |
93-4031-01 |
STRAP-HOPPER, TOP This part replaces 93-4031. Price: $74.75 |
| 19 |
93-4042-01 |
SUPPORT-HOPPER This part replaces 93-4042. Price: $310.58 |
| 20 |
3256-55 |
WASHER-FLAT Price: $3.69 |
| 21 |
12-8810 |
SPRING-EXTENSION Price: $26.98 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER Price: $2.99 |
| 22 |
32122-42 |
SCREW Price: $1.69 |
| 23 |
94-9139-01 |
PANEL-BOTTOM, LH This part replaces 94-9139. Price: $489.00 |
| 24 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 25 |
13-3710 |
WASHER Price: $3.05 |
| 26 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 27 |
325-6 |
SCREW-HH Price: $1.42 |
| 28 |
94-9138-01 |
PANEL-BOTTOM, CENTER This part replaces 94-9138. Price: $244.33 |
| 29 |
94-9137-01 |
PANEL-BOTTOM, RH This part replaces 94-9137. Price: $489.00 |
| 30 |
3250-32 |
SCREW-PPH Price: $0.54 |
| 31 |
93-4030-01 |
STRAP-HOPPER, FRONT This part replaces 93-4030. Price: $22.13 |
| 32 |
3258-165 |
SCREW-PRH Price: $4.07 |
| 33 |
93-0184 |
DECAL-HOPPER Price: $41.42 |
| 34 |
106-9665 |
TUBE & CAP ASM This part replaces 65-5871. Price: $17.71 |
| 35 |
65-5890 |
CAP-END Price: $8.09 |
| 36 |
2412-102 |
CLAMP-R Price: $6.85 |
| 37 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 37 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 38 |
323-6 |
SCREW-HH Price: $0.66 |
| 39 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 40 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 40 |
595088102 |
Handles This part replaces 532197661. Price: $4.99 |
| 41 |
325-7 |
SCREW-HH Price: $1.53 |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $3.99 |
| 42 |
93-7708 |
STRIP-SEAL Price: $10.93 |
| 43 |
874760612 |
BOLT Price: $3.99 |
| 44 |
501051801 |
WASHER.WINGED.3/8ID.1.5OD Price: $3.99 |
