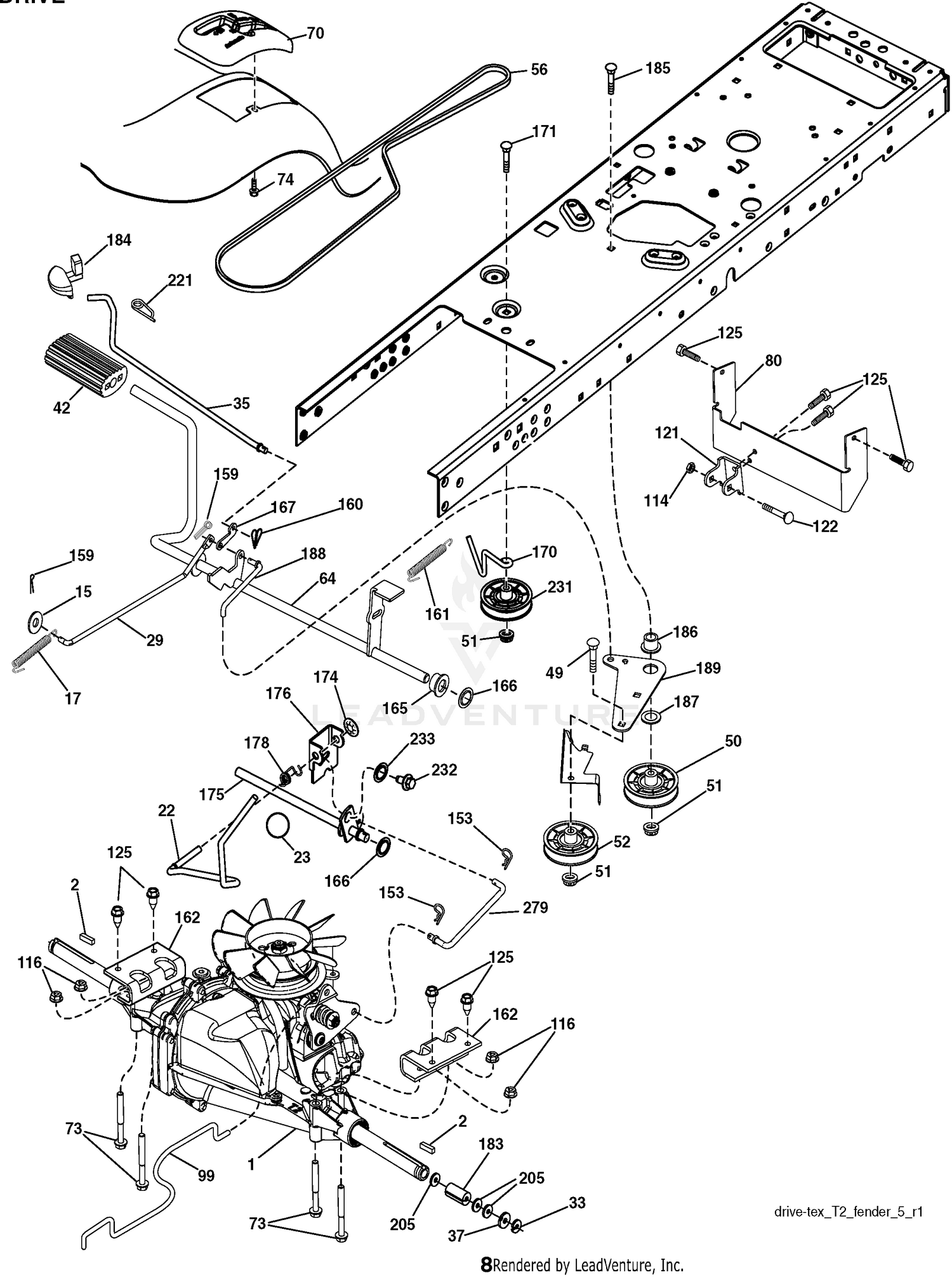

| Ref | Part Number | Description |
|---|
| 1 |
418219 |
Transaxle, Hydro Gear T2 (See Transaxle Breakdown) Price: Call Us |
| 2 |
123583X |
Key Square Price: Call Us |
| 2 |
94-3657 |
SPOOL ASM Price: $478.74 |
| 3 |
94-8175 |
CONTROL-FLOW, ROTARY Price: $264.64 |
| 4 |
95-5634 |
CARTRIDGE-LOGIC, SPOOL This part replaces 69-4120. Price: $297.27 |
| 5 |
94-3655 |
VALVE-RELIEF Price: $208.08 |
| 6 |
125-2155 |
VALVE-RELIEF, CARTRIDGE This part replaces 104-1200. Price: $302.89 |
| 7 |
161-8352 |
VALVE AND COIL KIT This part replaces 93-7494. Price: $347.93 |
| 8 |
161-8350 |
COIL ASM This part replaces 83-2010. Price: $111.53 |
| 9 |
106-1024 |
PLUG-LEAK, ZERO Price: $14.21 |
| 12 |
106-1026 |
PLUG-HYD Price: $11.75 |
| 13 |
106-9084 |
PLUG-ORIFICE (.020 DIA) This part replaces 95-5999. Price: $67.12 |
| 14 |
94-3660 |
DETENT KIT Price: $309.61 |
| 15 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 15 |
94-6378 |
DETENT KIT Price: $397.08 |
| 17 |
197296 |
Spring, Brake Price: Call Us |
| 22 |
197660 |
Rod Shift Price: Call Us |
| 23 |
409154X421 |
Knob Price: Call Us |
| 29 |
408391 |
Rod, Brake Price: Call Us |
| 33 |
12000001 |
Ring E Price: Call Us |
| 35 |
197722 |
Rod, Brake, Park Price: Call Us |
| 37 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 42 |
8883R |
Cover, Foot Pedal Price: Call Us |
| 49 |
72110614 |
Bolt Price: Call Us |
| 50 |
194327 |
Pulley Idler Flat Price: Call Us |
| 51 |
73900600 |
Lock Nut 3/8-16 Price: Call Us |
| 52 |
194326 |
Idler V-Groove 910" Offset Price: Call Us |
| 56 |
125907X |
V-Belt, Drive Price: Call Us |
| 64 |
196200 |
Shaft Asm. Pedal Brake Control Price: Call Us |
| 70 |
193220X428 |
Console Price: Call Us |
| 73 |
74490544 |
Bolt Hex 5/16-18 Gr. 5 Price: Call Us |
| 74 |
142432 |
Screw 1/4 x 1/2 Price: Call Us |
| 80 |
408393 |
Strap Torque Price: Call Us |
| 99 |
408418 |
Rod Spring Bypass Price: Call Us |
| 114 |
73800500 |
Nut Lock 5/16-18 unc Price: Call Us |
| 116 |
73900500 |
Nut Lock Hex Flange 5/16-18 Price: Call Us |
| 121 |
175611 |
Bracket Strap Torque Price: Call Us |
| 122 |
72010520 |
Bolt 5/16-18 x 2.50 Price: Call Us |
| 125 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 153 |
4497H |
Retainer Spring 1" Price: Call Us |
| 159 |
76020412 |
Pin Cotter 1/8 x 3/4 Price: Call Us |
| 160 |
169484 |
Retainer Clip Price: Call Us |
| 161 |
105709X |
Spring, Return, Clutch Price: Call Us |
| 162 |
408784 |
Adapter Transaxle Price: Call Us |
| 165 |
196212 |
Bushing Price: Call Us |
| 166 |
197290 |
Nut Push .625 Price: Call Us |
| 167 |
405257 |
Latch Brake Parking Price: Call Us |
| 170 |
413430 |
Keeper Belt Centerspan Price: Call Us |
| 171 |
72110622 |
Bolt Price: Call Us |
| 174 |
197289 |
Nut Push Price: Call Us |
| 175 |
408539 |
Shaft Asm Shift Price: Call Us |
| 176 |
196214 |
Arm Clevis Rod Shift Price: Call Us |
| 178 |
197456 |
Spring Shift Price: Call Us |
| 183 |
156972 |
Spacer Axle Price: Call Us |
| 184 |
198403X505 |
Handle Parking Brake Price: Call Us |
| 185 |
72110620 |
Bolt Price: Call Us |
| 186 |
194321 |
Spacer Retainer Price: Call Us |
| 187 |
19133210 |
Washer Price: Call Us |
| 188 |
194323 |
Link Clutch Ground Drive Price: Call Us |
| 189 |
194317 |
Bellcrank Ground Drive Price: Call Us |
| 190 |
194318 |
Keeper Bellcrank Ground Drive Price: Call Us |
| 205 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 221 |
403187 |
Retainer Spring Clip Handle Price: Call Us |
| 231 |
407287 |
Idler V-Groove 1.688" Offset Price: Call Us |
| 232 |
74780716 |
Bolt 7/16-14 x 1 Gr 5 Price: Call Us |
| 233 |
405296 |
Washer Serrated Price: Call Us |
