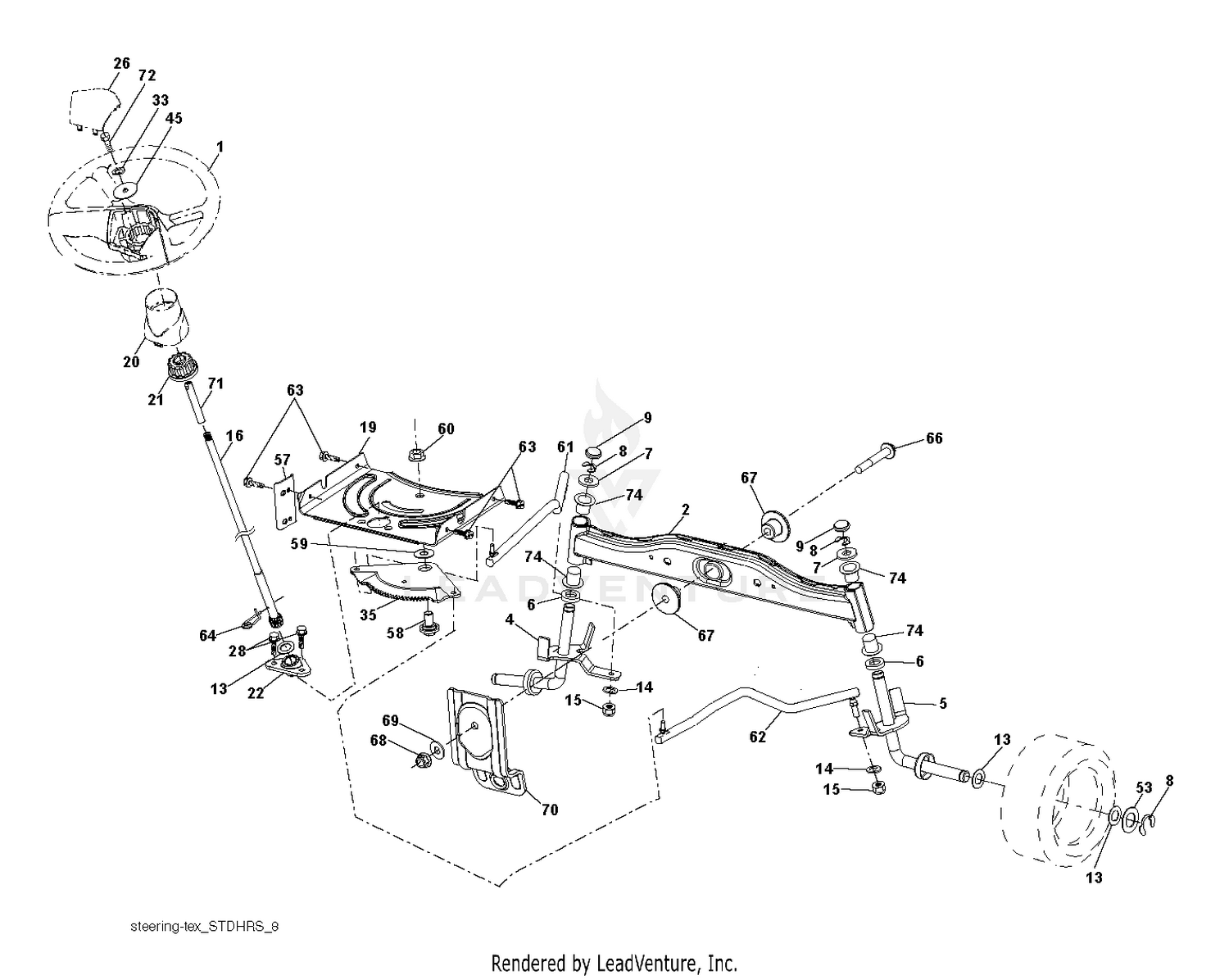

| Ref | Part Number | Description |
|---|
| 1 |
532424543 |
WHEEL.STEERING.HARD.RIM.BLAC Price: $27.99 |
| 1 |
98-0647 |
HOSE-HYD, TRACTION, RH (LOWER) Price: $162.42 |
| 2 |
532418168 |
AXLE HALF ASM-WELDED Price: $33.99 |
| 2 |
63-4050 |
FITTING-HYD Price: $137.82 |
| 3 |
70-7130 |
LINE-TUBE Price: $141.98 |
| 4 |
532416845 |
Price: $20.99 |
| 4 |
98-0646 |
HOSE-HYD, TRACTION, RH (UPPER) Price: $184.17 |
| 5 |
532416846 |
Price: $20.99 |
| 5 |
83-1200 |
TUBE-TRACTION, LH (LOWER) Price: $110.49 |
| 6 |
107-9519 |
HYD HOSE ASM This part replaces 98-2151. Price: $83.34 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 7 |
532121748 |
WASHER Price: $1.99 |
| 7 |
98-0649 |
HOSE-HYD Price: $67.35 |
| 8 |
340-138 |
FITTING-HYD, 45 DEG Price: $31.15 |
| 8 |
812000029 |
RING CLIP Price: $1.99 |
| 9 |
115-5296 |
NEEDLE VALVE ASM This part replaces 93-2556. Price: $427.28 |
| 9 |
532121232 |
CAP.SPINDLE Price: $1.99 |
| 10 |
340-18 |
FITTING-HYD, 90 DEG Price: $38.93 |
| 11 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 13 |
532121749 |
WASHER Price: $1.99 |
| 14 |
539990118 |
WASHER.3/8 This part replaces 810040600. Price: $1.49 |
| 14 |
98-2150 |
HOSE-HYD Price: $75.17 |
| 15 |
105-3800 |
CONTROL VALVE ASM Price: $4,089.31 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $1.49 |
| 16 |
304-61 |
CLAMP-HOSE Price: $6.08 |
| 16 |
532429373 |
SHAFT.STEER.3/4.PLATED.TEX Price: $41.99 |
| 17 |
32128-20 |
NUT-HF Price: $0.99 |
| 19 |
532194729 |
PLATE.STEER.DDL.NLT/NG Price: $12.99 |
| 19 |
83-1670 |
FITTING ASM Price: $128.24 |
| 20 |
532424702 |
Price: Call Us |
| 20 |
95-5986 |
HYD HOSE ASM Price: $77.25 |
| 21 |
532437747 |
STEERING.WHEEL.ADAPTER This part replaces 532186737. Price: $19.99 |
| 22 |
340-16 |
FITTING-HYD, 90 DEG Price: $54.23 |
| 22 |
532420537 |
STEERING.SUPT.LOWER. Price: $4.99 |
| 23 |
71-0990 |
ORIFICE ( .0465 ONE-WAY) Price: $56.83 |
| 24 |
63-4080 |
FITTING-MANIFOLD Price: $236.16 |
| 25 |
322-14 |
SCREW-HH Price: $1.01 |
| 26 |
532424691 |
INSERT, WHEEL STEERING Price: $4.99 |
| 26 |
63-4030 |
TUBE-HYD Price: $148.62 |
| 27 |
63-4020 |
TUBE-HYD Price: $176.67 |
| 28 |
340-101 |
FITTING-HYD, 45 DEG Price: $31.00 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 30 |
95-5987 |
HOSE-HYD Price: $68.07 |
| 32 |
12-3270 |
SCREW Price: $3.09 |
| 33 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 33 |
810040500 |
LOCKWASHER Price: $2.99 |
| 34 |
98-0648 |
HYD HOSE ASM Price: $166.79 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $19.99 |
| 35 |
98-2153 |
HYD HOSE ASM Price: $126.10 |
| 36 |
2412-41 |
CLAMP-R Price: $4.82 |
| 37 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 38 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 39 |
83-1890 |
SWITCH-BALL Price: $63.08 |
| 40 |
38-0410 |
NUT-HEX Price: $5.77 |
| 45 |
819113812 |
WASHER.11/32 Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $2.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $2.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $4.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $3.99 |
| 60 |
873971000 |
NUT FLANGE LOCK 5/8-11 Price: $2.99 |
| 61 |
532194740 |
DRAGLINK.LH.BALLSTUD.D Price: $40.99 |
| 62 |
532194741 |
DRAGLINK.RH.BALLSTUD.D Price: $40.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.49 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $2.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $2.99 |
| 67 |
532194737 |
BUSHING.PM.FRONT AXLE Price: $3.69 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $2.99 |
| 70 |
532417065 |
Price: $5.99 |
| 71 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $9.99 |
| 72 |
532428982 |
BOLT 5/16-18 X 4 W/PATCH Price: $2.99 |
