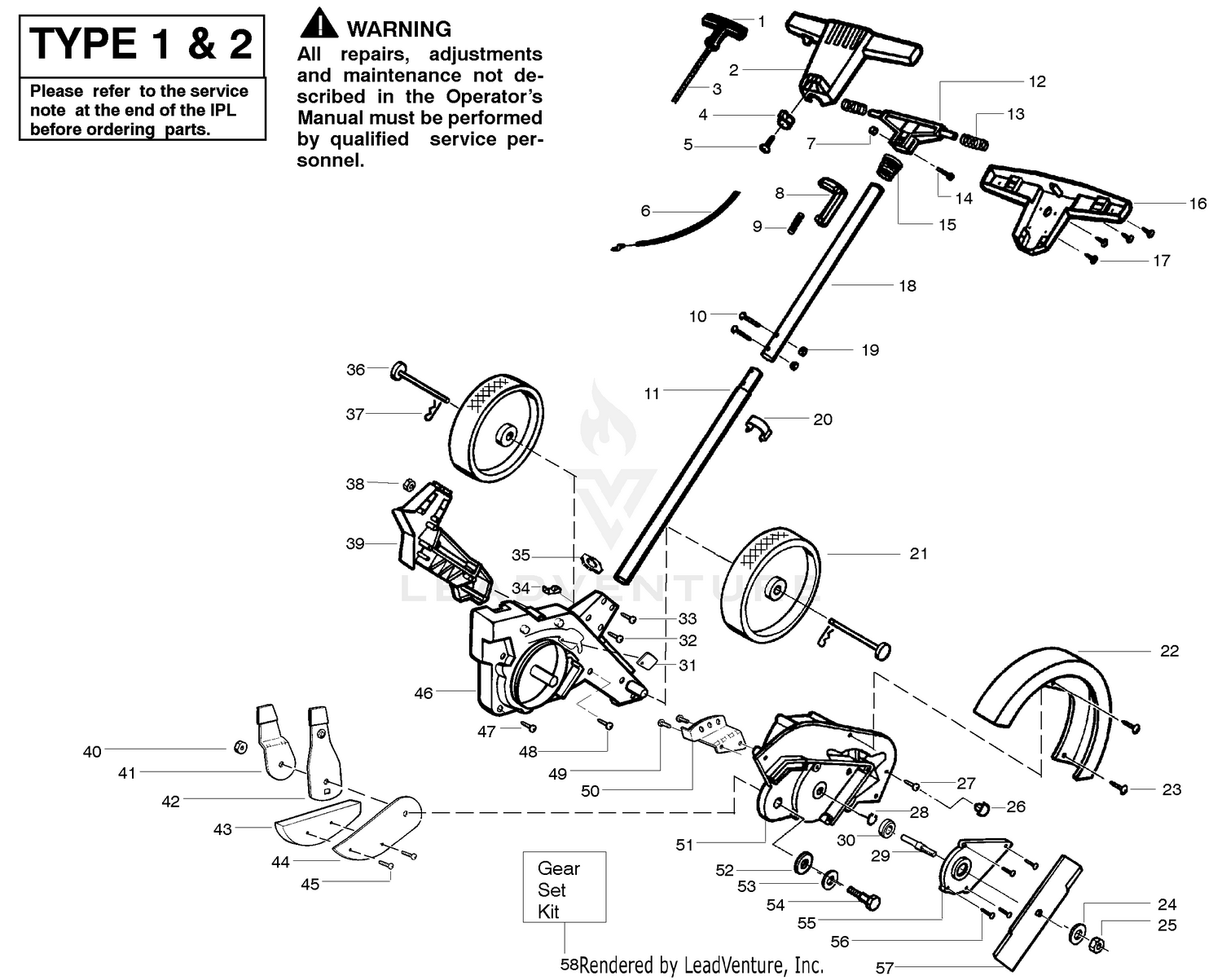

Handle & Controls Type 1-2
Parts (107)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3290-134 | SCREW Price: $0.27 |
| 1 | 530027569 | Handle-Starter Price: $1.99 |
| 2 | 2412-31 | CLAMP-BODEN Price: $1.56 |
| 2 | 530036677 | Handle-Upper Price: $8.99 |
| 3 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 3 | 530069421 | Kit-Rope Price: $2.99 |
| 4 | 26-3800 | DISCONTINUED Price: Call Us |
| 4 | 530036985 | Eyelet-Handle Price: $1.99 |
| 5 | 26-0050 | DISCONTINUED Price: Call Us |
| 5 | 530015241 | Screw Price: $1.99 |
| 6 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 6 | 530036674 | Assy-Throttle Cable Price: $11.99 |
| 7 | 3217-6 | NUT-HEX Price: $1.19 |
| 7 | 530015768 | Locknut Price: $1.99 |
| 8 | 3274-10 | SCREW-HSH Price: $0.47 |
| 8 | 530036673 | Trigger-Throttle Price: Call Us |
| 9 | 18-6430 | KEY-SQUARE Price: $3.56 |
| 9 | 530036982 | Spring-Throttle Price: $1.99 |
| 10 | 26-2100 | DISCONTINUED Price: Call Us |
| 10 | 530015999 | Bolt-Shoulder Tube Price: $1.99 |
| 11 | 3256-25 | WASHER-FLAT Price: $0.25 |
| 11 | 530095103 | Tube-Lower Handle Price: $11.99 |
| 12 | 3272-21 | PIN-COTTER Price: $3.09 |
| 12 | 530036983 | Coupling-Handle Price: $2.99 |
| 13 | 32121-24 | PIN-SPRING Price: $0.95 |
| 13 | 530036981 | Spring-Isolator Price: $1.99 |
| 14 | 26-2810 | DISCONTINUED Price: Call Us |
| 14 | 530015774 | Screw Price: $1.99 |
| 15 | 26-9990 | DISCONTINUED Price: Call Us |
| 15 | 530036984 | Spring-Handle Price: $2.99 |
| 16 | 218-461 | NUT-HH Price: $2.50 |
| 16 | 530036676 | Handle-Lower Price: $6.99 |
| 17 | 321-5 | SCREW-HH Price: $0.22 |
| 17 | 503210719 | Screw Price: $1.99 |
| 18 | 25-9410 | DISCONTINUED Price: Call Us |
| 18 | 530095104 | Tube-Upper Handle Price: $11.99 |
| 19 | 23-8010 | INTERLOCK SWITCH Price: $89.91 |
| 19 | 530015768 | Locknut Price: $1.99 |
| 20 | 110-9650 | LEAF SPRING ASM This part replaces 25-9430. Price: $33.06 |
| 20 | 530015982 | Clamp-Cable Price: $0.99 |
| 21 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 21 | 530095663 | Wheel-Rear Price: $5.99 |
| 22 | 251-259 | BEARING-BALL Price: $13.67 |
| 22 | 530095629 | Shield-Front Blade Price: $7.99 |
| 23 | 25-9420 | LEAF SPRING *B Price: $31.95 |
| 23 | 530015843 | Screw Price: $1.99 |
| 24 | 322-17 | SCREW-HH Price: $2.62 |
| 24 | 530016281 | Washer-Belleville Price: $1.99 |
| 25 | 32104-95 | SCREW-HWH This part replaces 32104-42. Price: $0.41 |
| 25 | 530016032 | Nut Price: $1.99 |
| 26 | 3257-32 | KEY-WOODRUFF Price: $2.52 |
| 26 | 530036935 | Plug-Dust Price: Call Us |
| 27 | 32121-6 | PIN-ROLL, SLOTTED Price: $0.28 |
| 27 | 530015770 | Screw Price: Call Us |
| 28 | 325-7 | SCREW-HH Price: $1.53 |
| 28 | 530037625 | Retainer Ring-Flat Price: $0.99 |
| 29 | 26-2950 | WIRE-STANDOFF Price: $10.28 |
| 29 | 530095070 | Shaft-Output Price: $14.99 |
| 30 | 237-79 | O-RING Price: $5.46 |
| 30 | 530016042 | Washer-Thrust Price: $1.99 |
| 31 | 21-5450 | DISCONTINUED SEE PB#945 Price: Call Us |
| 31 | 530038308 | Retainer-Fuel Line Price: $1.99 |
| 32 | 530015886 | Screw Price: $1.99 |
| 32 | AU218-5106 | FITTING-ELB 90 This part replaces 353-371. Price: $10.29 |
| 33 | 237-42 | O-RING Price: $2.78 |
| 33 | 530015774 | Screw Price: $1.99 |
| 34 | 103-1802 | FITTING-ELBOW, 90 DEG This part replaces 353-374. Price: $22.99 |
| 34 | 530015922 | Nut-Speed Price: $1.99 |
| 35 | 353-511 | FITTING-HYD, 90 DEG Price: $31.93 |
| 35 | 530019199 | Gasket-Tube Price: $1.99 |
| 36 | 323-6 | SCREW-HH Price: $0.66 |
| 36 | 530015997 | Pin-Axle Price: $1.99 |
| 37 | 3253-5 | WASHER-LOCK Price: $0.29 |
| 37 | 530016002 | Bridge-Pin Price: $1.99 |
| 38 | 37-8030-03 | PUMP MOUNT This part replaces 21-5280. Price: $372.16 |
| 38 | 530015768 | Locknut Price: $1.99 |
| 39 | 3253-7 | WASHER-LOCK Price: $0.27 |
| 39 | 530038301 | Cover-Axle Price: $5.99 |
| 40 | 3217-9 | NUT-HH Price: $0.37 |
| 40 | 530016063 | Nut-Swing Arm Price: $1.99 |
| 41 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 42 | 3247-4 | SCREW-SET Price: $0.54 |
| 42 | 530053792 | Assy-Lever Adjustment Price: $4.99 |
| 43 | 3217-7 | NUT-HEX Price: $0.28 |
| 43 | 530054071 | Foot-Skid Price: $4.99 |
| 44 | 18-6490 | ENGINE BASE *B Price: $129.36 |
| 44 | 530053501 | Arm-Swing Price: $2.99 |
| 45 | 323-8 | SCREW-HH Price: $1.20 |
| 45 | 530015814 | Screw Price: $1.99 |
| 46 | 3218-3 | NUT-JAM Price: $0.25 |
| 46 | 530038299 | Housing-Fan Price: $14.99 |
| 47 | 3246-2 | SCREW-SET, HSH Price: $0.54 |
| 47 | 530016386 | Screw Price: $5.99 |
| 48 | 26-7080 | Drum Price: Call Us |
| 48 | 530015940 | Screw Price: $1.99 |
| 49 | 26-6950 | Shoe Price: Call Us |
| 49 | 530015814 | Screw Price: $1.99 |
| 50 | 26-7090 | DISCONTINUED- BP 485 Price: Call Us |
| 50 | 530053544 | Plate-Back Price: $2.99 |
| 51 | 530053626 | Assy-Gear Box Price: $79.99 |
| 52 | 530016040 | Washer-Bolt Adjust Price: $1.99 |
| 53 | 530016280 | Washer-Wave Price: $1.99 |
| 54 | 530016275 | Bolt-Shoulder Price: $1.99 |
| 55 | 530036934 | Assy-Bearing Holder Price: $44.99 |
| 56 | 530015814 | Screw Price: $1.99 |
| 57 | 530095086 | Blade Price: $4.99 |
| 58 | 530071258 | Kit-Gear Set Price: $14.99 |
