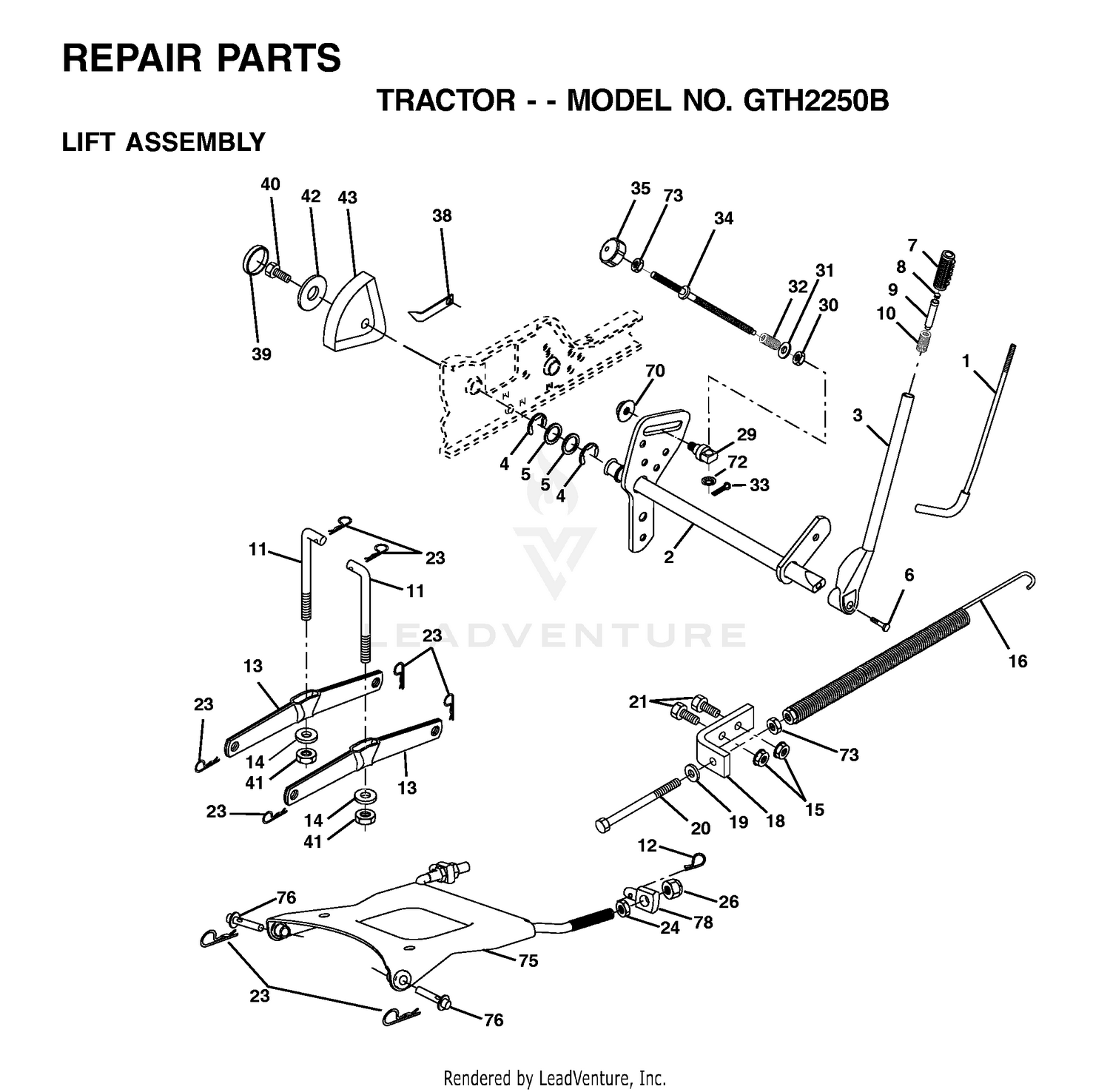

| Ref | Part Number | Description |
|---|
| 1 |
532121006 |
LEVER ROD LT Price: $24.99 |
| 2 |
93-7977 |
SEAL Price: $74.14 |
| 3 |
532159189 |
LEVER ASSY-LIFT RH Price: $79.99 |
| 3 |
93-7978 |
ROD-PULL Price: $171.95 |
| 4 |
812000022 |
E-RING Price: $3.99 |
| 4 |
93-7983 |
PIN-CLEVIS Price: $3.19 |
| 5 |
819292016 |
Washer 29/32 x 1 - 1/4 x 16 Ga. Price: $6.99 |
| 5 |
93-7980 |
LINK Price: $13.85 |
| 6 |
871110624 |
Bolt, Fin Hex 3/8-16 x 1-1/12 Price: $2.99 |
| 6 |
93-7979 |
PIN-HITCH Price: $1.70 |
| 7 |
532125631 |
GRIP HANDLE Price: $6.99 |
| 7 |
93-7986 |
DISC-STATIONARY Price: $26.25 |
| 8 |
104-4278 |
DISC-ROTATING Price: $55.70 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 9 |
93-7976 |
RING-RETAINING Price: $12.48 |
| 10 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 10 |
93-7984 |
GASKET Price: $20.21 |
| 11 |
104-4279 |
ACTUATOR-ROTATING Price: $332.95 |
| 11 |
532145543 |
LINK ASSY This part replaces 532146704. Price: $17.99 |
| 12 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 12 |
93-7987 |
SPRING-EXTENSION Price: $9.47 |
| 13 |
531165801 |
SERVICE KIT ARM ARM.REAR.SUSPE This part replaces 532139868. Price: $11.99 |
| 13 |
93-7985 |
BALL Price: $9.39 |
| 14 |
353-990 |
PLUG ASM Price: $10.01 |
| 14 |
532169865 |
BEARING.PIVOT.LIFT Price: $5.99 |
| 15 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 16 |
532123994 |
SPRING This part replaces 532124687. Price: $57.46 |
| 18 |
532143363 |
BRACKET Price: $3.99 |
| 19 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 20 |
532005328 |
BOLT Price: $2.99 |
| 21 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 23 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 24 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 26 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 29 |
532150233 |
TRUNNION Price: $9.99 |
| 30 |
532110807 |
NUT T Price: $3.99 |
| 31 |
819131016 |
WASHER Price: $2.99 |
| 32 |
532137150 |
SPRING.COMP.INF.H Price: $4.99 |
| 33 |
596917601 |
Pins This part replaces 876020308. Price: $1.99 |
| 34 |
532137167 |
ROD.LIFT.ADJUSTABLE Price: $5.99 |
| 35 |
532138057 |
KNOB INF 3/8-16 Price: $6.99 |
| 38 |
532155097 |
POINTER, HEIGHT INDICATOR(2 2) Price: $4.99 |
| 39 |
532123935 |
PLUG,HOLE Price: $4.99 |
| 40 |
593337601 |
Screws This part replaces 817060516. Price: $3.99 |
| 41 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 42 |
819112410 |
WASHER Price: $3.99 |
| 43 |
532123934 |
HEIGHT INDICATOR Price: $2.99 |
| 70 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 72 |
532110452 |
NUT PUSH M Price: $2.99 |
| 73 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 75 |
532175805 |
PLATE ASM SUSP FRONT Price: $69.99 |
| 76 |
532175560 |
PIN.FLANGE Price: $11.99 |
| 78 |
532175689 |
TRUNNION This part replaces 532130171. Price: $3.99 |
