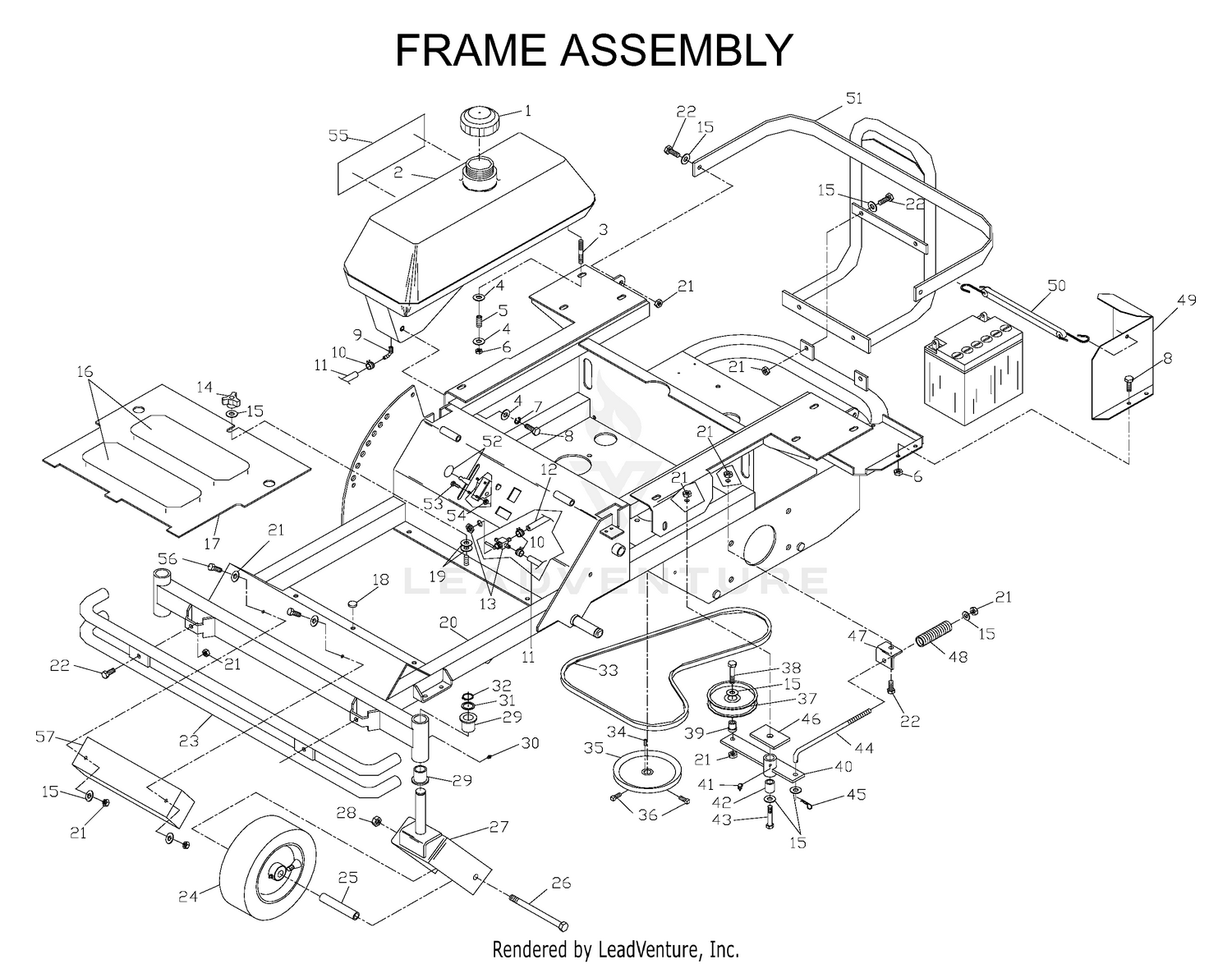

| Ref | Part Number | Description |
|---|
| 1 |
104-4620 |
SEAT Price: $273.15 |
| 1 |
539914363 |
FUEL CAP Price: $9.99 |
| 2 |
100-4928 |
BELT-SEAT Price: $280.73 |
| 2 |
539104585 |
FUEL TANK Price: $139.99 |
| 3 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 3 |
539102502 |
STUD, 5/16C Price: $8.99 |
| 4 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 5 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 5 |
539102845 |
SPRING Price: $2.99 |
| 6 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 6 |
92-8990 |
ADJUSTER-SLAVE Price: $54.82 |
| 7 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 7 |
92-8991 |
ADJUSTER (W/LATCH) Price: $73.04 |
| 8 |
3212-4 |
SCREW-HH Price: $2.73 |
| 8 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 9 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 9 |
539102650 |
HOSE BARB 90 DEGREE Price: $4.99 |
| 10 |
539912222 |
HOSE CLAMP Price: $2.99 |
| 11 |
539115707 |
HOSE 1/4 X 21.5" This part replaces 539102680. Price: $6.99 |
| 11 |
92-6282 |
SWITCH-SEAT Price: $31.99 |
| 12 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 12 |
539102681 |
FUEL LINE, ENGINE Price: $11.91 |
| 13 |
104-0467-03 |
STRAP-SUPPORT, SEAT Price: $165.70 |
| 13 |
539102679 |
FUEL VALVE Price: $49.99 |
| 14 |
539102070 |
KNOB, THREE PRONG Price: $4.99 |
| 14 |
95-8896 |
FOAM Price: $32.41 |
| 15 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 15 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 16 |
104-0466 |
SPACER-TUBE Price: $27.25 |
| 16 |
539977778 |
ANTI-SKID PAD Price: $3.99 |
| 17 |
323-14 |
SCREW-HH Price: $1.34 |
| 17 |
539103242 |
FOOT PLATE RED WSL This part replaces 539104590. Price: $67.99 |
| 18 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 18 |
539102587 |
GROMMET, BUMPER Price: $4.99 |
| 19 |
104-4833-03 |
SHIELD-HEAT Price: $72.12 |
| 19 |
539102593 |
WASHER, 3/8 DISC SPRING SPEC Price: $2.99 |
| 20 |
539104611 |
FRAME W/DECALS Price: $1,385.55 |
| 20 |
92-7307 |
LH ARMREST ASM Price: $200.08 |
| 21 |
595305901 |
Nuts This part replaces 539990546. Price: $2.99 |
| 21 |
92-7306 |
RH ARMREST ASM Price: $198.41 |
| 22 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 22 |
596564401 |
Bolts This part replaces 539990563. Price: $3.99 |
| 23 |
539104595 |
BUMPER, FRONT Price: $93.96 |
| 24 |
539106993 |
TIRE/WHEEL.CASTER This part replaces 539104594. Price: $99.99 |
| 25 |
539101872 |
SPACER Price: $25.99 |
| 26 |
539101907 |
HCS 1/2C X 5 1/2 Price: $9.99 |
| 27 |
539104589 |
YOKE WELDMENT ORANGE Price: $299.99 |
| 28 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 29 |
539101232 |
BUSHING, FLANGED Price: $11.99 |
| 30 |
596623501 |
Zerks This part replaces 539101474. Price: $2.99 |
| 31 |
539923787 |
BSHG .875 X 1.375 X .074 ZD Price: $2.99 |
| 32 |
539101151 |
RETAINING RING, 7/8" Price: $1.99 |
| 33 |
539103241 |
PUMP BELT Price: $34.99 |
| 34 |
539101177 |
KEY 5 MM SQ X 25 MM Price: $4.99 |
| 35 |
539101176 |
PULLEY Price: $37.99 |
| 36 |
539102717 |
SCREW 5/16C X 5/8 SQ HEAD Price: $2.99 |
| 37 |
596739801 |
PULLEYS This part replaces 539976688. Price: $29.99 |
| 38 |
596583901 |
Bolts This part replaces 539990730. Price: $2.99 |
| 39 |
539976695 |
BUSHING, IDLER FLANGE Price: $7.99 |
| 40 |
539103252 |
IDLER ARM WELDMENT Price: $72.99 |
| 41 |
539103300 |
ZERK Price: $2.99 |
| 42 |
539103429 |
PIVOT BUSHING Price: $1.89 |
| 43 |
539101341 |
HCS 3/8C X 3 Price: $4.99 |
| 44 |
539102337 |
TENSION ROD Price: $11.99 |
| 45 |
596580601 |
Pins This part replaces 539976988. Price: $3.99 |
| 46 |
596770301 |
Washers This part replaces 539103303. Price: $4.99 |
| 47 |
539104533 |
TENSION BRACKET Price: $14.99 |
| 48 |
539102817 |
COMPRESSION SPRING Price: $3.99 |
| 49 |
539102512 |
BATTERY GUARD W/DECALS Price: $28.32 |
| 50 |
539102501 |
BATTERY STRAP Price: $3.16 |
| 51 |
539103582 |
ENGINE GUARD W/DECALS Price: $167.10 |
| 52 |
539103275 |
THROTTLE CABLE Price: $27.99 |
| 53 |
596582801 |
Screws This part replaces 539990411. Price: $2.99 |
| 54 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 55 |
539104805 |
DECAL Price: $18.10 |
| 56 |
596564404 |
Bolts This part replaces 539990629. Price: $2.99 |
| 57 |
539104614 |
WEIGHT BLOCK Price: $59.76 |
| 539102484 |
539102484 |
BEARING RETAINER Price: $4.99 |
| 539103300 |
539103300 |
ZERK Price: $2.99 |
| 539103495 |
539103495 |
TIRE.11X4.00-5NHS.4PR.SMOOTH Price: $54.99 |
| 539103496 |
539103496 |
ROLLER BEARING 2 1/4" Price: $8.99 |
| 539104600 |
539104600 |
RIM Price: $27.38 |
| 539104806 |
539104806 |
DECAL Price: $12.16 |
