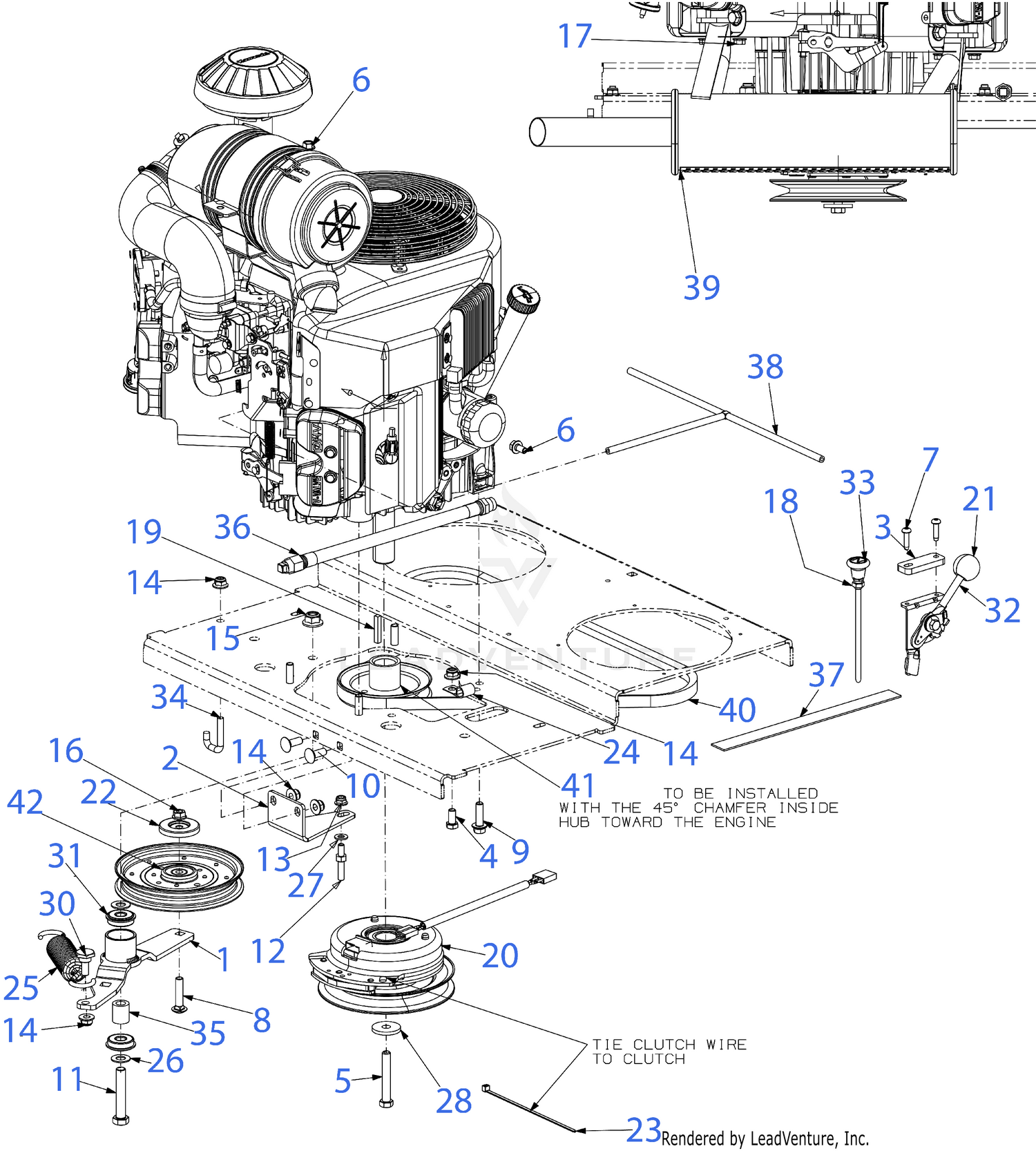

| Ref | Part Number | Description |
|---|
| 4 |
710-0216 |
HEX SCREW 3/8-16 x .75 Price: $3.93 |
| 5 |
710-04377 |
SCREW 7/16-20:2.75 GR5 Price: $9.74 |
| 7 |
710-05074 |
SCREW 1/4-20 x 1.0 Price: $2.90 |
| 8 |
710-05376 |
CARRIAGE BOLT 3/8-16 x 1.75 GR5 Price: $3.74 |
| 9 |
710-06359A |
SCREW 3/8-16 x 1.25 GR5 Price: $4.13 |
| 10 |
710-3168 |
CARRIAGE BOLT 3/8-16 x 1.00 GR5 Price: $3.61 |
| 11 |
710-3230 |
SCREW 1/2-13 x 2.75 GR5 Price: $10.75 |
| 12 |
711-1637 |
STUD Price: $29.03 |
| 13 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 14 |
712-04065 |
NUT Price: $3.68 |
| 15 |
712-04150 |
NUT Price: $3.74 |
| 16 |
912-0431 |
HEX LOCK NUT Price: $4.29 |
| 17 |
712-04312 |
HEX FLANGE NUT Price: $3.37 |
| 18 |
712-0711 |
HEX JAM NUT 3/8X24 Price: $3.90 |
| 19 |
714-0118 |
SQUARE KEY 1/4 x 1.50 Price: $6.06 |
| 20 |
917-05184 |
ELECTRIC PTO CLUTCH Price: $438.37 |
| 21 |
720-05110 |
BALL KNOB Price: $19.57 |
| 22 |
721-04516 |
PULLEY CAP Price: $12.89 |
| 24 |
726-04124 |
J TYPE CLIP Price: $3.14 |
| 25 |
732-05446A |
EXTENSION SPRING W/HOOK This part replaces 732-05446. Price: $19.90 |
| 26 |
736-0272 |
FLAT WASHER .510 x .995 Price: $4.37 |
| 27 |
736-0275 |
FLAT WASHER Price: $5.99 |
| 28 |
736-3082A |
FLAT WASHER .45 x 1.5 x .172 HT Price: $9.09 |
| 30 |
738-1126 |
SHOULDER SCREW .625 x .302 x 3/8-16 Price: $11.27 |
| 31 |
741-05247 |
ROLLER BEARING .5X1.37X.44 Price: $11.38 |
| 32 |
946-05260 |
THROTTLE CABLE 59" Price: $73.74 |
| 33 |
946-05341B |
CHOKE CABLE Price: $60.60 |
| 34 |
747-05707 |
ROD SPRING HOOK Price: $13.12 |
| 35 |
750-06330 |
SPACER 0.51 x 0.88 x 1.00 Price: $5.78 |
| 36 |
751-10291D |
OIL DRAIN HOSE W/VIBRA SEAL This part replaces 751-10291C. Price: $46.52 |
| 37 |
751-11232A-24 |
HEAT SHIELD 24" Price: $83.20 |
| 38 |
751-12282A |
ROLLOVER VENT HOSE ASSEMBLY Price: $66.35 |
| 39 |
951-15132 |
KAWASAKI MUFFLER Price: $325.45 |
| 40 |
954-05037A |
TRANSMISSION BELT Price: $41.50 |
| 41 |
756-04382 |
PULLEY - PUMP DRIVE Price: $44.50 |
| 42 |
756-04487 |
IDLER PULLEY Price: $58.67 |
