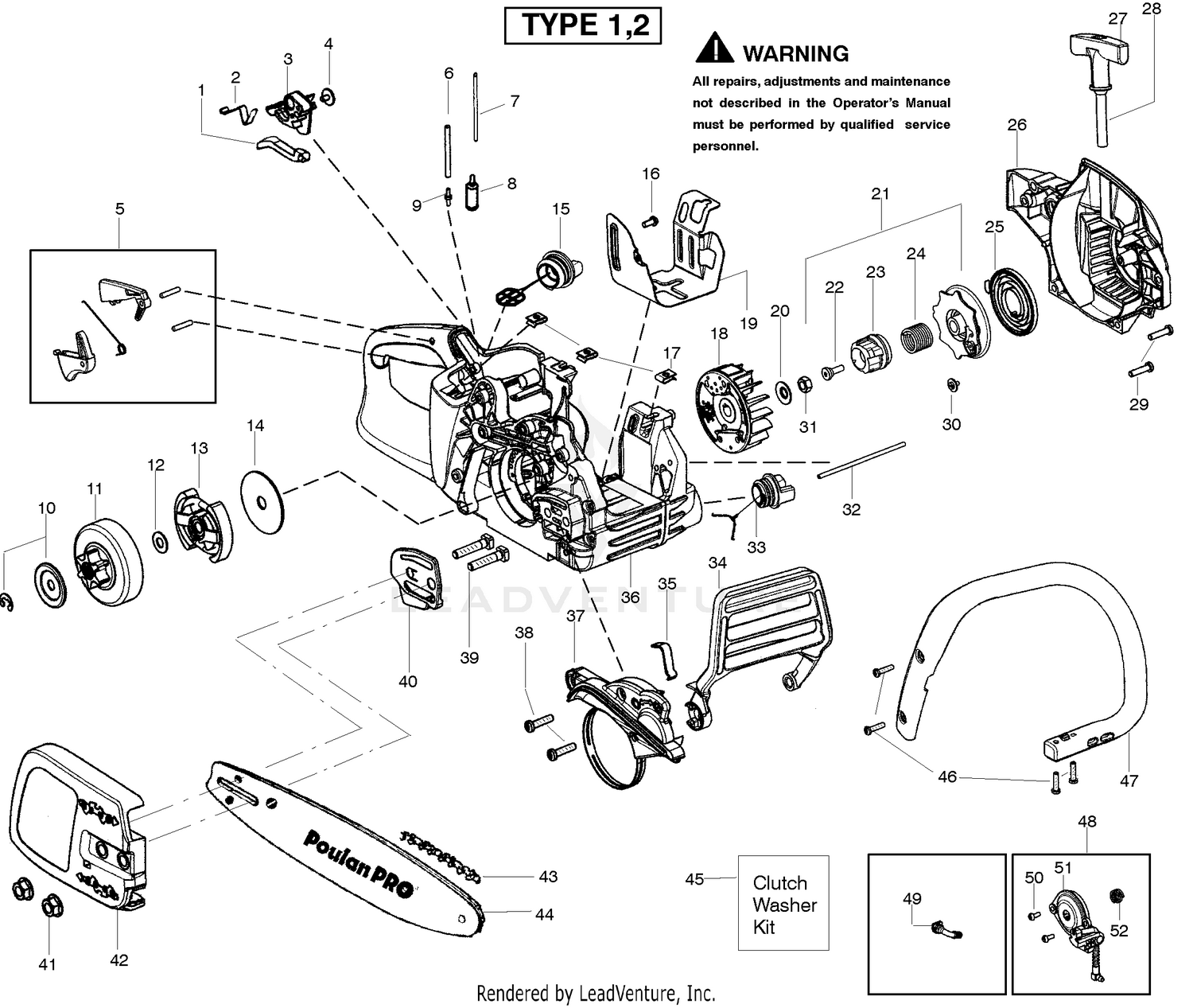

| Ref | Part Number | Description |
|---|
| 1 |
530057893 |
Knob-Choke Price: $3.99 |
| 2 |
530057908 |
Spring-Ign. Switch Price: $2.99 |
| 3 |
120-0404 |
BRACKET-HIGH HOC (LH) Price: $71.73 |
| 3 |
530057891 |
Lever-Ign. Switch Price: $4.99 |
| 4 |
120-0405 |
BRACKET-HIGH HOC (RH) Price: $71.73 |
| 4 |
530016080 |
Screw Price: $1.99 |
| 5 |
119-0626 |
SHIM-ROLLER Price: $3.23 |
| 5 |
530071888 |
Kit-Trigger/Lockout Price: $6.99 |
| 6 |
106-9758 |
SCREW-CARR Price: $2.99 |
| 6 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 8 |
112-7451 |
SCREW-TAP Price: $2.17 |
| 8 |
530095646 |
Assy-Fuel Pick Up Price: $2.99 |
| 9 |
48-9220 |
WASHER-PLAIN Price: $0.87 |
| 9 |
530023877 |
Fitting-Fuel line Price: $1.99 |
| 10 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 10 |
530071945 |
Kit-Clutch Washer Price: $3.99 |
| 11 |
322-16 |
SCREW-HH Price: $3.39 |
| 11 |
530057905 |
Assy-Clutch Drum 3/8" Price: $14.99 |
| 12 |
530071945 |
Kit-Clutch Washer Price: $3.99 |
| 13 |
530057907 |
Assy-Clutch Price: $6.99 |
| 14 |
530016419 |
Washer-Large Clutch Price: $1.99 |
| 15 |
580940901 |
FUEL CAP ASSY This part replaces 530047192. Price: $3.99 |
| 16 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 17 |
530015922 |
Nut-"U" type speed Price: $1.99 |
| 18 |
530059635 |
Assy-Flywheel Price: $24.99 |
| 19 |
530057911 |
Shield-Heat Price: $2.99 |
| 20 |
530015127 |
Washer-Flywheel Price: $1.99 |
| 22 |
530021179 |
Screw-Shoulder Price: $1.99 |
| 23 |
530059677 |
Hub-EPS Price: $5.99 |
| 24 |
530021180 |
Spring-EPS Price: $1.99 |
| 25 |
545008013 |
Kit-Starter Spring This part replaces 530042095. Price: $3.99 |
| 26 |
579372101 |
KIT FAN HSG PRO GOLD This part replaces 530058811. Price: $9.99 |
| 27 |
530056402 |
Handle-Starter Price: $2.99 |
| 28 |
530069232 |
Kit-Rope Price: $3.99 |
| 29 |
530016432 |
Screw Price: $1.99 |
| 30 |
530016080 |
Screw Price: $1.99 |
| 31 |
530016134 |
Nut-Flywheel Price: $1.99 |
| 32 |
530058786 |
Assy-Oil Vent Price: $2.99 |
| 33 |
530057236 |
Assy-Oil Cap w/ret. Price: $5.99 |
| 34 |
530057897 |
Handguard Price: $7.99 |
| 35 |
530016416 |
Spring-Handguard Price: $1.99 |
| 37 |
530071893 |
Kit-Chainbrake Price: $17.99 |
| 38 |
530016432 |
Screw Price: $1.99 |
| 39 |
530016133 |
Bolt-Bar Price: $1.99 |
| 40 |
530057910 |
Plate-Bar Price: $1.99 |
| 41 |
530015917 |
Nut-Bar Price: $0.99 |
| 42 |
530058934 |
Assy-Clutch Cover This part replaces 530058915. Price: $11.99 |
| 43 |
581562301 |
P/PP CHN 18" 62DL 3/8 .050 This part replaces 952051548. Price: $19.99 |
| 44 |
952044926 |
Accy-18" Bar Price: $30.95 |
| 46 |
530016432 |
Screw Price: $1.99 |
| 47 |
530057888 |
Handle-Front Price: $14.99 |
| 49 |
530057924 |
Assy-Oil Pick Up Price: $2.99 |
| 50 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 51 |
581071401 |
OIL PUMP ASSY SAS This part replaces 530057931. Price: $5.99 |
