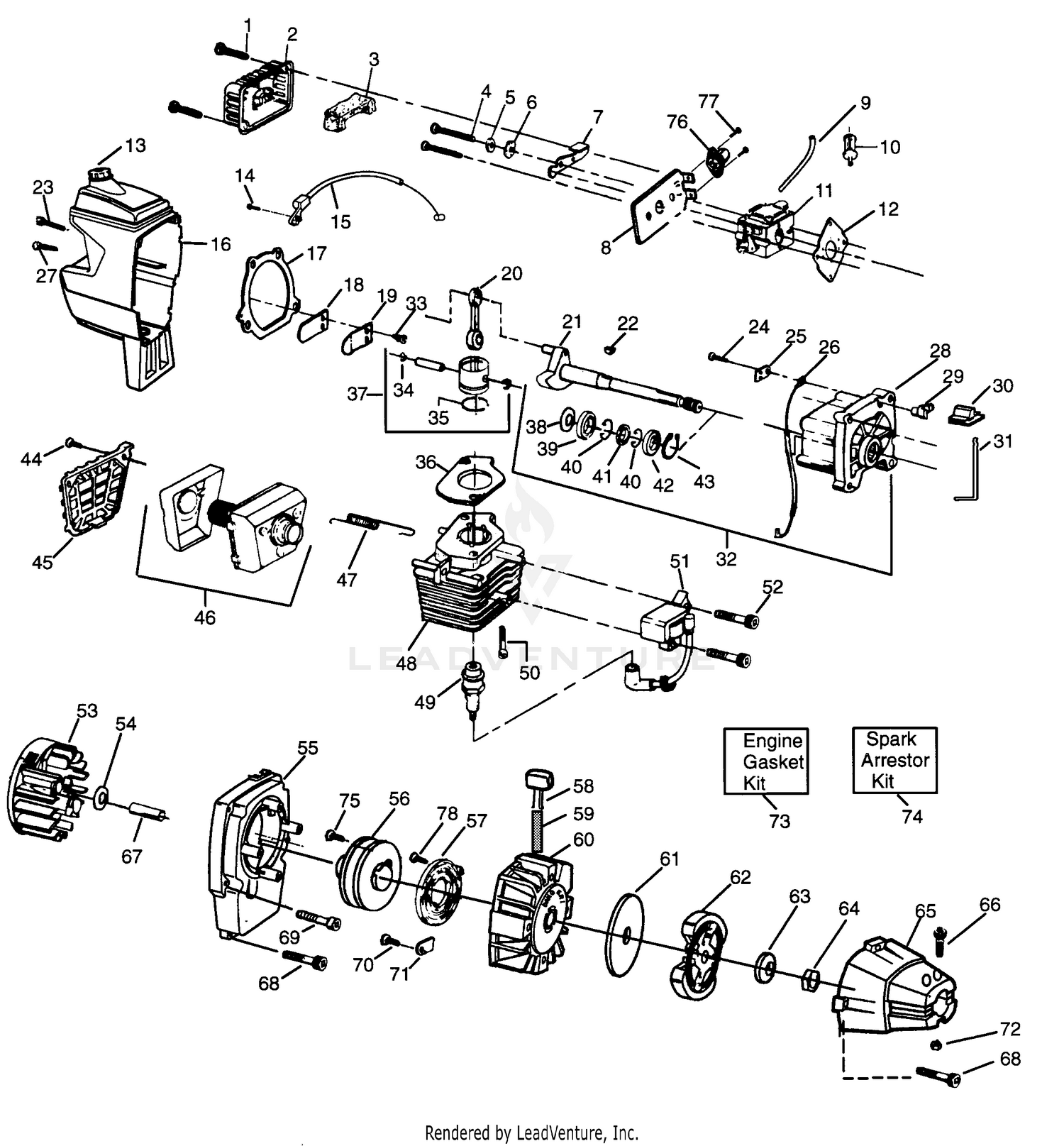

| Ref | Part Number | Description |
|---|
| 1 |
29-5140 |
DISCONTINUED Price: Call Us |
| 1 |
530015773 |
Screw Price: $1.99 |
| 2 |
20-9420-01 |
COMP SPRING This part replaces 20-9420. Price: $106.49 |
| 2 |
530027529 |
Air Filter Cover Price: $3.42 |
| 3 |
530027530 |
Air Filter Price: $1.99 |
| 3 |
93-7830 |
DECAL-TORQUE This part replaces 36-8000. Price: $23.91 |
| 4 |
29-5100 |
DISCONTINUED Price: Call Us |
| 4 |
530015849 |
Screw Price: $1.99 |
| 5 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 5 |
530015852 |
Spacer Price: $1.99 |
| 6 |
21-1790 |
DISCONTINUED Price: Call Us |
| 6 |
530015254 |
Wave Washer Price: $1.99 |
| 7 |
36-4920 |
DISCONTINUED Price: Call Us |
| 7 |
530038103 |
Choke Shutter Price: $1.99 |
| 8 |
325-10 |
SCREW-HH Price: $1.82 |
| 8 |
530027527 |
XT85 & XT85T Type 1 Price: $2.99 |
| 8 |
530037930 |
XT85T Type 2 & 3 Price: $2.99 |
| 9 |
3220-7 |
NUT-JAM Price: $4.09 |
| 9 |
530069247 |
Fuel Line Price: $3.99 |
| 9 |
530069571 |
Return Line Type 2 & 3 Price: $2.99 |
| 10 |
29-5170 |
DISCONTINUED Price: Call Us |
| 10 |
530095646 |
Assy-Fuel Pickup This part replaces 530014362. Price: $2.99 |
| 11 |
29-5060 |
DISCONTINUED Price: Call Us |
| 11 |
530069651 |
XT85T Type 2 & 3 (WT-298A) Price: $18.32 |
| 11 |
545081825 |
KIT CARBURETOR ASSY This part replaces 530035259. Price: $49.99 |
| 12 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 12 |
530019156 |
Carburetor Gasket Price: $3.99 |
| 13 |
29-5090 |
DISCONTINUED Price: Call Us |
| 13 |
530014347 |
Fuel Cap Ass'y. Price: $4.99 |
| 14 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 14 |
530015775 |
Screw Price: $1.99 |
| 15 |
256-261 |
DISCONTINUED Price: Call Us |
| 15 |
530037497 |
Throttle Cable Ass'y., Model 114 This part replaces 530027549. Price: $3.76 |
| 16 |
29-2770 |
THRUST WASHER Price: $5.01 |
| 16 |
530027982 |
XT85 & XT85T Type 1 Price: $15.84 |
| 16 |
530047086 |
XT85T Type 2 & 3 Price: $34.99 |
| 17 |
29-5160 |
DISCONTINUED Price: Call Us |
| 17 |
530019154 |
Gasket Price: $1.99 |
| 18 |
530027593 |
Reed Price: $1.99 |
| 19 |
530027594 |
Reed Stop Price: $1.99 |
| 20 |
530010960 |
Connecting Rod Ass'y. (Inc. Bearings) Price: $14.99 |
| 21 |
530010934 |
Crankshaft Ass'y. See Service Ref. 1 Price: $24.99 |
| 22 |
530015126 |
Flywheel Key Price: $1.99 |
| 23 |
530015772 |
Screw Price: $1.99 |
| 24 |
530015780 |
Screw Price: $1.99 |
| 25 |
530027546 |
Switch Insulator Price: $2.99 |
| 26 |
530027547 |
Lead Wire Price: $1.99 |
| 27 |
530015771 |
Screw Price: $1.99 |
| 28 |
530014016 |
Crankcase Ass'y. (Inc.#39-42) Price: Call Us |
| 29 |
530027545 |
Switch Ramp Price: $1.99 |
| 30 |
530038309 |
Switch Button Price: $1.99 |
| 31 |
530027959 |
Switch Spring Price: $1.99 |
| 32 |
530071705 |
Assy-C'case/C'shaft This part replaces 530014015. Price: $29.99 |
| 33 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 34 |
530015162 |
Piston Pin Retainer Price: $1.99 |
| 35 |
530025875 |
Piston Ring Price: $4.99 |
| 36 |
530019267 |
GASKET CYL W/ ADHESIVE This part replaces 530019178. Price: $2.99 |
| 37 |
530069899 |
Piston Kit This part replaces 530069275. Price: $19.99 |
| 39 |
530032103 |
Inner Bearing Price: Call Us |
| 40 |
530015787 |
Retaining Ring Price: $1.99 |
| 41 |
530019158 |
Crankshaft Seal Price: $2.99 |
| 42 |
530032102 |
Outer Bearing Price: $8.99 |
| 43 |
530015789 |
Crankshaft Retaining Ring Price: $2.99 |
| 44 |
530015717 |
Screw Price: $1.99 |
| 45 |
530027781 |
Muffler Guard Price: $1.99 |
| 46 |
530069310 |
Muffler Kit This part replaces 530069257. Price: $9.99 |
| 47 |
530036409 |
Muffler Spring Price: $1.99 |
| 48 |
530069626 |
Cylinder Price: $1.92 |
| 49 |
530030075 |
Type 3 (RCJ-8Y) Price: Call Us |
| 49 |
530030077 |
Type 1 & 2 (CJ-14) Price: $2.27 |
| 50 |
530015239 |
Screw Price: $1.99 |
| 51 |
530039134 |
Ignition Module Kit Price: $44.99 |
| 52 |
530015816 |
Screw This part replaces 530015128. Price: $1.99 |
| 53 |
530039189 |
Flywheel Ass'y. Price: $22.99 |
| 54 |
530016030 |
Washer This part replaces 530347987. Price: $1.99 |
| 55 |
530027948 |
Fan Housing Price: $12.99 |
| 56 |
530071387 |
Kit-Starter Pulley This part replaces 530069291. Price: $6.99 |
| 57 |
545008010 |
STARTER SPRING This part replaces 530029395. Price: $3.99 |
| 58 |
530027569 |
Starter Handle Price: $1.99 |
| 59 |
530069232 |
Rope Kit Price: $3.99 |
| 60 |
530014009 |
Pulley Housing Ass'y. Price: $5.84 |
| 61 |
530094189 |
Clutch Washer Price: $2.99 |
| 62 |
530069254 |
Clutch Ass'y. Kit Price: $8.99 |
| 63 |
530015796 |
Washer Price: $1.99 |
| 64 |
530001733 |
Nut Price: $2.99 |
| 65 |
530014017 |
Clutch Housing Price: $24.99 |
| 66 |
530015767 |
Screw Price: $1.99 |
| 67 |
530027511 |
Spacer Price: $4.99 |
| 68 |
530015770 |
Screw Price: Call Us |
| 69 |
530015769 |
Screw Price: $1.99 |
| 70 |
530015496 |
Screw Price: $1.99 |
| 71 |
530027523 |
Pulley Retainer Price: $2.99 |
| 72 |
530015768 |
Locknut Price: $1.99 |
| 73 |
530069276 |
Engine Gasket Kit Price: $4.99 |
| 74 |
952701612 |
Spark Arrestor Kit Price: Call Us |
| 75 |
530016080 |
Screw-Rope Retaining Price: $1.99 |
| 76 |
530038874 |
Primer Bulb Ass'y. XT85T Type 2 & 3 Price: $5.99 |
| 77 |
530016091 |
Screw-Primer XT85T Type 2 & 3 Price: $1.99 |
| 78 |
530015882 |
Screw-Starter Spring Type 3 Price: $1.99 |
