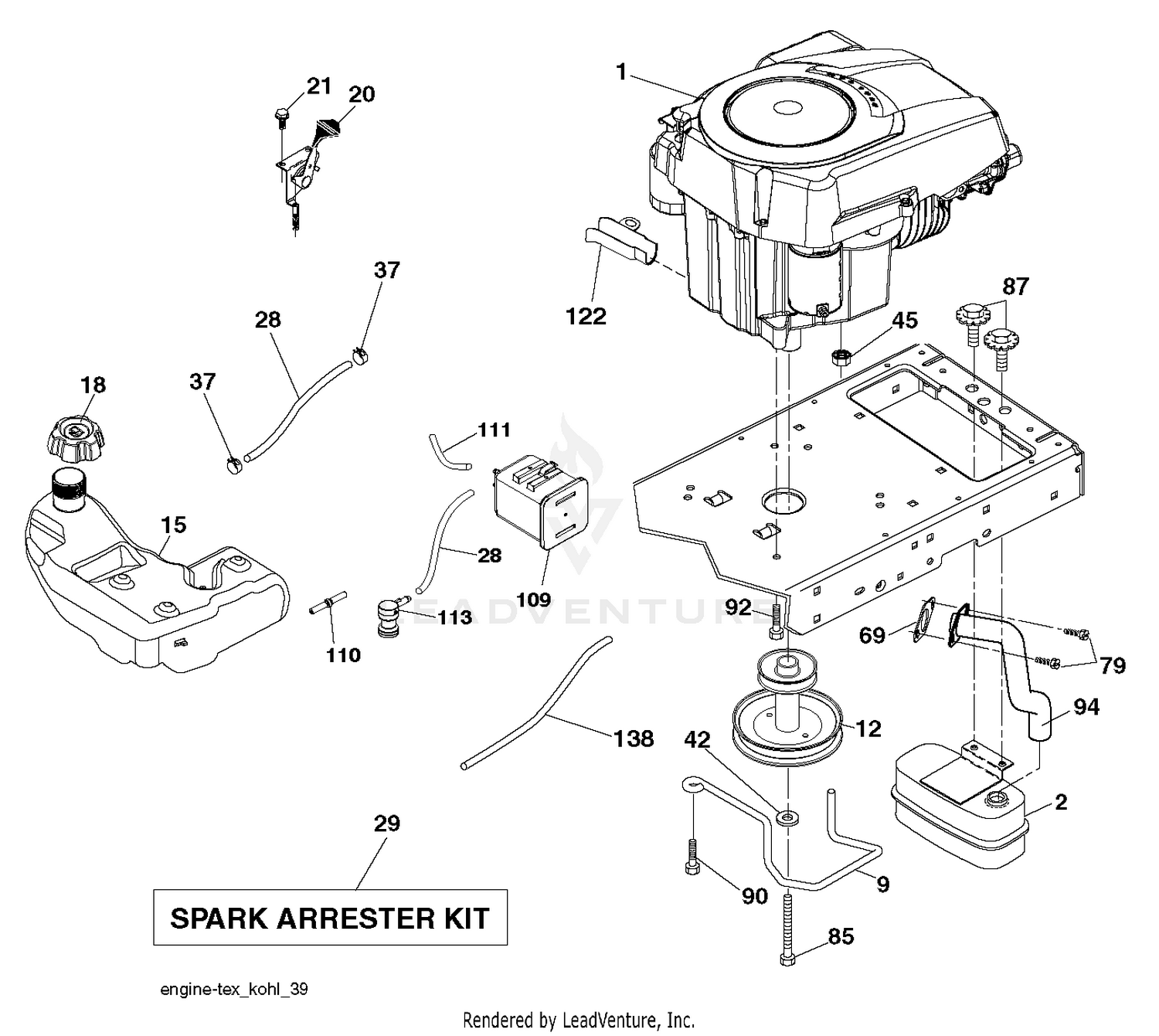

| Ref | Part Number | Description |
|---|
| 1 |
3290-477 |
WASHER-CURVED Price: $0.79 |
| 2 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99 |
| 2 |
95-5823 |
BRACKET-LEVER Price: $84.94 |
| 3 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 4 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 5 |
283-14 |
PIN-CLEVIS This part replaces 238-14. Price: $2.92 |
| 6 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 7 |
27-2320 |
BEARING Price: $15.22 |
| 8 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 9 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 9 |
532194319 |
KEEPER.BELT.ENGINE.3.25 (3 2) Price: $11.99 |
| 10 |
83-9310 |
RH BRAKE LEVER ASM Price: $67.19 |
| 11 |
98-0900 |
BRACKET-BEARING, LH Price: $30.84 |
| 12 |
586729001 |
PULLEY.ENGINE This part replaces 532401985. Price: $27.99 |
| 12 |
98-0901 |
BRACKET-BEARING, RH Price: $32.23 |
| 13 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 14 |
67-9410 |
WASHER Price: $2.04 |
| 15 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 16 |
95-5848 |
ROD-TRAVERSE Price: $180.84 |
| 17 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 18 |
283-62 |
PIN-CLEVIS Price: $0.61 |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 19 |
95-5844 |
STRAP Price: $13.02 |
| 20 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 20 |
532401508 |
CONTROL.TH/CK.COBRA.KO Price: $24.99 |
| 21 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
87-2710 |
LEVER-BRAKE Price: $189.28 |
| 23 |
321-9 |
SCREW-HH Price: $0.27 |
| 24 |
87-4710 |
SPACER-BRAKE, PARKING Price: $4.27 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532131780 |
Kit Spark Arrestor 1 25 Price: Call Us |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 69 |
532185909 |
GASKET.EXHAUST.KOHLER Price: $7.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 94 |
583955301 |
TUBE.EXHAUST.KOHLER.COURAGE This part replaces 532188654. Price: $27.99 |
| 109 |
532414114 |
CANNISTER, CARBON Price: $54.99 |
| 110 |
532414118 |
VALVE.ASM.ANTI-SLOSH Price: $19.99 |
| 111 |
532420718 |
PURGE.LINE.36"REAR.CALIFORNIA Price: $6.99 |
| 113 |
597791601 |
VALVES This part replaces 532414127. Price: $9.99 |
| 122 |
532421922 |
EXTENSION DRAIN OIL Price: $24.99 |
| 138 |
587044580 |
Hoses This part replaces 532414119. Price: $9.99 |
