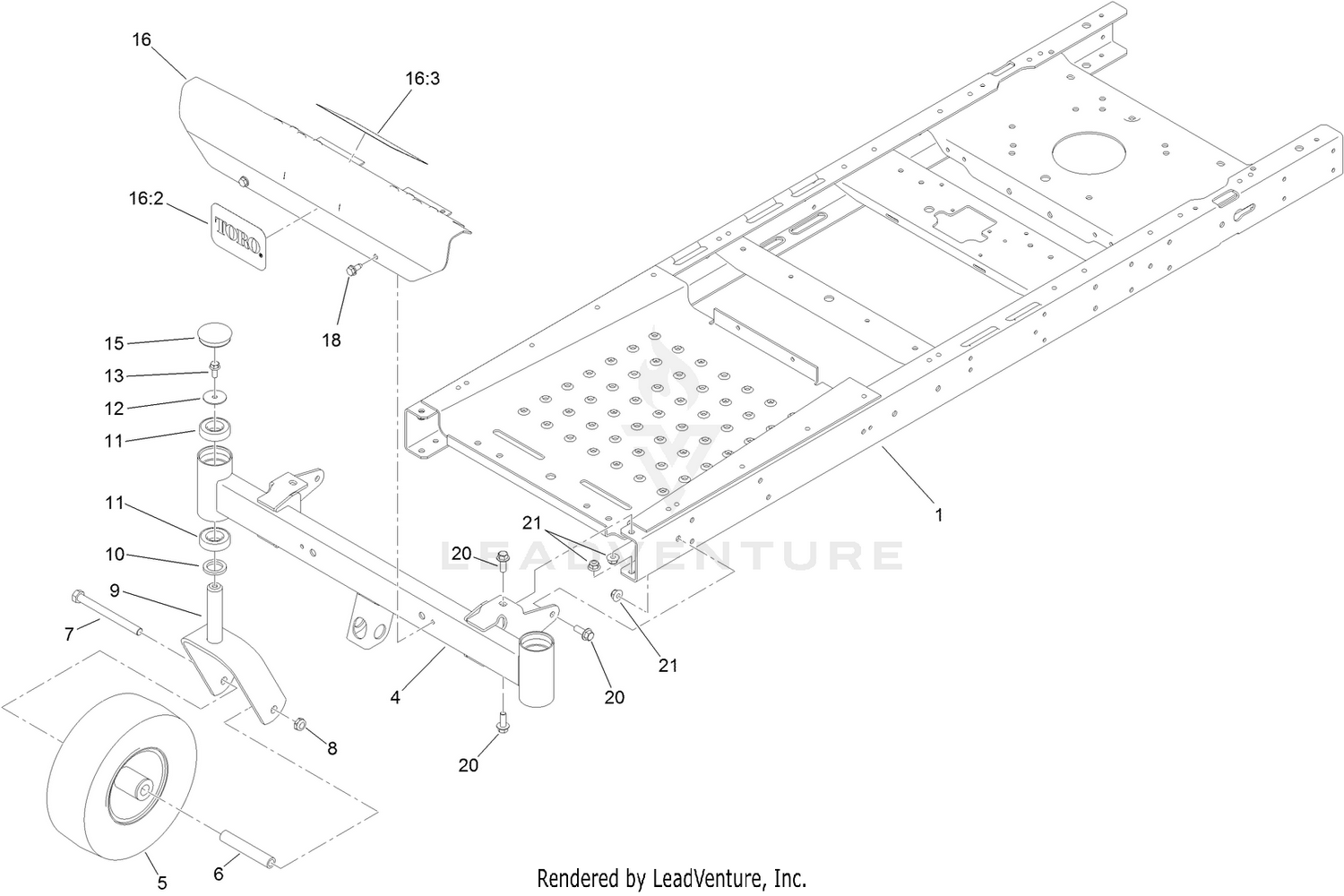

Frame, Front Axle and Caster Wheel Assembly
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 127-3444-01 | FRAME ASM Price: $304.17 |
| 4 | 125-1742-01 | AXLE-FRONT, NARROW Price: $207.31 |
| 5 | 130-0736 | CASTER WHEEL ASM Price: $54.66 |
| 6 | 104-3667 | BUSHING-SPANNER Price: $12.64 |
| 7 | 325-22 | SCREW-HH Price: $4.26 |
| 8 | 3296-45 | NUT-HEX Price: $3.79 |
| 9 | 120-7964-01 | CASTER FORK ASM Price: $45.59 |
| 10 | 117-7394 | WASHER-THRUST Price: $1.70 |
| 11 | 109-3678 | BEARING-BALL Price: $9.46 |
| 12 | 3256-68 | WASHER-FLAT Price: $2.69 |
| 13 | 3234-47 | SCREW-HHF Price: $1.79 |
| 15 | 116-4348 | CAP-GREASE Price: $2.36 |
| 16 | 132-0890 | FOOTREST ASM Price: $140.16 |
| 18 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 20 | 3234-42 | SCREW-HHF Price: $1.10 |
