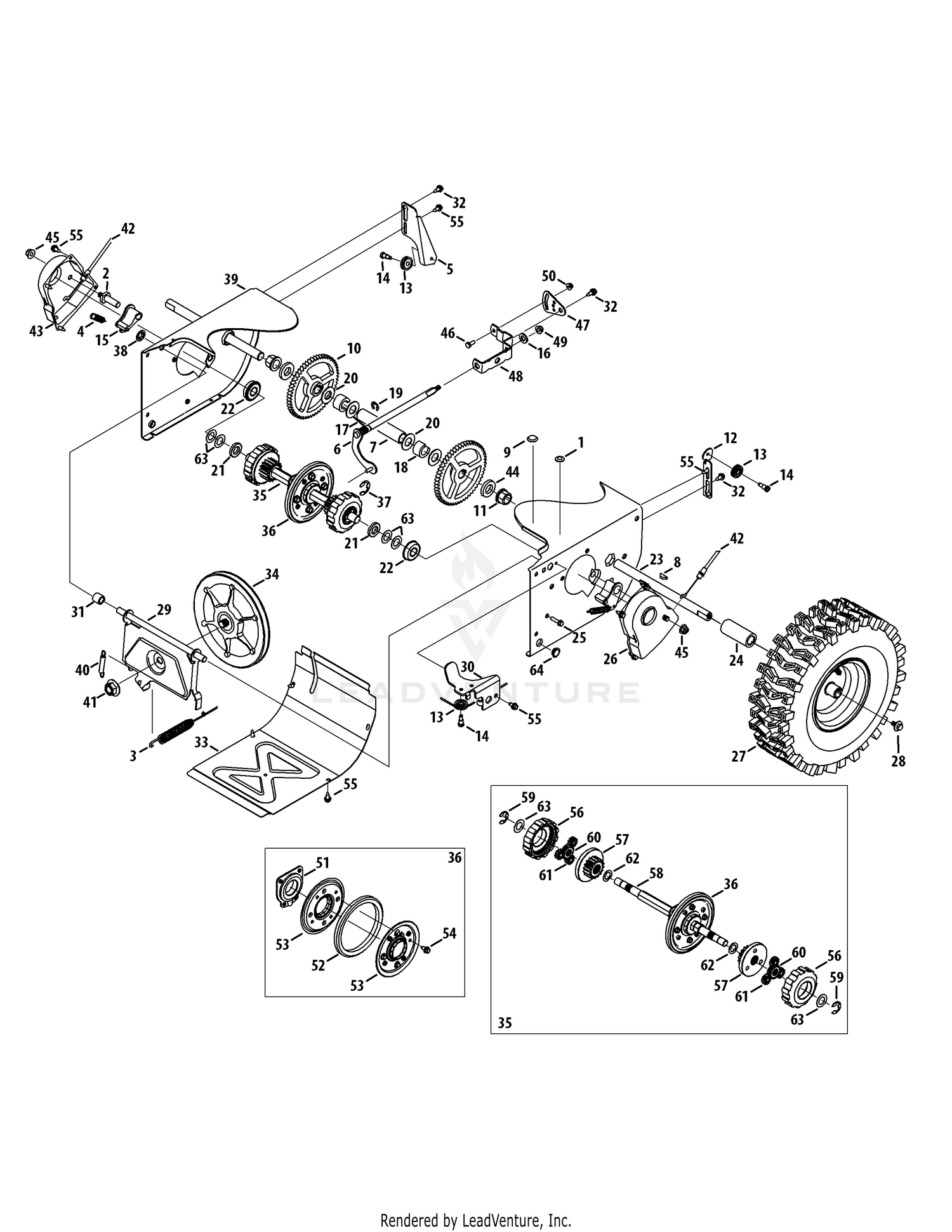

| Ref | Part Number | Description |
|---|
| 1 |
735-04099 |
Plug, 3/8 ID Price: $5.15 |
| 2 |
711-1268B |
Actuator Shaft Price: $8.86 |
| 3 |
946-05067 |
Drive Clutch Cable Price: $22.36 |
| 4 |
732-04345 |
Extension Spring Price: $9.09 |
| 5 |
790-03997 |
CABLE GUIDE BRACKET (DRIVE) This part replaces 790-00207C. Price: $4.55 |
| 6 |
684-04156A |
Shift Rod Assembly Price: $54.39 |
| 7 |
750-04474 |
Axle Support Tube Price: $36.90 |
| 8 |
714-0126 |
Key This part replaces 914-0126. Price: $4.05 |
| 9 |
735-04100 |
Plug, 1/2 ID Price: $5.25 |
| 10 |
917-04210 |
Gear, 56T Price: $69.94 |
| 11 |
941-0245 |
Hex Flange Bearing Price: $9.07 |
| 12 |
790-00206B |
AUGER CABLE GUIDE BRACKET This part replaces 790-00206A-0637. Price: $7.40 |
| 13 |
756-0625 |
Cable Roller Price: $8.52 |
| 14 |
738-0924A |
C Screw, 1/4-28 x 0.375 Price: $5.94 |
| 15 |
618-06987 |
Dogg Assembly - RH Price: $18.62 |
| 15 |
618-06988 |
Dogg Assembly - LH Price: $18.62 |
| 16 |
936-3015 |
Washer, Flat Price: $3.89 |
| 17 |
732-04311A |
Torsion Spring, .750 ID x .968 Lg. Price: $9.09 |
| 18 |
731-05297 |
Spacer Price: $8.47 |
| 19 |
916-0104 |
E Ring Price: $3.37 |
| 20 |
736-0188 |
Flat Washer, .76 x 1.49 x .06 Price: $3.75 |
| 21 |
750-06087 |
Spacer Price: $3.70 |
| 22 |
941-0563 |
Ball Bearing Price: $33.84 |
| 23 |
938-04180 |
Axle Price: $62.14 |
| 24 |
731-04873 |
Spacer Price: $8.93 |
| 25 |
710-0788 |
TT Screw, 1/4-20 x 1.0 Price: $6.20 |
| 26 |
790-00527-4044 |
Shaft Retainer - LH Price: $25.12 |
| 28 |
710-05339A |
SCREW 5/16-24 x .750 GR5 This part replaces 710-05339. Price: $3.70 |
| 29 |
684-04154B-0637 |
Friction Wheel Support Brkt. Assy. Price: $36.47 |
| 30 |
790-00096A-0637 |
Auger Cable Guide Bracket Price: $8.20 |
| 31 |
748-0190 |
Spacer Price: $5.48 |
| 32 |
738-04184A |
Shoulder Screw Price: $5.99 |
| 33 |
790-00316-4044 |
Frame Cover Price: $41.74 |
| 34 |
656-04055A |
FRICTION WHEEL DISC ASSEMBLY This part replaces 656-04055. Price: $52.47 |
| 35 |
918-06072 |
Drive Shaft Assembly Price: $389.97 |
| 36 |
684-04153C |
Friction Wheel Assembly Price: $89.34 |
| 37 |
716-0136 |
Retainer Ring Price: $7.56 |
| 38 |
726-0221 |
Speed Nut Price: $5.34 |
| 39 |
790-00183E-0637 |
DRIVE FRAME HOUSING (POWDER BLACK) This part replaces 790-00183C-4044. Price: $93.12 |
| 40 |
932-0264 |
Extension Spring Price: $4.40 |
| 41 |
712-0417A |
HEX NUT Price: $6.50 |
| 42 |
946-0956C |
Steering Cable Price: $21.54 |
| 43 |
790-00528-4044 |
Shaft Retainer - RH Price: $25.12 |
| 44 |
750-0767 |
Axle Spacer Price: $5.11 |
| 45 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 46 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 47 |
790-00217A |
Pivot Bracket, Speed Selector This part replaces 790-00217A-0637. Price: $8.22 |
| 48 |
790-00218A |
Shift Bracket, Speed Selector This part replaces 790-00218A-0637. Price: $41.84 |
| 49 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 50 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 51 |
618-0063A |
Friction Wheel Bearing Assembly Price: $80.89 |
| 52 |
935-04054A |
FRICTION WHEEL 5.50OD This part replaces 935-04054. Price: $35.10 |
| 53 |
790-00174C |
Friction Plate Price: $13.09 |
| 54 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 55 |
710-1652 |
AB Screw, 1/4-20 x 0.625 Price: $3.86 |
| 56 |
918-06054 |
Gear Assembly, Plantry Ring Price: $50.29 |
| 57 |
918-06056 |
Carrier Assembly, Plantry Ring Price: $62.38 |
| 58 |
711-06117B |
HEX DRIVE SHAFT 13/16 This part replaces 711-06117. Price: $90.00 |
| 60 |
717-05146 |
Gear, Sun, 18T Price: $7.44 |
| 61 |
717-1209A |
Gear, 12T Price: $4.21 |
| 62 |
736-04581 |
Washer, Thrust, .75 x 1.25 x .03 Price: $3.70 |
| 63 |
736-05031 |
Washer, Flat, .67 x 1.174 x .02 Price: $2.77 |
