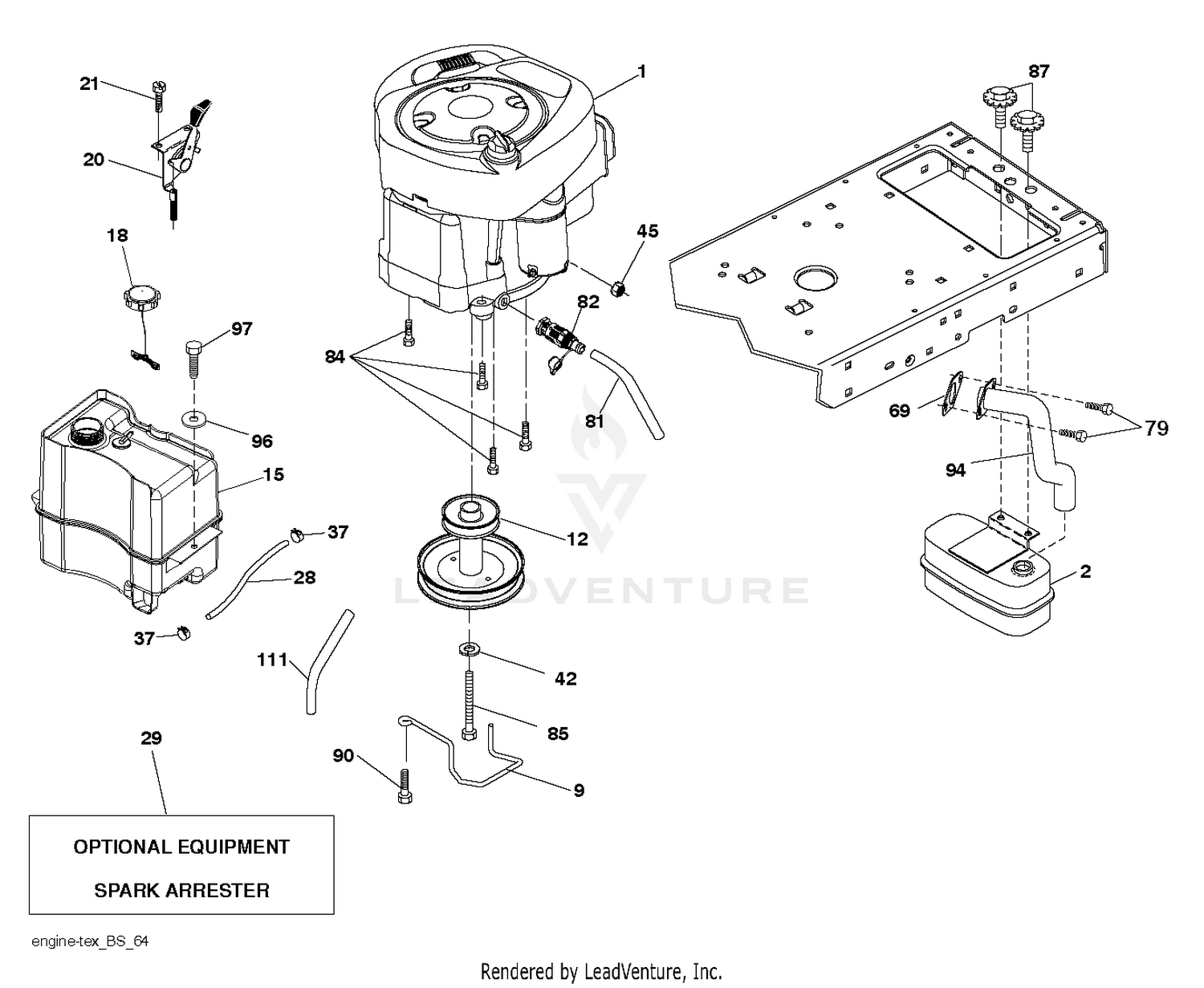

| Ref | Part Number | Description |
|---|
| 1 |
3296-60 |
NUT-LOCK, NI Price: $5.08 |
| 2 |
104-3546 |
PULLEY-DRIVEN, LOW Price: $163.56 |
| 2 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S This part replaces 580532301. Price: $29.99 |
| 4 |
119-4775 |
SPINDLE HOUSING ASM Price: $244.67 |
| 5 |
138-6416 |
SPACER-SPINDLE, SHAFT This part replaces 69-6950. Price: $18.44 |
| 6 |
104-3554 |
SHAFT-SPINDLE Price: $67.98 |
| 7 |
104-8322 |
WASHER-HARDENED Price: $23.22 |
| 9 |
584908001 |
KEEPER BELT ENGINE Price: $2.99 |
| 12 |
532405472 |
PULLEY ENGINE This part replaces 586728901. Price: $34.99 |
| 15 |
532433007 |
TANK.ASM.FRT.2.5 GAL.W/CAP.EPA Price: $119.99 |
| 18 |
581176101 |
CAP.FUEL.2 WAY VENT Price: $34.99 |
| 20 |
587242601 |
THROTTLE.COBRA.21".RSTART.BLK Price: $17.99 |
| 21 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 28 |
532401137 |
LINE.FUEL.20"FRONT.EMI Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR(392390 B&S) Price: $129.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 45 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 69 |
532272293 |
Gasket Eng 1 313 Id Tin Plated (AYP part number) This part replaces 532165291. Price: $7.99 |
| 79 |
532192334 |
SCREW.SOCKET HD.5/16-1 Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $2.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $11.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 85 |
501606501 |
Speed Clip This part replaces 532173937. Price: $1.99 |
| 87 |
532171877 |
BOLT, 5/16-18 X 1 3/4 Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 94 |
581880901 |
EXHAUST.TUBE.B&S.28/31 Price: $17.99 |
| 96 |
819091416 |
WASHER Price: $3.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
