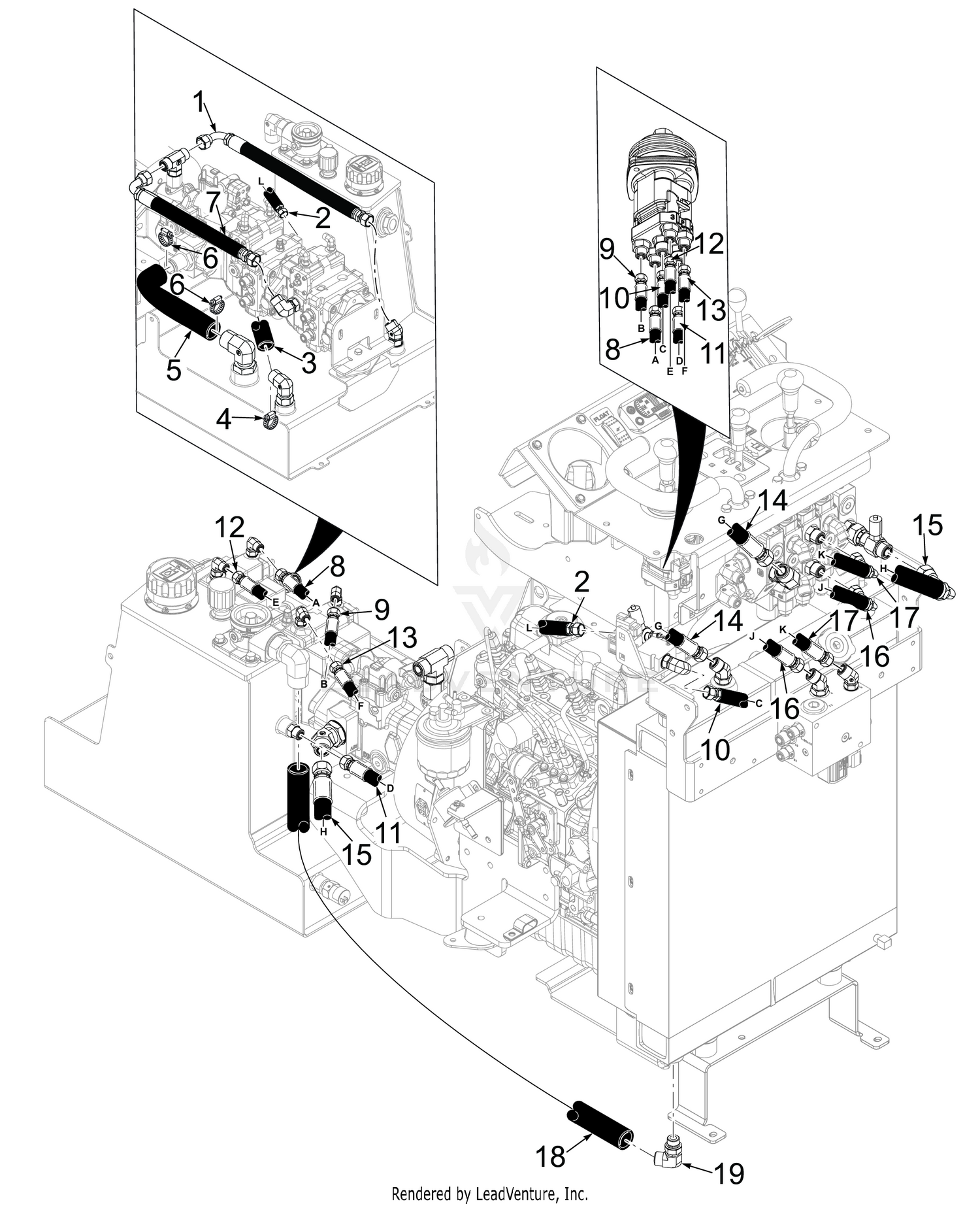

| Ref | Part Number | Description |
|---|
| 1 |
27-6860 |
DISCONTINUED Price: Call Us |
| 1 |
487756 |
Hose Assembly, 25.75" Price: Call Us |
| 2 |
487765 |
Hose Assembly, 51.25" Price: Call Us |
| 2 |
99-6969 |
SEAL-OIL, WHEEL END This part replaces 21-8330. Price: $14.71 |
| 3 |
21-8180 |
BEARING ASM Price: $65.11 |
| 3 |
487757 |
Hose Assembly, 12.5" Price: Call Us |
| 4 |
21-9450 |
SHIELD-DUST Price: $45.14 |
| 4 |
48136-29 |
Clamp, Hose 1.25" Price: Call Us |
| 5 |
21-9410 |
SEE P.B.#734A Price: Call Us |
| 5 |
487754 |
Hose Assembly, 14.5" Price: Call Us |
| 6 |
21-9390 |
SOCKET-SCREW, ADJUSTING Price: $5.56 |
| 6 |
48136-28 |
Clamp Price: Call Us |
| 7 |
21-9370 |
SCREW-ADJUSTING Price: $18.80 |
| 7 |
487760 |
Hose Assembly, 17.5" Price: Call Us |
| 8 |
21-9380 |
NUT-PIVOT Price: $26.77 |
| 8 |
487762 |
Hose Assembly, 59.5" Price: Call Us |
| 9 |
242-34 |
STUD-DRIVE Price: $11.61 |
| 9 |
487761 |
Hose Assembly, 53.25" Price: Call Us |
| 10 |
21-8360 |
CLIP-RETAINING Price: $1.29 |
| 10 |
487763 |
Hose Assembly, 12" Price: Call Us |
| 11 |
28-0680-03 |
DRUM-BRAKE This part replaces 28-0680. Price: $358.84 |
| 11 |
487764 |
Hose Assembly, 48.5" Price: Call Us |
| 12 |
32152-5 |
NUT-HEX Price: $0.54 |
| 12 |
487885 |
Hose Assembly, 59.5" Price: Call Us |
| 13 |
28-0670 |
SEAL-GREASE Price: $19.74 |
| 13 |
487884 |
Hose Assembly, 53.25" Price: Call Us |
| 14 |
21-9440 |
SPRING-SCREW, ADJUSTING Price: $11.92 |
| 14 |
487772 |
Hose Assembly, 17.25" Price: Call Us |
| 15 |
21-9460 |
RETAINER-LEVER, BRAKE Price: $2.18 |
| 15 |
487755 |
Hose Assembly, 60.5" Price: Call Us |
| 16 |
21-9470 |
SEE PB #747 Price: Call Us |
| 16 |
487906 |
Hose Assembly, 18.75", Blue Price: Call Us |
| 17 |
21-9420 |
SPRING-RETURN, LH Price: $19.96 |
| 17 |
487771 |
Hose Assembly, 18.75", Purple Price: Call Us |
| 18 |
21-9430 |
SPRING-RETURN, RH Price: $19.96 |
| 18 |
487777 |
Hose Assembly, 43" Price: Call Us |
| 19 |
27-6880 |
BRAKE LEVER ASSY Price: $85.13 |
| 19 |
482266-05 |
Elbow, 90 - O-Ring 1 1/16-12 Price: Call Us |
| 20 |
21-8320 |
REFER TO(PB#807 OR MISC COMM SB#50) Price: Call Us |
| 21 |
99-5691 |
SCREW W/WASHER This part replaces 28-0660. Price: $7.18 |
