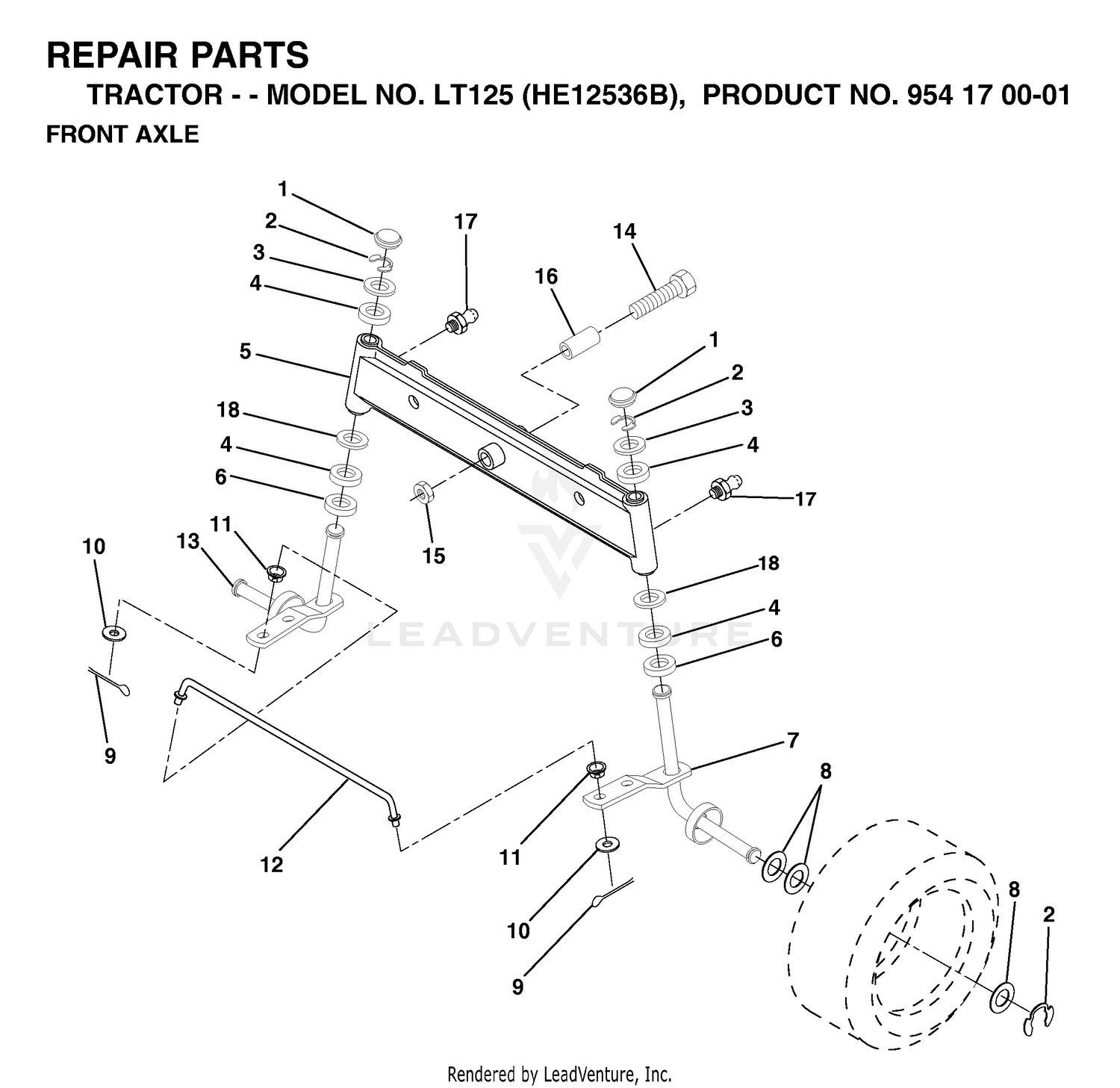

| Ref | Part Number | Description |
|---|
| 1 |
104-4620 |
SEAT Price: $273.15 |
| 1 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 2 |
138-6985-03 |
MOUNT-SEAT This part replaces 125-2900-03. Price: $355.77 |
| 2 |
812000029 |
RING CLIP Price: $3.99 |
| 3 |
125-8753 |
DECAL-SERVICE Price: $29.59 |
| 3 |
136-3721 |
DECAL-SERVICE This part replaces 125-8798. Price: $27.64 |
| 3 |
532121748 |
WASHER Price: $3.99 |
| 4 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 4 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $3.99 |
| 5 |
108-8657 |
HARNESS-WIRE, SEAT Price: $19.96 |
| 5 |
532142033 |
AXLE ASSY Price: $59.99 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
92-6282 |
SWITCH-SEAT Price: $31.99 |
| 7 |
532137062 |
SPINDLE ASSY RH NLA Price: $21.99 |
| 7 |
9266714 |
SCREW-HWH Price: $0.80 |
| 8 |
532121749 |
WASHER Price: $2.99 |
| 8 |
92-7307 |
LH ARMREST ASM Price: $200.08 |
| 9 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 9 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 10 |
3274-12 |
SCREW-HSH Price: $0.81 |
| 10 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 11 |
532126847 |
BUSHING.DRAGLINK (2 2) Price: $4.99 |
| 11 |
92-8990 |
ADJUSTER-SLAVE Price: $54.82 |
| 12 |
532192757 |
ROD.TIE.WIRE.FORM This part replaces 532130465. Price: $29.99 |
| 12 |
92-8991 |
ADJUSTER (W/LATCH) Price: $73.04 |
| 13 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 13 |
532137061 |
SPINDLE ASSY LH Price: $23.59 |
| 15 |
48-7680 |
SCREW-HH Price: $0.61 |
| 15 |
583612401 |
LOCKNUT M This part replaces 873901000. Price: $2.99 |
| 16 |
532155134 |
KIT-AXLE This part replaces 532110438. Price: $13.26 |
| 16 |
71-9310 |
SPACER Price: $2.29 |
| 17 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 17 |
532183226 |
FITTING.GREASE.TAPERED This part replaces 532124836. Price: $4.99 |
| 18 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 18 |
819272016 |
WASHER Price: $3.99 |
| 19 |
108-6590-0P |
BRACKET-SEAT, LOWER This part replaces 108-6590-03. Price: $50.77 |
| 20 |
145-5295 |
SUSPENSION ASM This part replaces 110-8851. Price: $889.18 |
| 21 |
2412-133 |
CLAMP-R Price: $3.19 |
| 22 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 23 |
100-4928 |
BELT-SEAT Price: $280.73 |
| 24 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 25 |
3212-4 |
SCREW-HH Price: $2.73 |
| 26 |
136-7954 |
ROPS ASM Price: $4,180.63 |
