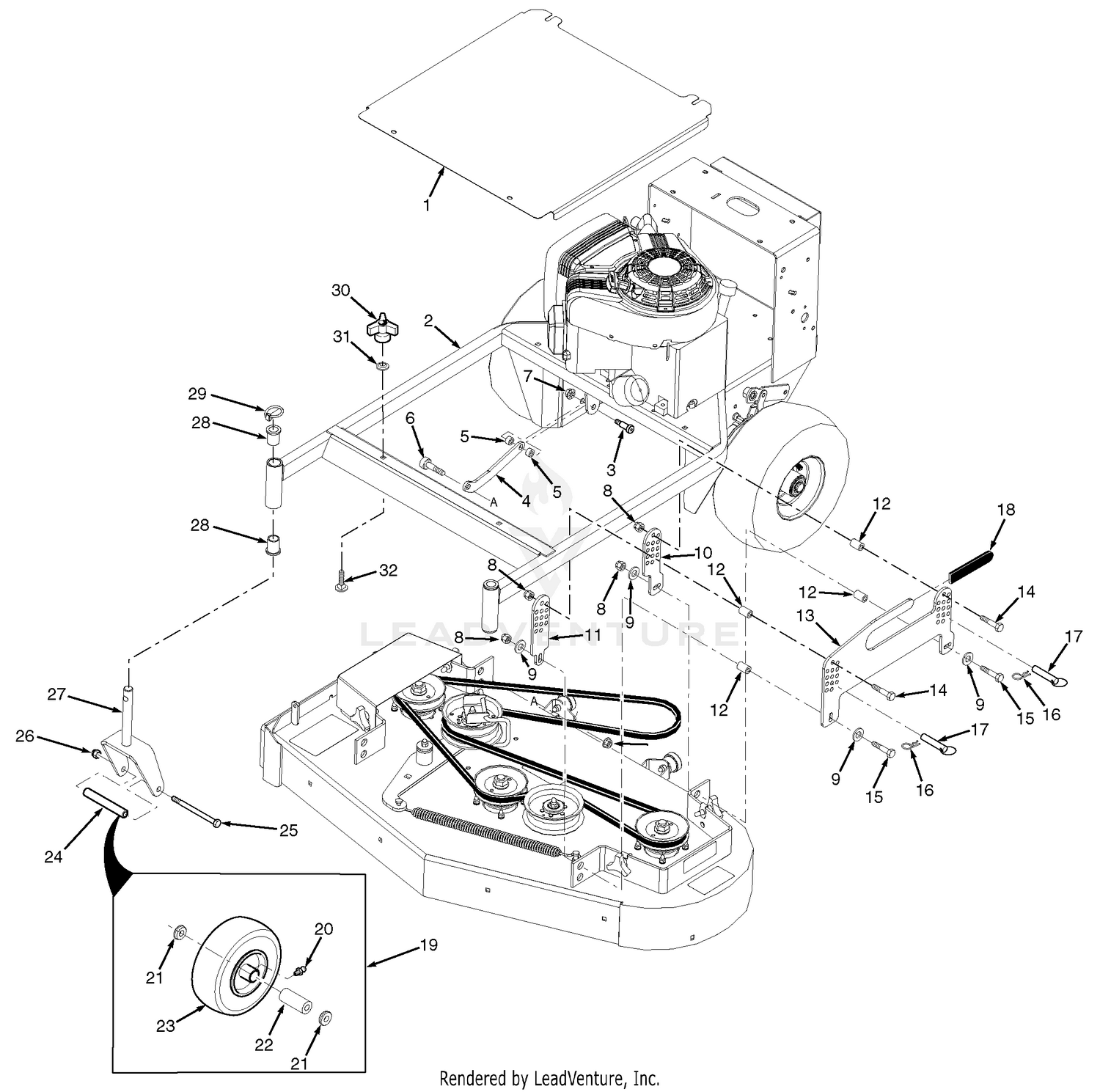

| Ref | Part Number | Description |
|---|
| 1 |
462183 |
Belt Cover, SFW w/Decals Price: Call Us |
| 2 |
462181 |
Frame Weldment w/Decals Price: Call Us |
| 3 |
04009-13 |
Bolt, Shoulder 1/2 x 1-1/2" Price: Call Us |
| 4 |
425023 |
Pusharm Price: Call Us |
| 5 |
43041 |
Spacer Price: Call Us |
| 6 |
04009-10 |
Bolt, Shoulder 1/2 x 2-3/4" Price: Call Us |
| 7 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 8 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 9 |
04043-04 |
Flatwasher, 3/8-.391 x .938 x .105 HD Price: Call Us |
| 10 |
425076 |
Mounting Bracket, Height Adjustment Rear Price: Call Us |
| 11 |
425077 |
Mounting Bracket, Height Adjustment Front Price: Call Us |
| 12 |
43572 |
Spacer Price: Call Us |
| 13 |
462188 |
Bracket, Deck Lift Height Adjustment - LH w/Decal Price: Call Us |
| 14 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" Price: Call Us |
| 15 |
04001-31 |
Bolt, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 16 |
04062-01 |
Hair Pin Cotter, .094 x 1.62" Price: Call Us |
| 17 |
04067-13 |
Pin, Ring 3/8 x 2-1/2" Price: Call Us |
| 18 |
481428 |
Grip Price: Call Us |
| 19 |
483922 |
Caster Wheel Assembly, 9 x 3.5-4 Price: Call Us |
| 20 |
48114-03 |
Grease Fitting, 45 Degree 1/4-28 Price: Call Us |
| 21 |
481770 |
Bearing, Oilite Price: Call Us |
| 22 |
481769 |
Bearing, Roller Price: Call Us |
| 23 |
483981 |
Tire Only, Caster Wheel Price: Call Us |
| 24 |
43022 |
Sleeve, Caster Wheel Price: Call Us |
| 25 |
04001-37 |
Bolt, Hex Head 1/2-13 x 5-1/2" Price: Call Us |
| 26 |
04021-07 |
Nut, Elastic Stop 1/2-13 Price: Call Us |
| 27 |
45006 |
Caster Yoke Weldment Price: Call Us |
| 28 |
483453-07 |
Bearing Price: Call Us |
| 29 |
04066-01 |
Quick Pin Price: Call Us |
| 30 |
04029-04 |
Wing Nut, 3/8" Plastic Small Price: Call Us |
| 31 |
04024-02 |
Nut, Push-On 3/8" Price: Call Us |
| 462189 |
Bracket, |
Deck Lift Height Adjustment - RH w/Decal Price: Call Us 462189 |
| 483921 |
Rim |
Only Price: Call Us 483921 |
