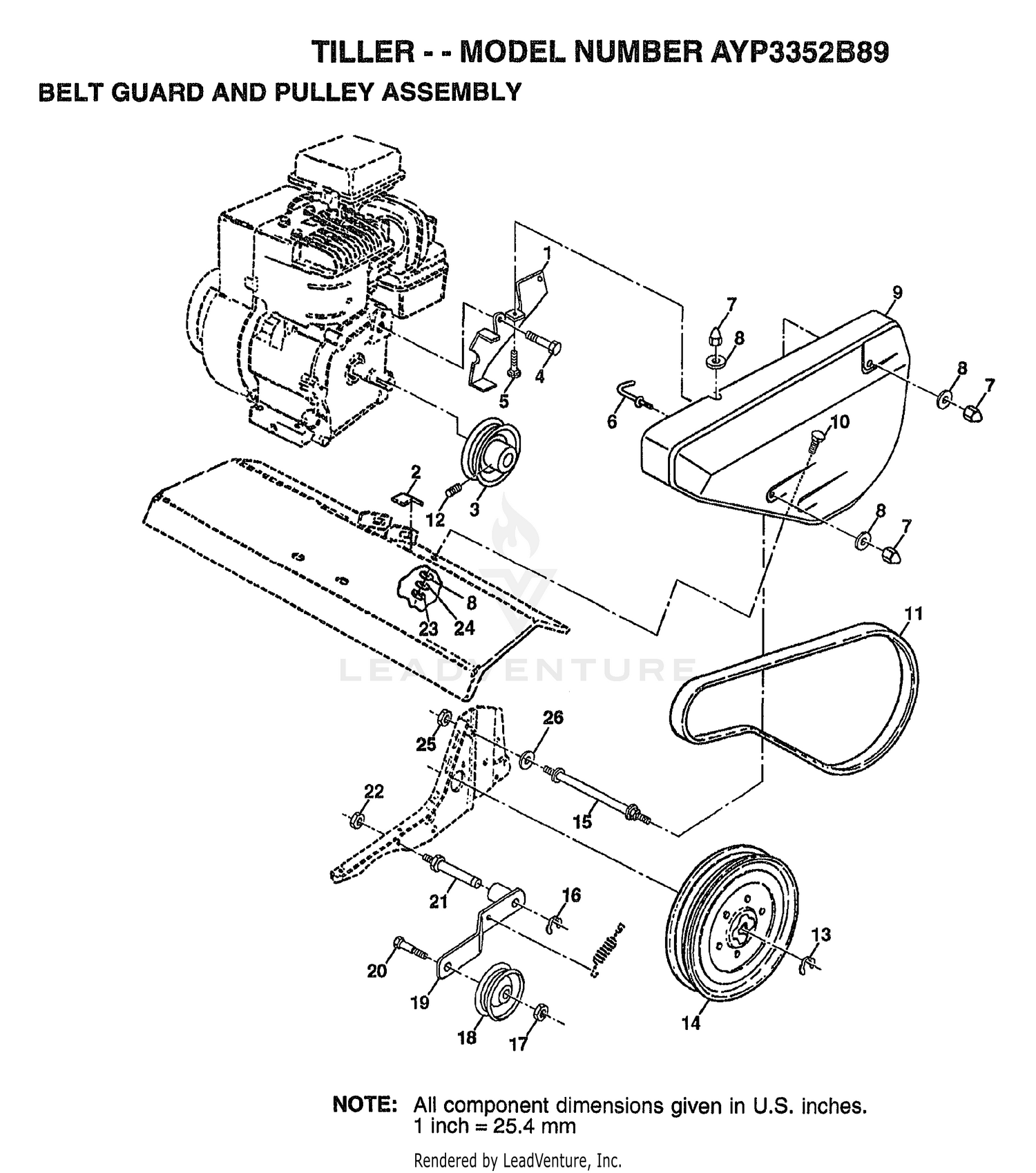

BELT GUARD AND PULLEY ASSEMBLY

BELT GUARD AND PULLEY ASSEMBLY

Parts (30)

RefPart NumberDescription
1 159233 BRKT GUARD BELT Price: Call Us
1 49-2640 SEAL-SHAFT Price: $14.83
2 109227X PAD IDLER TI Price: Call Us
2 60-5890 WASHER Price: $4.68
3 105-2898 SCREW-CAP Price: $10.86
3 130812 ENGINE PULLEY Price: Call Us
4 74610812 BOLT.HEX.HEAD Price: Call Us
5 72140404 BOLT Price: Call Us
5 74-8920 WASHER-COPPER Price: $37.32
6 115-8032 RELIEF VALVE This part replaces 105-2891. Price: $529.58
6 121463X KEEPER BELT Price: Call Us
7 104213X NUT-CAP TI Price: Call Us
7 94-3013 PLUG Price: $123.44
8 19091016 WASHER Price: Call Us
8 94-3011 PLUG Price: $14.66
9 94-3015 SEAL KIT Price: $333.77
10 72140405 BOLT T Price: Call Us
11 9180R V BELT STD Price: Call Us
12 23230506 SET SCREW Price: Call Us
13 12000028 SUB= 2267J Price: Call Us
14 151223 SHEAVE.TRANS Price: Call Us
15 110528X BOLT TI Price: Call Us
16 12000036 KLIP RING TI Price: Call Us
17 73350600 NUT Price: Call Us
20 74760620 Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us
21 106968X SHAFT IDLER TI Price: Call Us
22 73350500 JAM NUT TI Price: Call Us
23 73220400 SUB= 50675 Price: Call Us
24 10040400 LOCKWASHER Price: Call Us
25 73510400 NUT Price: Call Us
