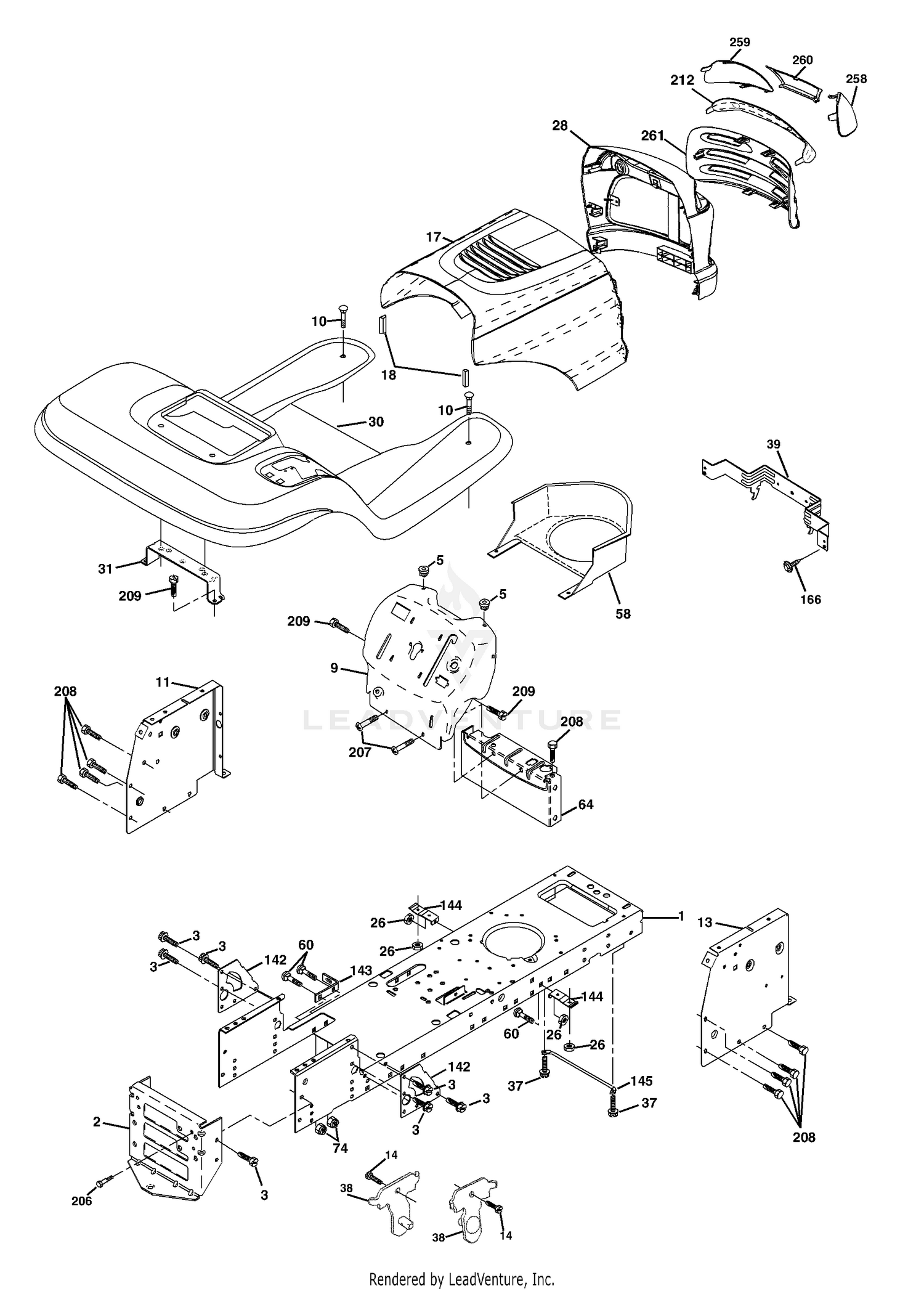

| Ref | Part Number | Description |
|---|
| 1 |
579841401 |
KITS.CHASSIS.STAMPED.SERVICE This part replaces 532174619. Price: $379.99 |
| 1 |
67-3420 |
NO. 3 PIPE ASSEMBLY Price: $83.77 |
| 2 |
532176554 |
DRAWBAR, 12GA Price: $37.99 |
| 2 |
67-3430 |
NUT Price: $4.57 |
| 3 |
70-8700 |
FUEL RETURN PIPE Price: $92.21 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 4 |
67-3440 |
GASKET Price: $7.12 |
| 5 |
110-3996 |
GAUGE-OIL LEVEL This part replaces 70-8880. Price: $108.61 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 6 |
93-3489 |
NOZZLE & HOLDER ASSY This part replaces 67-3380. Price: $570.51 |
| 7 |
67-3390 |
GASKET Price: $4.67 |
| 8 |
110-3994 |
GUIDE This part replaces 70-8870. Price: $15.67 |
| 9 |
532168336 |
DASH This part replaces 532171853. Price: $33.08 |
| 9 |
67-2300 |
GASKET Price: $3.40 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 10 |
67-2290 |
COVER Price: $18.48 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX Price: $9.99 |
| 11 |
67-2340 |
BOLT W/WASHER Price: $2.19 |
| 12 |
56-0020 |
EXPANSION PLUG Price: $14.38 |
| 13 |
532181719 |
PANEL DASH RH Price: $8.99 |
| 13 |
67-2280 |
GASKET Price: $8.62 |
| 14 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 14 |
67-2230 |
OIL SEAL Price: $83.03 |
| 15 |
67-2270 |
CASE Price: $79.65 |
| 16 |
67-2330 |
BOLT Price: $2.25 |
| 17 |
43-2570 |
GASKET-PUMP Price: $15.12 |
| 17 |
532185682 |
HOOD.PNT.STEEL.LASER.LT This part replaces 532187348. Price: $54.99 |
| 18 |
43-2550 |
FILTER-PUMP Price: $23.30 |
| 18 |
532184921 |
BUMPER.HOOD.LARGE.1.75" Price: $4.99 |
| 19 |
43-2560 |
GASKET-PUMP Price: $23.14 |
| 20 |
43-2580 |
MAGNET-PUMP Price: $12.24 |
| 21 |
53-8150 |
PUMP-FUEL Price: $680.19 |
| 22 |
67-2440 |
DISCONTINUED Price: Call Us |
| 23 |
67-2430 |
BRACKET Price: $156.42 |
| 24 |
67-2390 |
PLUG Price: $5.06 |
| 25 |
67-2350 |
PLUG Price: $2.53 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 26 |
67-2360 |
DISCONTINUED Price: Call Us |
| 27 |
67-2380 |
BUSHING Price: $3.80 |
| 28 |
532185292 |
GRILL/LEN.ASM.DL.HUSQ Price: $159.99 |
| 28 |
56-1230 |
OIL FILTER SHAFT Price: $14.76 |
| 30 |
42-9650 |
NUT-HEX, JAM Price: $0.70 |
| 30 |
532192813 |
FENDER W/OUT CUP HOLDER This part replaces 532180507. Price: $125.54 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 31 |
67-4340 |
SCREEN ASSEMBLY Price: $60.41 |
| 32 |
67-2370 |
BUSHING Price: $4.65 |
| 33 |
42-7190 |
DISCONTINUED Price: Call Us |
| 34 |
67-2260 |
IDLER SHAFT Price: $45.97 |
| 35 |
56-0220 |
DISCONTINUED Price: Call Us |
| 36 |
67-2210 |
PLUG Price: $3.72 |
| 37 |
56-0100 |
PLUG-DRAIN Price: $6.55 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR Price: $9.99 |
| 39 |
532407807 |
BRACKET PIVOT This part replaces 532174714. Price: $27.99 |
| 39 |
67-3370 |
BOLT W/WASHER Price: $3.08 |
| 40 |
108-3841 |
FILTER-OIL This part replaces 67-4330. Price: $10.81 |
| 41 |
75-5020 |
DISCONTINUED Price: Call Us |
| 42 |
67-3400 |
NO. 1 PIPE ASSEMBLY Price: $228.43 |
| 44 |
72-6950 |
OIL LEVEL GUAGE RETAIN. Price: $33.80 |
| 45 |
43-2710 |
O-RING Price: $6.47 |
| 46 |
70-8530 |
DISCONTINUED Price: Call Us |
| 47 |
218-579 |
TERMINAL-SPADE, MALE Price: $1.95 |
| 58 |
532150127 |
AIR DUCT P/L/LT Price: $13.99 |
| 60 |
872140606 |
Bolt RDHD SQNK 3/8-16 x 3/4 Price: $4.99 |
| 64 |
532154798 |
DASH LOWER Price: $17.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT Price: $7.99 |
| 143 |
532186689 |
BRACKET, SWAYBAR CHASSIS This part replaces 532154966. Price: $5.99 |
| 144 |
532175582 |
BRKT, FOOT REST Price: $4.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 166 |
532189747 |
SCREW.HI-LO#13-16X5/8 This part replaces 532171875. Price: $14.99 |
| 206 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 212 |
532183548 |
INSERT.LENS.REFLECTIVE Price: $9.99 |
| 258 |
532183379 |
LENS.HUSQ.LASER LT.CLEAR.RH This part replaces 532185214. Price: $8.99 |
| 259 |
532183378 |
LENS.HUSQ.LASER LT.CLEAR.LH This part replaces 532185213. Price: $8.99 |
| 260 |
532185429 |
COVER.LENS.HUSQ.( HAVE GRAY) Price: $3.99 |
| 261 |
532185433 |
INSERT GRILLE Price: $19.99 |
