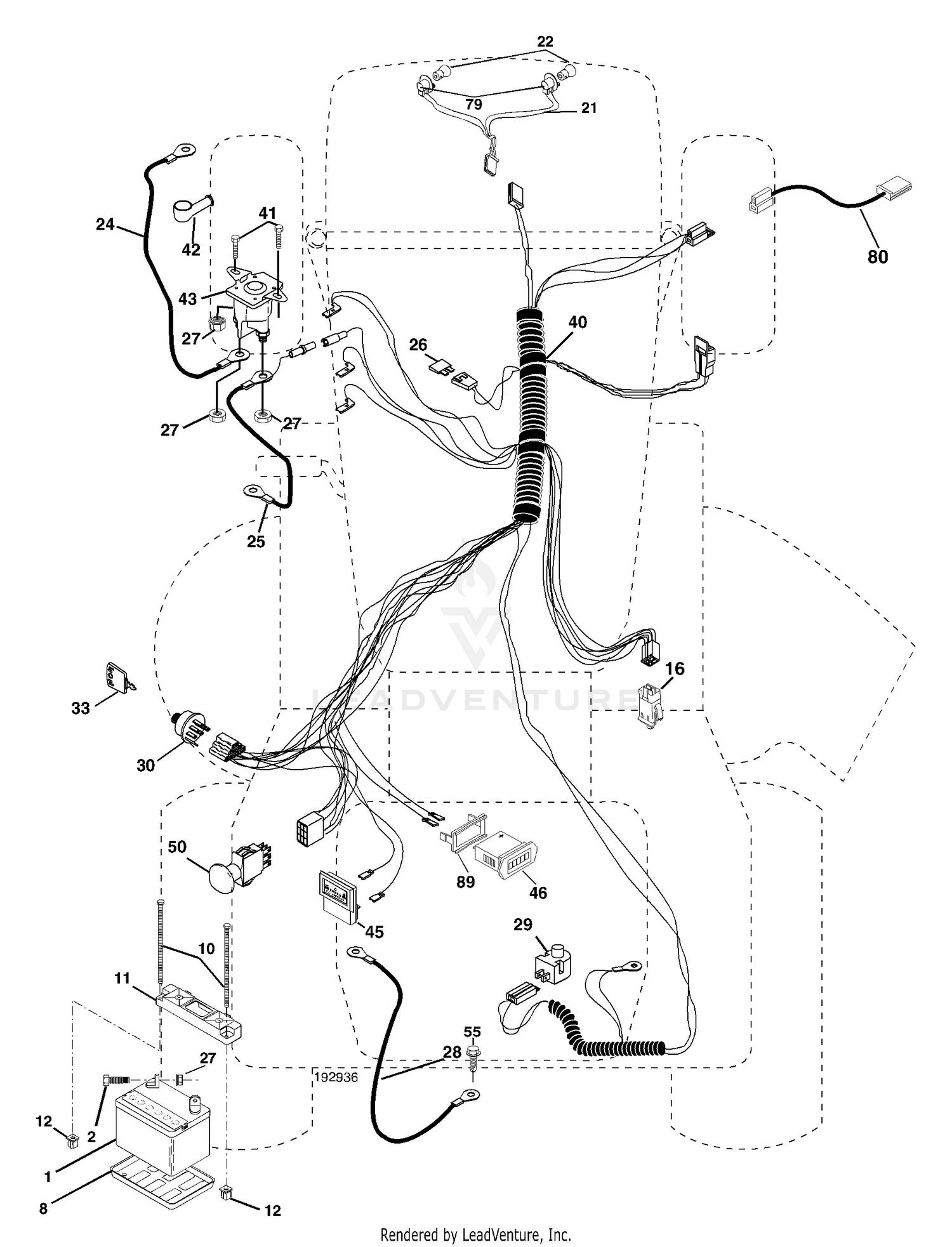

Electrical

Electrical

Parts (41)

RefPart NumberDescription
1 163465 Battery Price: Call Us
2 74760412 Bolt, Hex 1/4-20 x 3/4 Price: Call Us
8 7603J Tray, Battery Price: Call Us
10 112-7026 WHEEL BEARING CASE ASM This part replaces 98-9480. Price: $196.85
10 145211 Bolt, Btr Front 1/4-20 x 7-1/2 Price: Call Us
11 150109 Holddown Battery Front Mount Price: Call Us
12 145769 Nut, Push Nylon Battery Front 1/4 Price: Call Us
16 176138 Switch Interlock Price: Call Us
20 98-9484 BOLT-CASE, BEARING Price: $6.05
21 175688 Harness, Light Price: Call Us
22 4152J Light Bulb Price: Call Us
24 8860R Cable, Starter Price: Call Us
25 146148 Cable, Battery Price: Call Us
26 175158 Fuse Price: Call Us
27 73510400 Nut Keps Hex 1/4-20 unc Price: Call Us
28 145491 Cable, Ground Price: Call Us
29 121305X Switch, Seat Price: Call Us
30 131-6554 GASKET-CASE, BEARING This part replaces 98-9634. Price: $7.12
30 175566 Switch, Ignition Price: Call Us
33 140401 Key, Molded Price: Call Us
40 112-7046 COVER-CASE, BEARING This part replaces 98-9487. Price: $66.00
40 192936 Harness, Ignition Price: Call Us
41 17720408 Screw Thd Cut 1/4-20 x 1/2 Price: Call Us
42 131563 Cover, Terminal Price: Call Us
43 178861 Solenoid Price: Call Us
45 122822X Ammeter Price: Call Us
46 169635 Hourmeter Price: Call Us
50 112-0180 SEAL-OIL This part replaces 98-9483. Price: $58.48
50 174653 Switch, PTO Price: Call Us
55 17490508 Screw Thdrol 5/16-18 x 1/2 Price: Call Us
60 98-9635 GASKET-COVER, BEARING CASE Price: $12.61
70 98-9352 BOLT Price: $0.80
79 175242 Socket Asm bulb Twistlock Price: Call Us
80 146685 Harness Clutch EVX Price: Call Us
80 98-7568 BOLT Price: $0.84
90 99-8361 CASE-BEARING, MAIN Price: $222.76
95 98-9484 BOLT-CASE, BEARING Price: $6.05
100 98-9485 BOLT-CASE, BEARING Price: $22.80
110 99-8360 CASE-BEARING, MAIN Price: $103.70
120 98-9484 BOLT-CASE, BEARING Price: $6.05
130 105-3716 MAIN BEARING CASE ASM Price: $289.08
