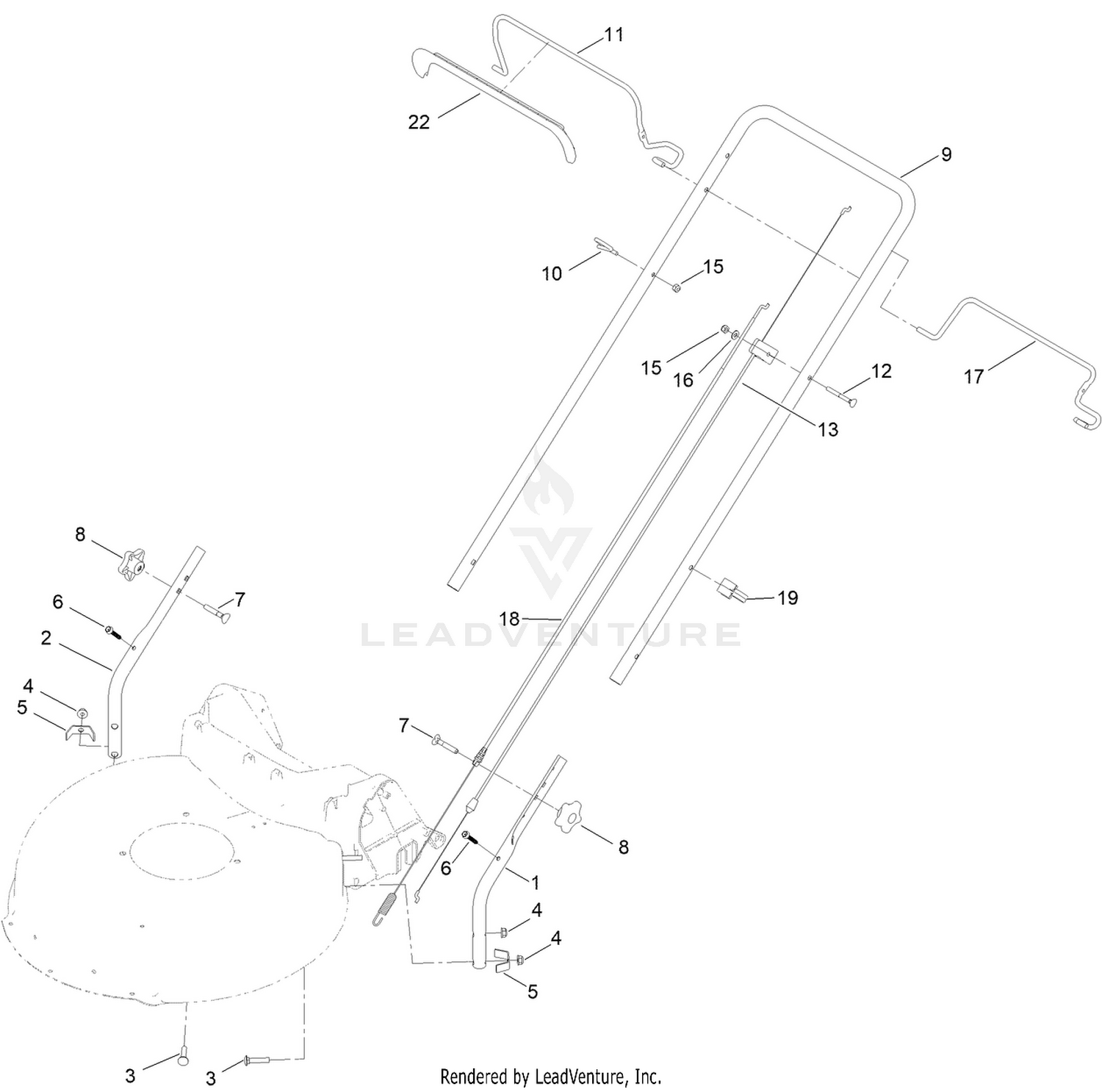

Handle Assembly
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 136-5923-05 | HANDLE-LOWER, LH Price: $45.99 |
| 2 | 136-5924-05 | HANDLE-LOWER, RH Price: $22.99 |
| 3 | 139-1707 | SCREW-CARR Price: $0.69 |
| 4 | 138-8401 | NUT-HF Price: $0.49 |
| 5 | 127-0699 | BRACKET-CHUTE Price: $1.79 |
| 6 | 130-6659 | SCREW-FLANGE, SERRATED Price: $1.29 |
| 7 | 137-3107 | SCREW-HANDLE Price: $1.69 |
| 8 | 117-5976 | KNOB-HANDLE Price: $2.49 |
| 9 | 140-3914-05 | HANDLE-UPPER Price: $36.99 |
| 10 | 86-9671 | GUIDE-ROPE Price: $3.99 |
| 11 | 138-3270-03 | BAIL-BRAKE Price: $13.99 |
| 12 | 139-1701 | SCREW-HANDLE Price: $2.09 |
| 13 | 112-8818 | CABLE-BRAKE Price: $33.99 |
| 15 | 137-3094 | NUT-HEX Price: $0.39 |
| 16 | 139-1699 | WASHER-FLAT Price: $0.89 |
| 17 | 137-4799-03 | BAIL-TRACTION Price: $15.99 |
| 18 | 127-0733 | CABLE-TRACTION Price: $17.99 |
| 19 | 114-7988 | GUIDE-CABLE Price: $2.59 |
